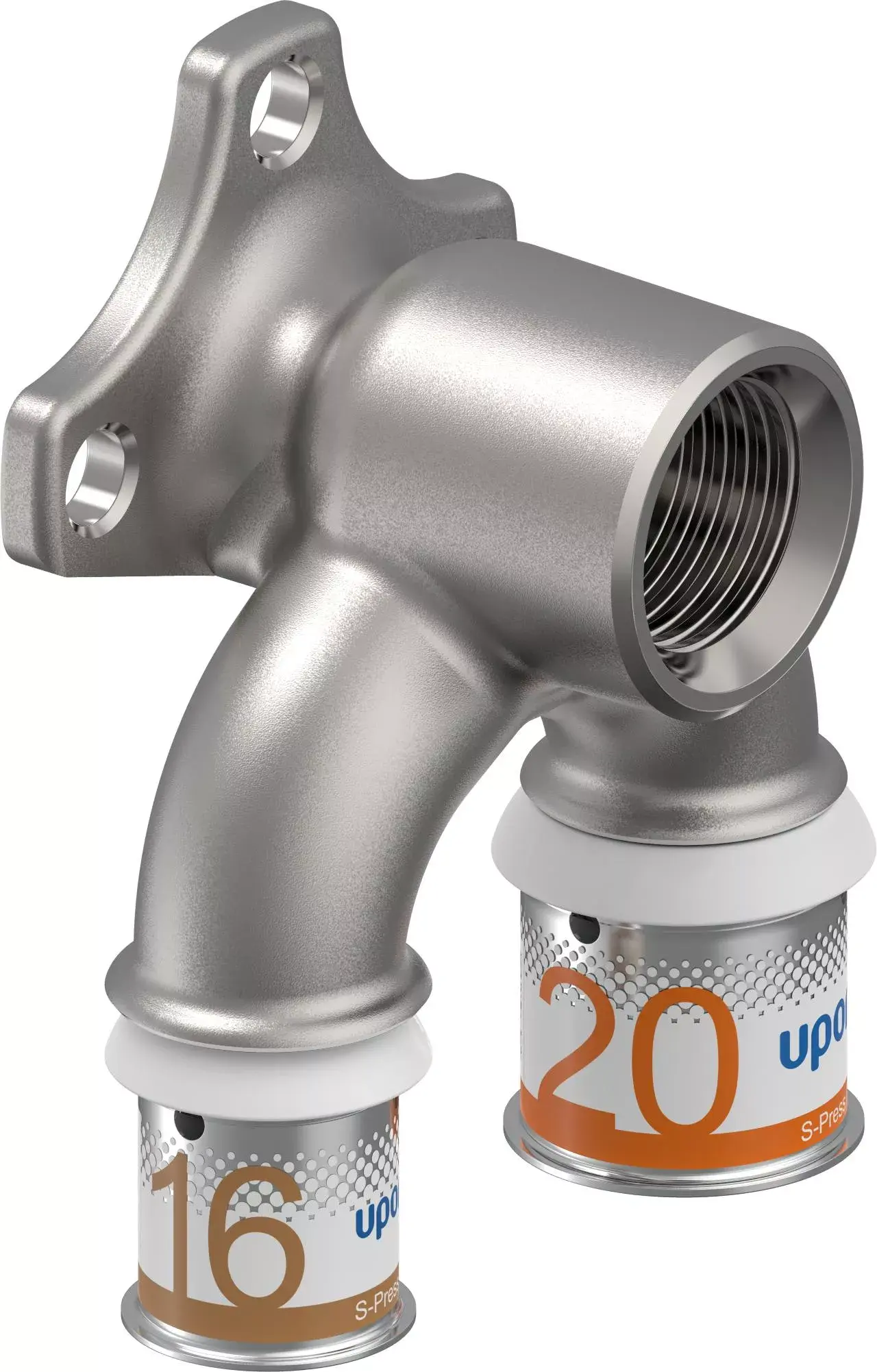

Uponor S-Press PLUS U-tap elbow 16-Rp1/2"FT-20
Item details
Dimensions
| Item Unit Weight | 0,246 |
|---|---|
| Item Unit Width | 69 |
| Item Unit Length | 83 |
| Item_UOM | pce |
| Item Unit Height | 43 |
Measurements
| Length (l3) | 20 |
|---|---|
| Z2 | 35,7 |
| Female thread Rp | 1/2 |
| Z Measurement b | 45 |
| Z4 | 8 |
| Length (l2) | 57 |
| z1 | 35,7 |
| Length (l1) | 55,5 |
| Z Measurement k | 40 |
Packaging
| Packaging GTIN PL1 | 06414905468881 |
|---|---|
| Packaging Height PL4 | 678 |
| Packaging Type PL4 | Pallet |
| Packaging Weight PL4 | 275,52 |
| Packaging GTIN PL4 | 06414905499816 |
| Packaging Length PL1 | 176 |
| Packaging Volume PL1 | 0,00211464 |
| Packaging Width PL1 | 135 |
| Packaging Quantity PL4 | 960 |
| Packaging Height PL1 | 89 |
| Packaging Type PL1 | Base_Box |
| Packaging Weight PL1 | 1,31 |
| Packaging Quantity PL1 | 5 |
| Packaging Length PL4 | 1200 |
| Packaging Volume PL4 | 0,65088 |
| Packaging Width PL4 | 800 |
Product code
| Item no GTIN | 06414905219483 |
|---|---|
| Item no EAN | 6414905219483 |
| Item no GF | 35001070632 |
Product Name
| Product Type Windchill | BLDE Finished Good |
|---|
