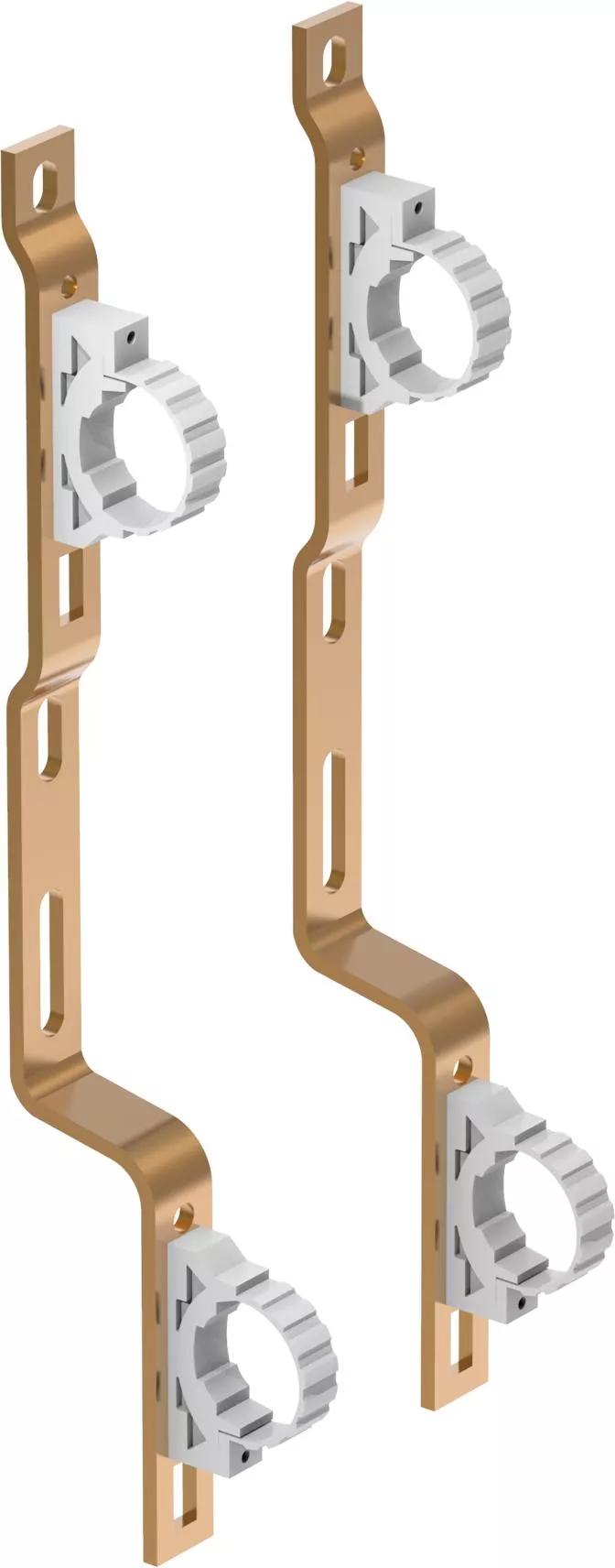

Uponor Uni-C bracket SH 3/4" 1"
Item details
Dimensions
| Item Unit Width | 25 |
|---|---|
| Item Unit Weight | 0,41 |
| Item Unit Length | 323 |
| Item_UOM | set |
| Item Unit Height | 8 |
Measurements
| Z Measurement b | 20 |
|---|---|
| Z Measurement h1 | 30,2 |
| Z Measurement w | 322 |
| Wall thickness_s | 4 |
| Z Measurement h | 78,7 |
| Z Measurement k2 | 15,9 |
| Z Measurement b2 | 63 |
| Z Measurement k1 | 145 |
| Z Measurement b1 | 207 |
| Z Measurement h2 | 60,3 |
Packaging
| Packaging GTIN PL3 | 06414905400416 |
|---|---|
| Packaging Length PL3 | 340 |
| Packaging Volume PL3 | 0,0281435 |
| Packaging Width PL3 | 385 |
| Packaging GTIN PL1 | 06414905400409 |
| Packaging Length PL1 | 325 |
| Packaging Volume PL1 | 0,00008775 |
| Packaging Width PL1 | 27 |
| Packaging Quantity PL3 | 25 |
| Packaging Height PL3 | 215 |
| Packaging Type PL3 | Box |
| Packaging Weight PL3 | 11,29 |
| Packaging Quantity PL1 | 1 |
| Packaging Height PL1 | 10 |
| Packaging Type PL1 | Plastic_Bag |
| Packaging Weight PL1 | 0,42 |
Product code
| Item no EAN | 6414905516476 |
|---|---|
| Item no GTIN | 06414905516476 |
Product Name
| Product Type Windchill | BLDE Finished Good |
|---|
