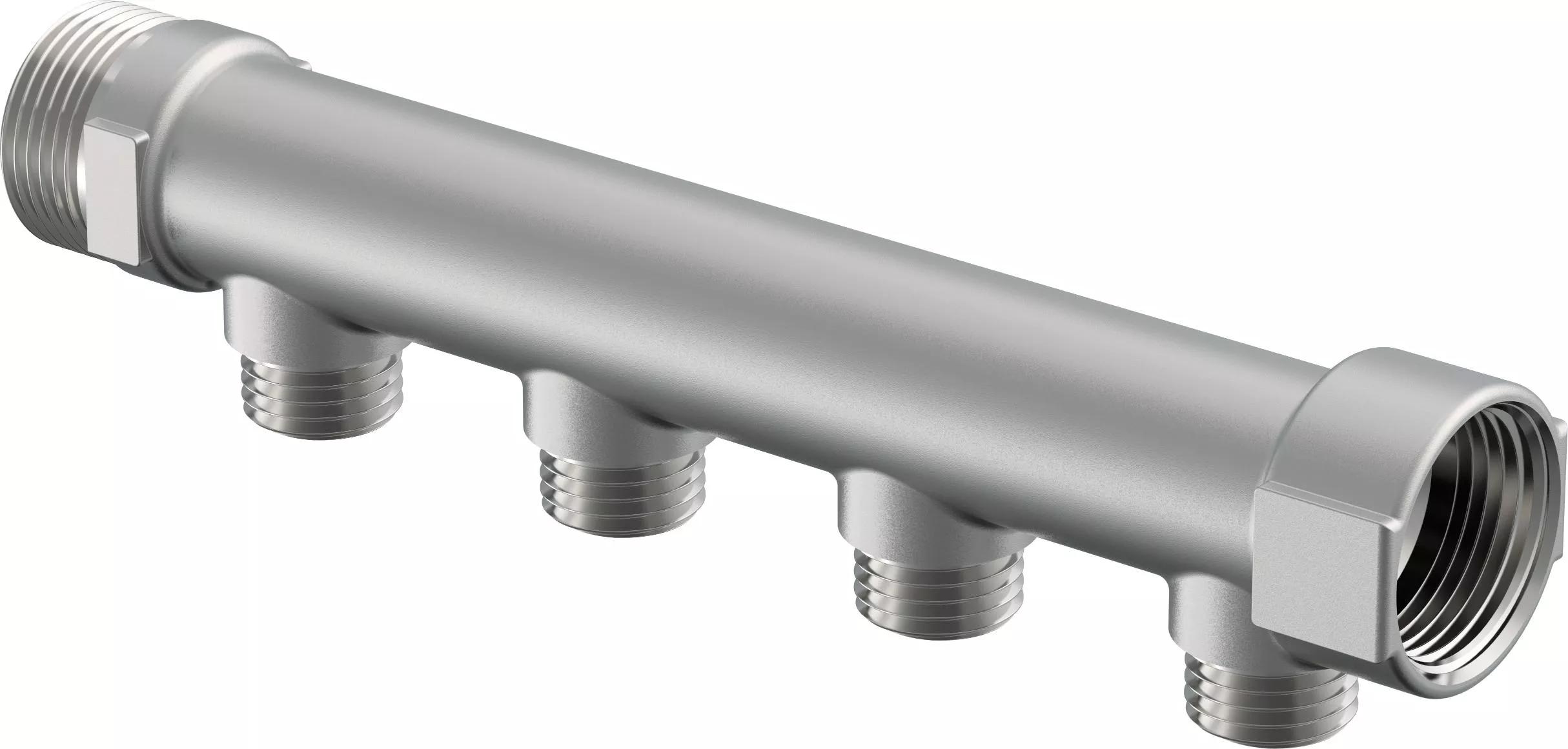

Uponor Uni-C manifold male female thread S 1"MT/FT 4x1/2"MT
Item details
Dimensions
| Item Unit Width | 50 |
|---|---|
| Item Unit Weight | 0,596 |
| Item_UOM | pce |
| Item Unit Height | 38 |
| Item Unit Length | 220 |
Measurements
| Cylindric_thread_G1 | 1 |
|---|---|
| LENGTH_L | 220 |
| Z3 | 20,8 |
| Cylindric_thread_G | 1 |
| Length (l3) | 30,7 |
| Z2 | 14 |
| Length (l1) | 41,5 |
| Z Measurement b | 50 |
| Cylindric thread G2 | 1/2 |
| Length (l2) | 29 |
| z1 | 26 |
Packaging
| Packaging GTIN PL4 | 06414905258727 |
|---|---|
| Packaging Length PL4 | 1200 |
| Packaging Volume PL4 | 0,5184 |
| Packaging Width PL4 | 800 |
| Packaging GTIN PL1 | 06414905258703 |
| Packaging Length PL1 | 225 |
| Packaging Volume PL1 | 0,00045 |
| Packaging Width PL1 | 50 |
| Packaging Quantity PL1 | 1 |
| Packaging Height PL1 | 40 |
| Packaging Type PL1 | Base_Box |
| Packaging Weight PL1 | 0,625 |
| Packaging Quantity PL4 | 679 |
| Packaging Height PL4 | 540 |
| Packaging Type PL4 | Pallet |
| Packaging Weight PL4 | 433,731 |
Product code
| Item no EAN | 4021598701090 |
|---|---|
| Item no GTIN | 04021598701090 |
| Item no VVS | 045466004 |
Product Name
| Product Type Windchill | BLDE Finished Good |
|---|
