Uponor S-Press adapter
- Made of tin plated brass - Contoured aluminium sleeve - With copper pipe 15 x 1mm - EN 1057 - The connection of the plated copper pipe can be made using a standard BS EN 1254 compression type fitting, or a compatible metal press connection.
Item details
Documents
Technical manuals
Approval Certificate
Installation Report MLC leak test report TW water (1120119)
Installation Report MLC flushing protocol TW water (1120120)
UPONOR CER MLC SYS MECH WRAS 2010907 GB EN (1119612)
About
Specification
- Tin-plated brass or PPSU - With fixed press sleeve - Stop ring - Colour code - Test safety - Male and female threads to BS EN 10226-1
Application
Tested/approved according to BS EN ISO 21003 Multilayer piping systems for hot and cold water installations inside buildings for application class 1,2,4,5/10barDomestic water services: The permanent operating temperature from 20°C to 70°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 95°C for a period of 100 hours in the operating life time. Domestic cold water services : where the water temperature does not exceed 20°C at a maximum permanent operating pressure of 16bar.Heating: The permanent operating temperature ranges up to 80°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 100°C for a period of 100 hours in the operating life time.
Certification
UK Reg4 approval - WRAS or - KIWA to meet the requirements of the Water Supply (Water Fittings) Regulations 1999
Product drawings

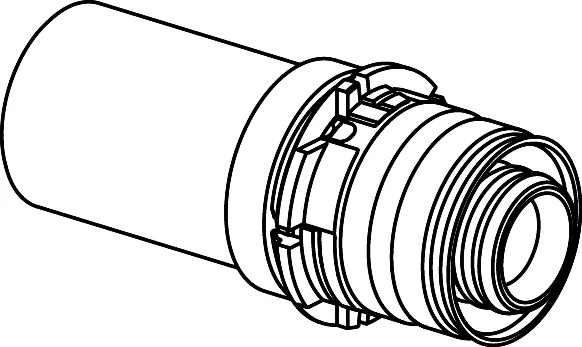

Label drawings

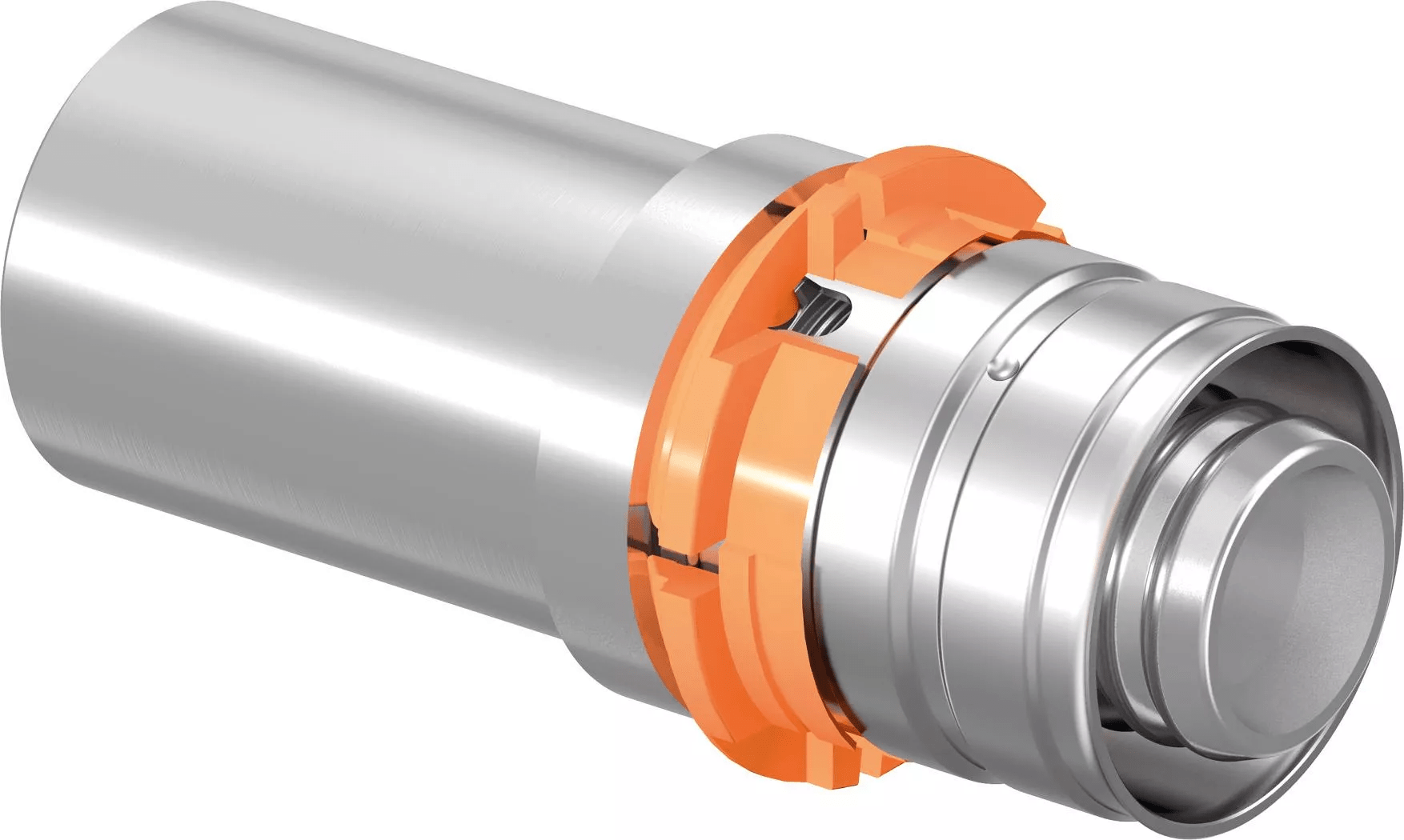

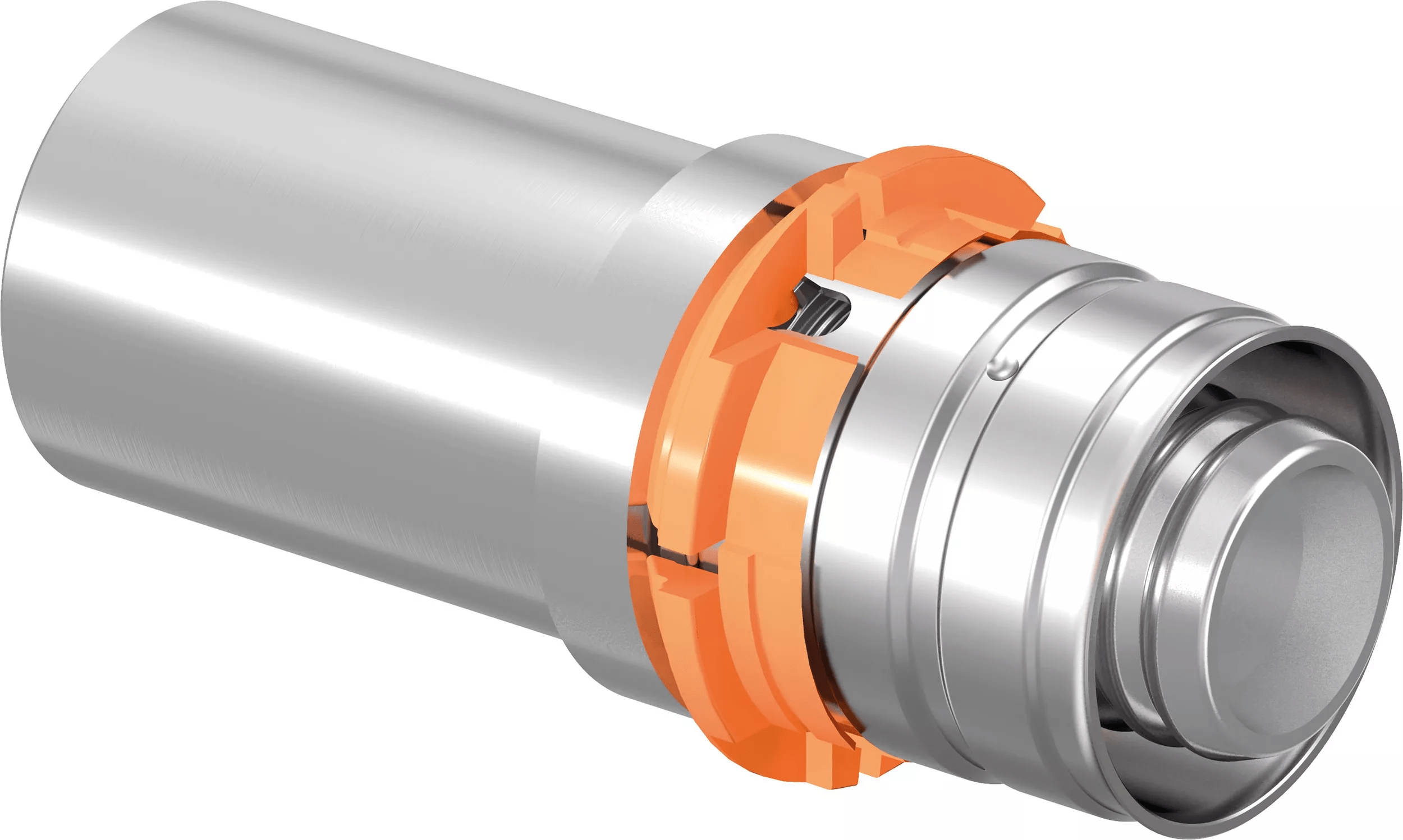

Rendered

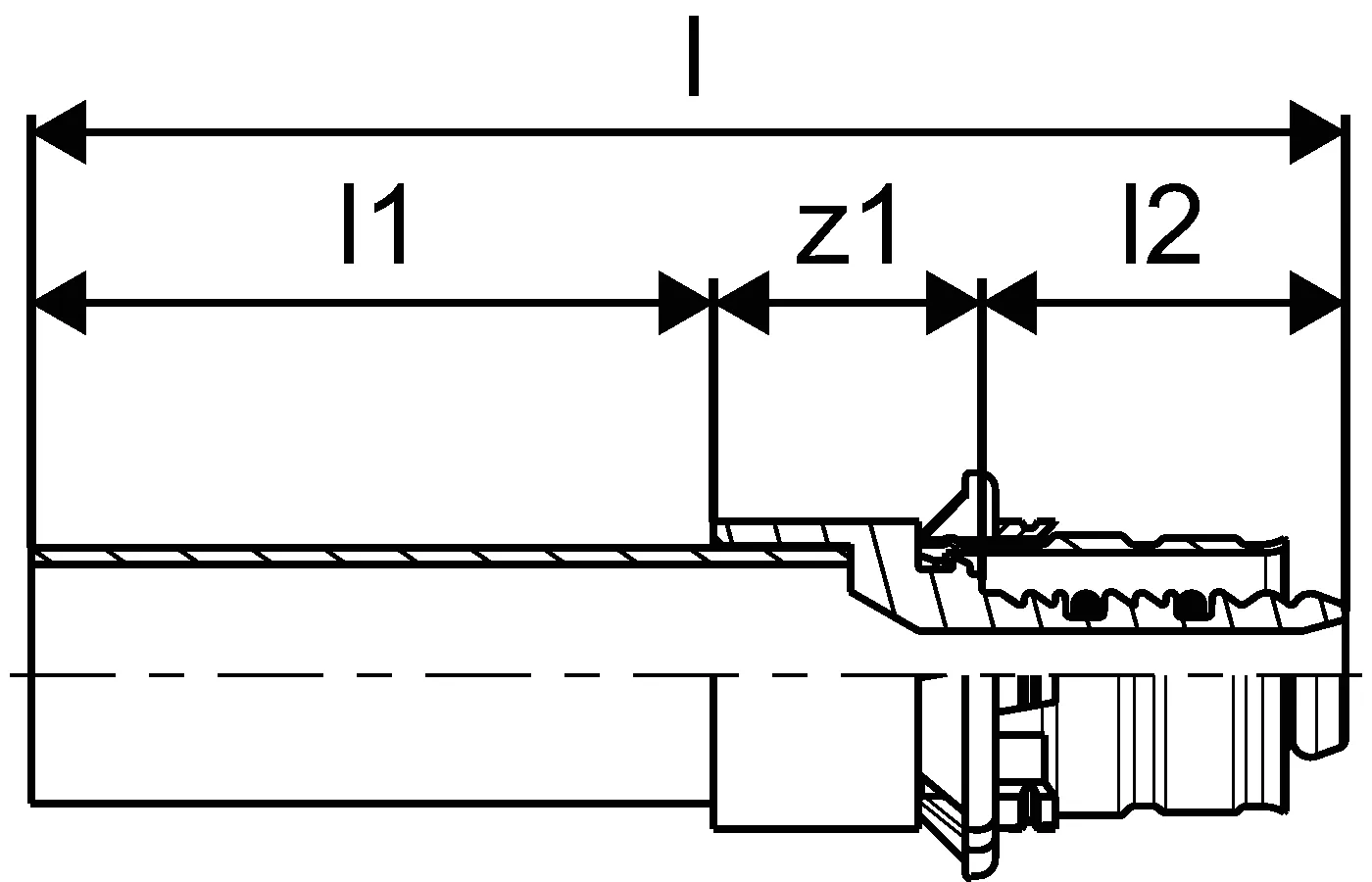

Z-drawing
