GF Malleable Fittings socket reduced 240

- Malleable cast iron
- Socket reduced
- ISO/EN M2

Item details

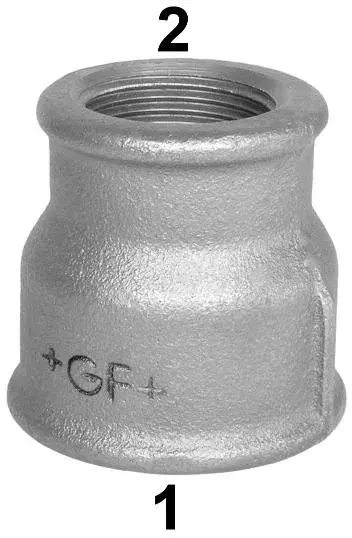

1153693 / - / -

GF Malleable Fittings socket reduced 240 1 1/4 - 3/8 B

1153726 / - / -

GF Malleable Fittings socket reduced 240 1 1/4 - 3/8 G

1153694 / - / -

GF Malleable Fittings socket reduced 240 1 1/4 - 1/2 B

1153727 / - / -

GF Malleable Fittings socket reduced 240 1 1/4 - 1/2 G

1153695 / - / -

GF Malleable Fittings socket reduced 240 1 1/4 - 3/4 B

1153728 / - / -

GF Malleable Fittings socket reduced 240 1 1/4 - 3/4 G

1153696 / - / -

GF Malleable Fittings socket reduced 240 1 1/4 - 1 B

1153729 / - / -

GF Malleable Fittings socket reduced 240 1 1/4 - 1 G

1153697 / - / -

GF Malleable Fittings socket reduced 240 1 1/2 - 1/2 B

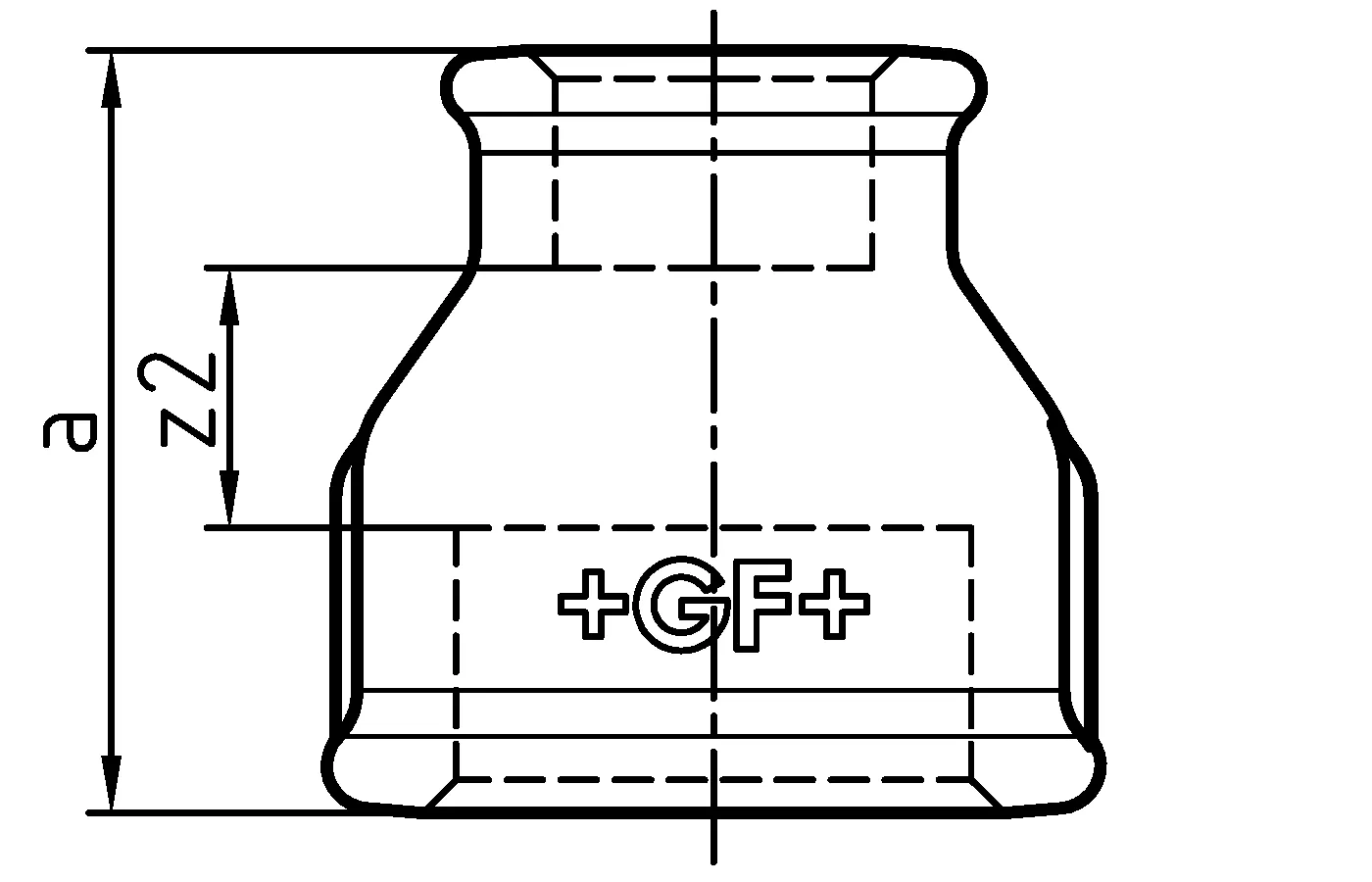

1153730 / - / -

GF Malleable Fittings socket reduced 240 1 1/2 - 1/2 G

1153698 / - / -

GF Malleable Fittings socket reduced 240 1 1/2 - 3/4 B

1153731 / - / -

GF Malleable Fittings socket reduced 240 1 1/2 - 3/4 G

1153699 / - / -

GF Malleable Fittings socket reduced 240 1 1/2 - 1 B

1153732 / - / -

GF Malleable Fittings socket reduced 240 1 1/2 - 1 G

1153700 / - / -

GF Malleable Fittings socket reduced 240 1 1/2 - 1 1/4 B

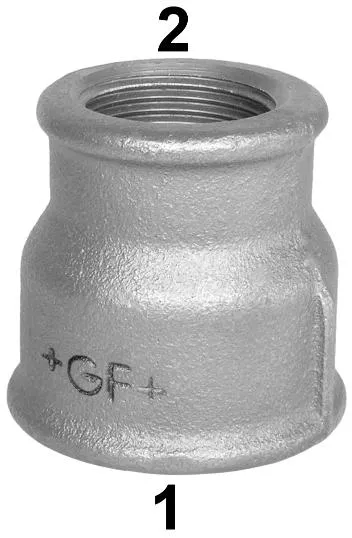

1153733 / - / -

GF Malleable Fittings socket reduced 240 1 1/2 - 1 1/4 G

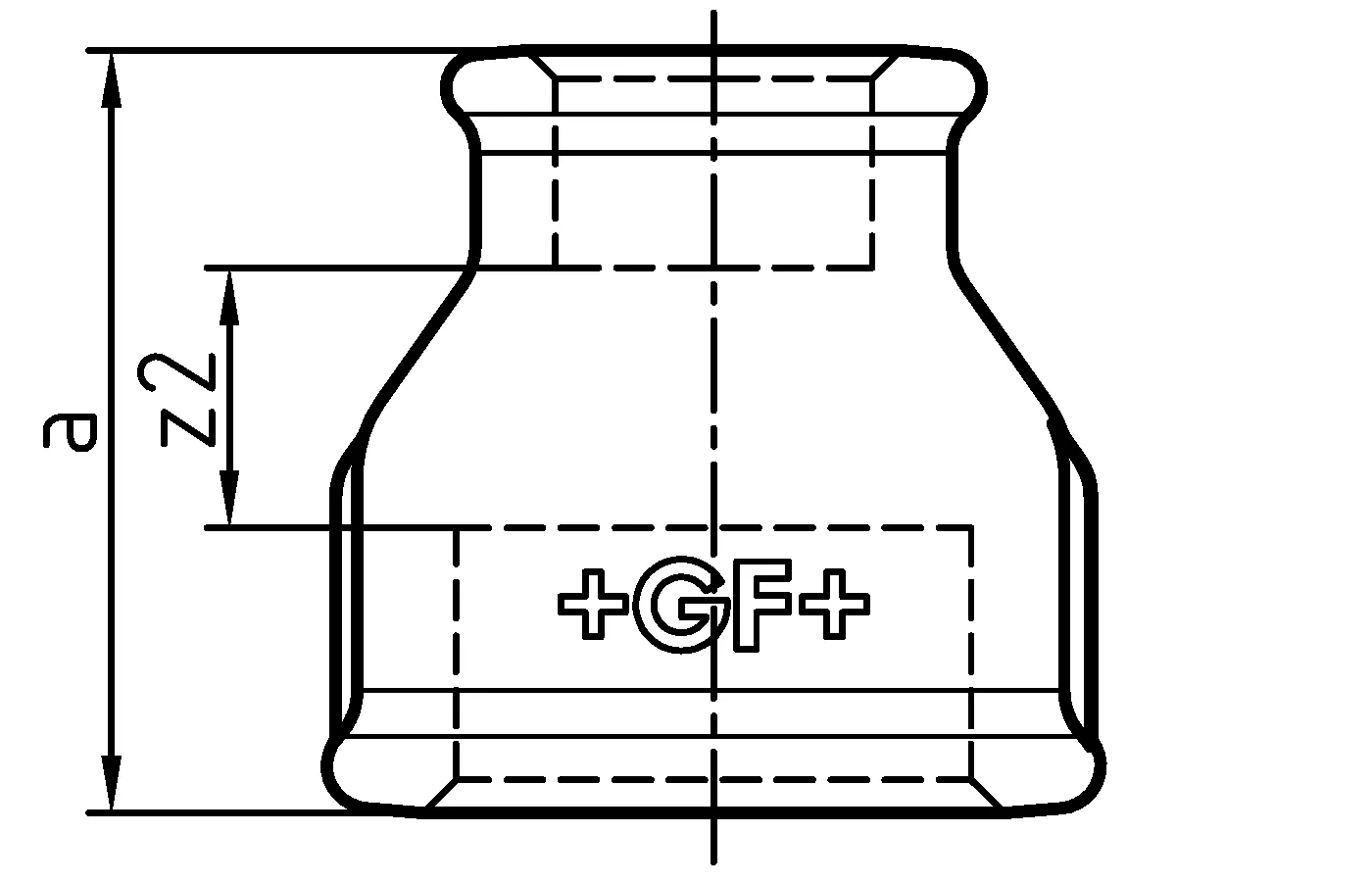

1153701 / - / -

GF Malleable Fittings socket reduced 240 2 - 1/2 B

1153702 / - / -

GF Malleable Fittings socket reduced 240 2 - 3/4 B

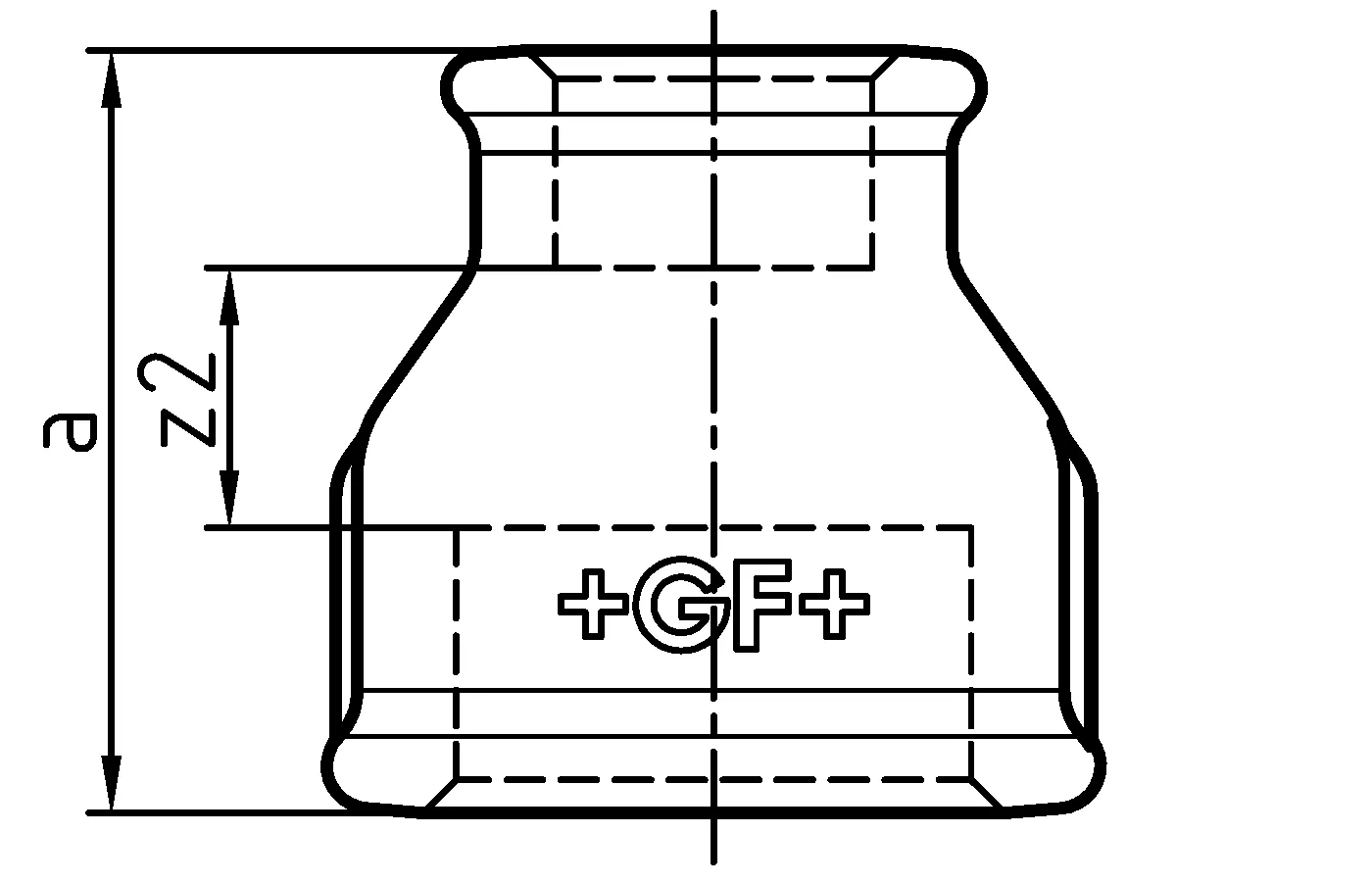

1153735 / - / -

GF Malleable Fittings socket reduced 240 2 - 3/4 G

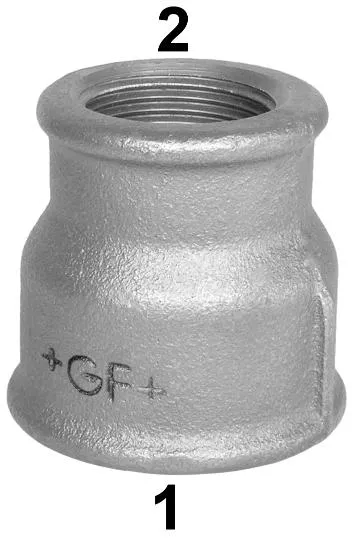

1153703 / - / -

GF Malleable Fittings socket reduced 240 2 - 1 B

1153736 / - / -

GF Malleable Fittings socket reduced 240 2 - 1 G

1153704 / - / -

GF Malleable Fittings socket reduced 240 2 - 1 1/4 B

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
