Drinking water delivery
MLC Uni Pipe & SAC Uni Pipe PLUS
Uponor Uni Pipe - the way forward for hygienic plumbing installations
Uponor UK offer two systems within its Uni Pipe range for safe and reliable drinking water installations:
- Multi-Layer Composite (MLC, Uni Pipe)- with over 3.8 billion metres of MLC sold since 1982, you can rest assured that this solution which combines the benefits of a metal and plastic pipe in one is the ideal choice for your next plumbing installation. The key features of this product include a 100% diffusion tight aluminium core for enhanced stability and a flexible polyethylene outer case.
- Seamless Aluminium Composite (SAC, Uni Pipe Plus)- developing the MLC range even further, Uponor's central innovation team in Germany have created the world's first composite pipe with a seamlessly extruded aluminium layer- SAC. This essentially ensures it is more flexible and bendable in tight installation situations in comparison to MLC. Other benefits include:
- Available as straight lengths and coils
- Reduced installation times
- Less components required, which reduces costs
- Uni Pipe Plus straight lengths feature a special aluminium layer that is more rigid than conventional MLC
- Provides a visually attractive, on-wall mounting solution
Pre-insulated MLC pipe is also available on request for special projects
Application areas:
Tap water installation Radiator connectionSpecification:
Uni Pipe and Uni Pipe Plus
- SAC 16 - 32 mm
- MLC 40 - 110 mm
- Pre-insulated MLC 16 - 25 mm
- S-Press PLUS 16 - 32 mm

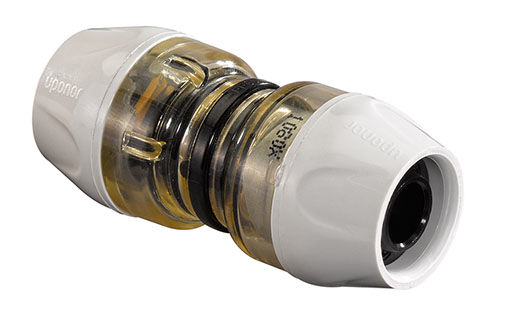

- RTM 16 - 32 mm
- S-Press 40 - 75 mm

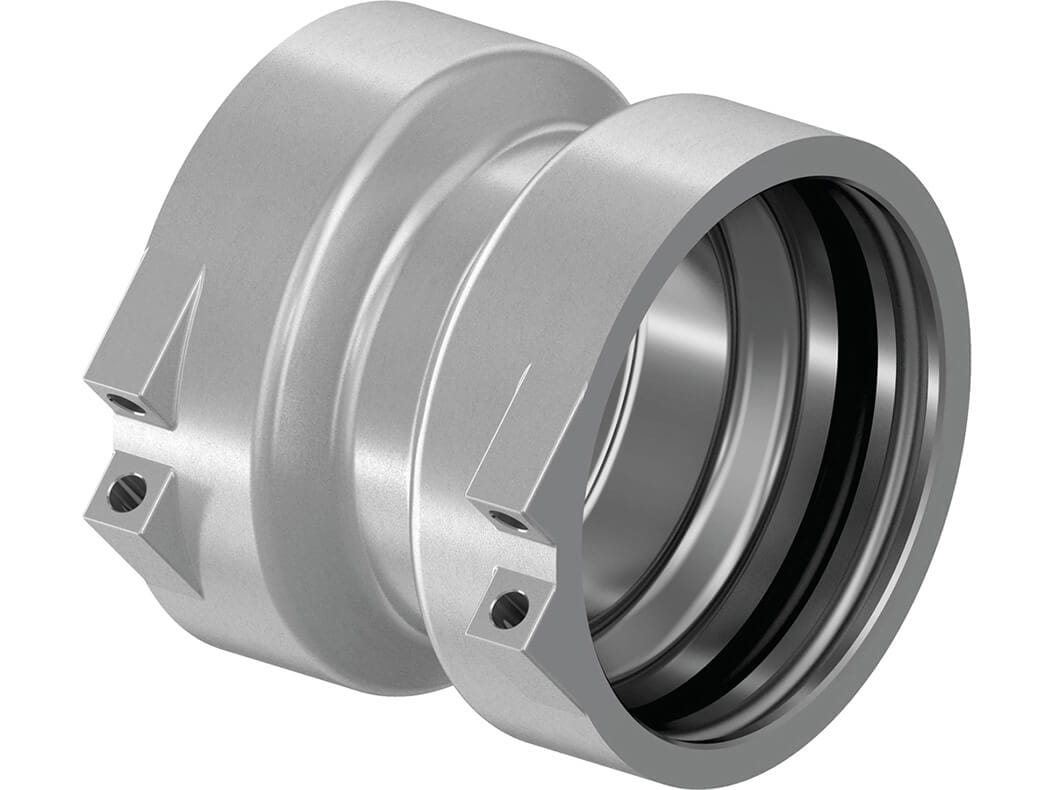

- Modular riser fittings 63 - 110 mm

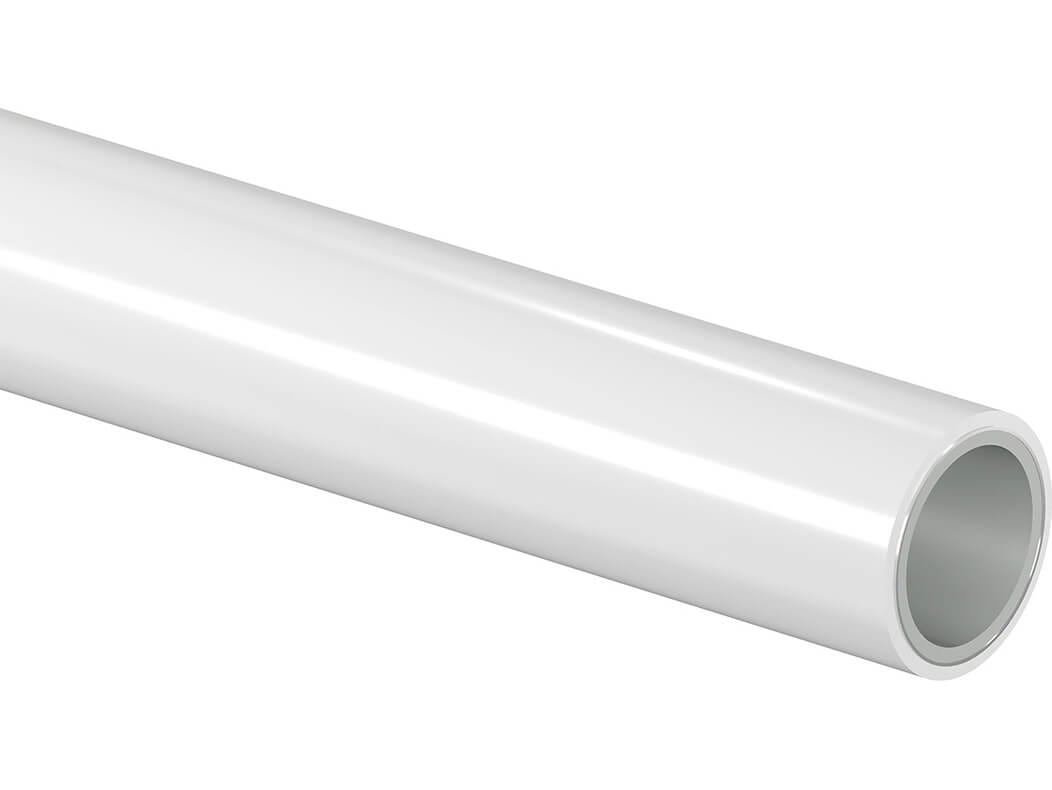

Uponor MLC- combines the benefits of a metal and plastic pipe
- Available in dimension 16 - 110 mm
- 100 % oxygen diffusion tight multilayer pipe and corrosion resistant
- Easy handling
- Low weight
- High inherent stability and bend flexibility
- Low linear expansion
- Excellent hydrostatic stress performance
- Low pressure drop in the pipes due to large internal dimensions
Uponor SAC - for fast installations
- Up to 40 % narrower bending radius compared to conventional multilayer pipes
- 0 % adjustments - the pipe retains the shape perfectly after bending
- Up to 15 % less fittings thanks to the higher bending ability
- 100 % backward compatible with Uponor's MLC pipes and S-Press connectors
- Hygienic pipes that meet drinking water requirements and guidelines

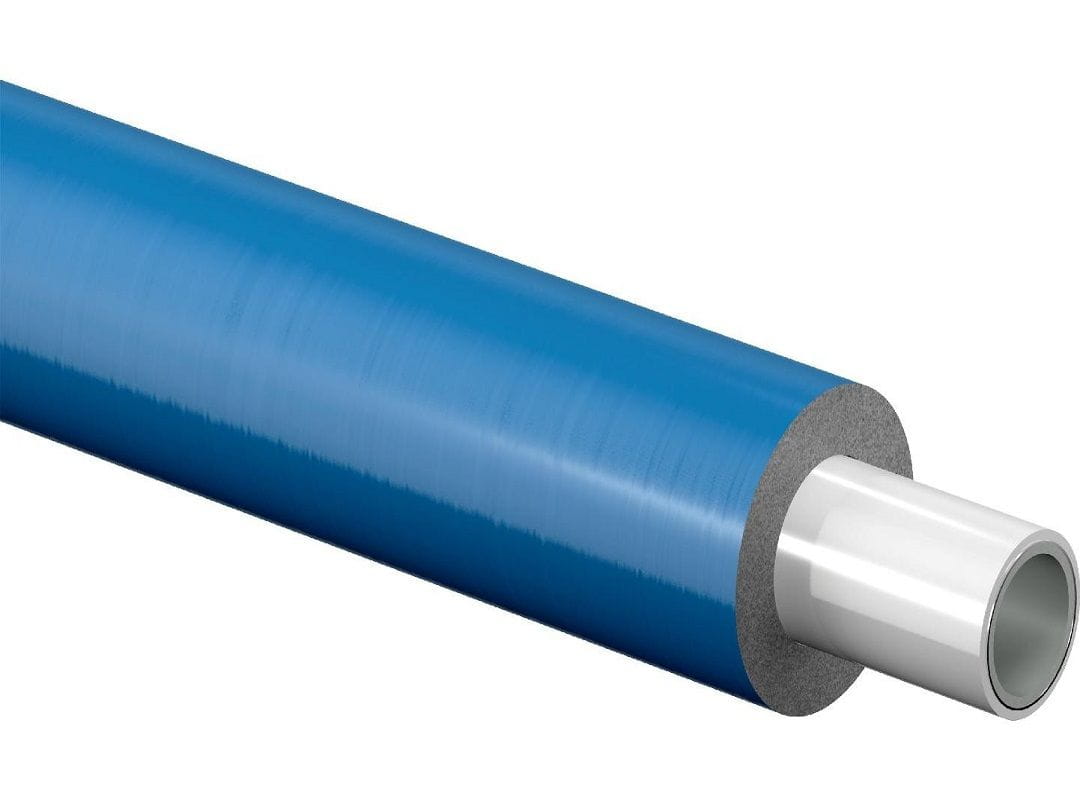

Uponor Pre-insulated MLC pipe
- Pre-insulated pipe with insulation foam manufactured to EN 14313.
- Insulation foam fire class BL-S2-D0 to BS EN13501-1. Combined assembly (pipe, insulation & PE-LD foil) fire class E to BS EN13501-1
- Colour coded in red and blue

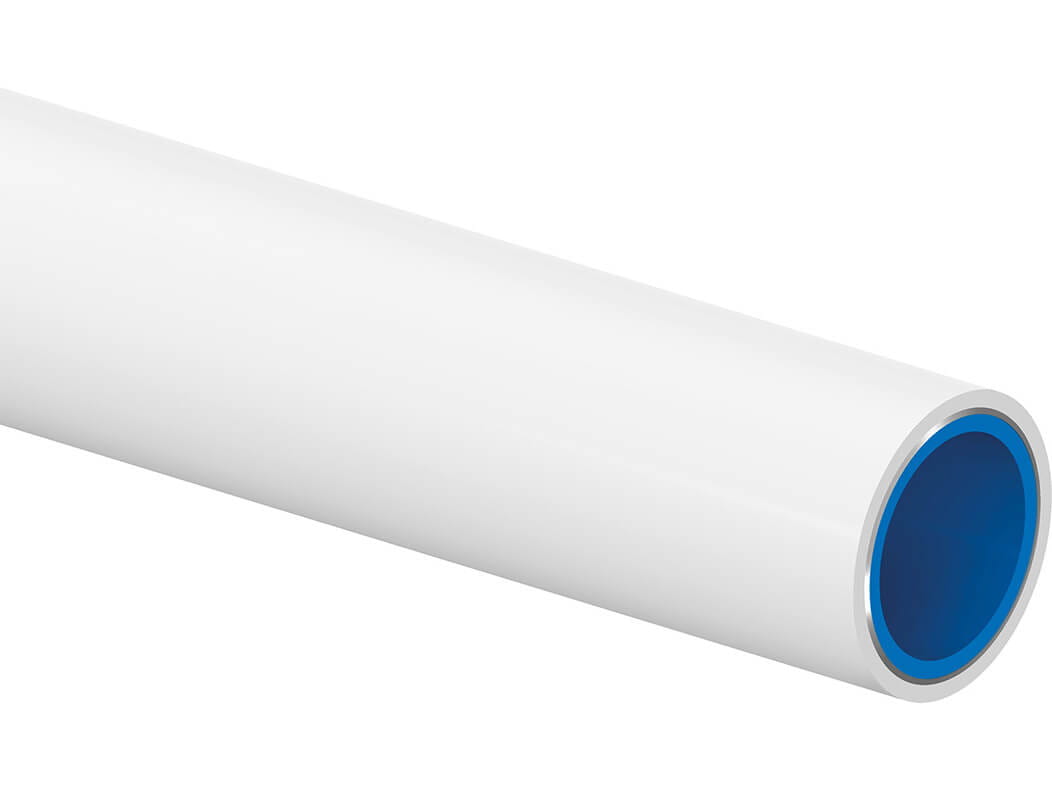

Uni Pipe Plus Multilayer pipe
- Check out this video for an introduction to Uponor Uni Pipe Plus
Creating connections in drywall
- Shows connections in drywall with the Uponor Smart Aqua wall duct S-Press
- Example of wooden and plasterboard construction

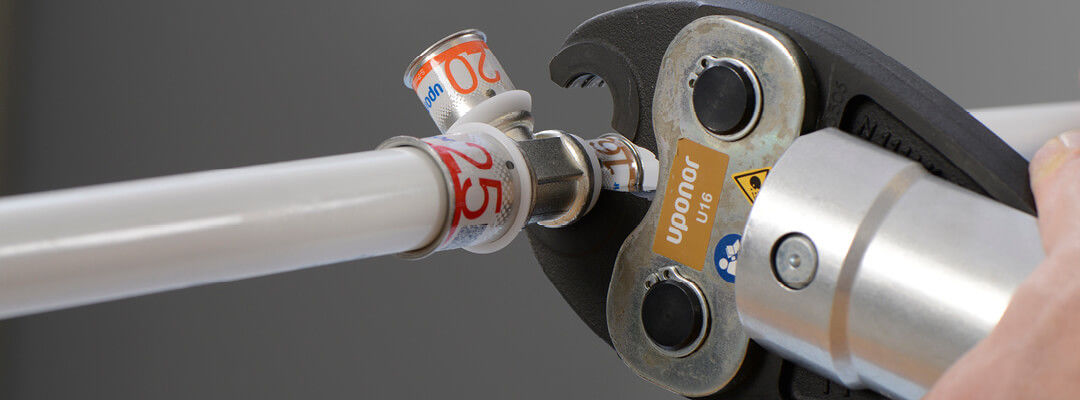

Uponor S-Press fittings

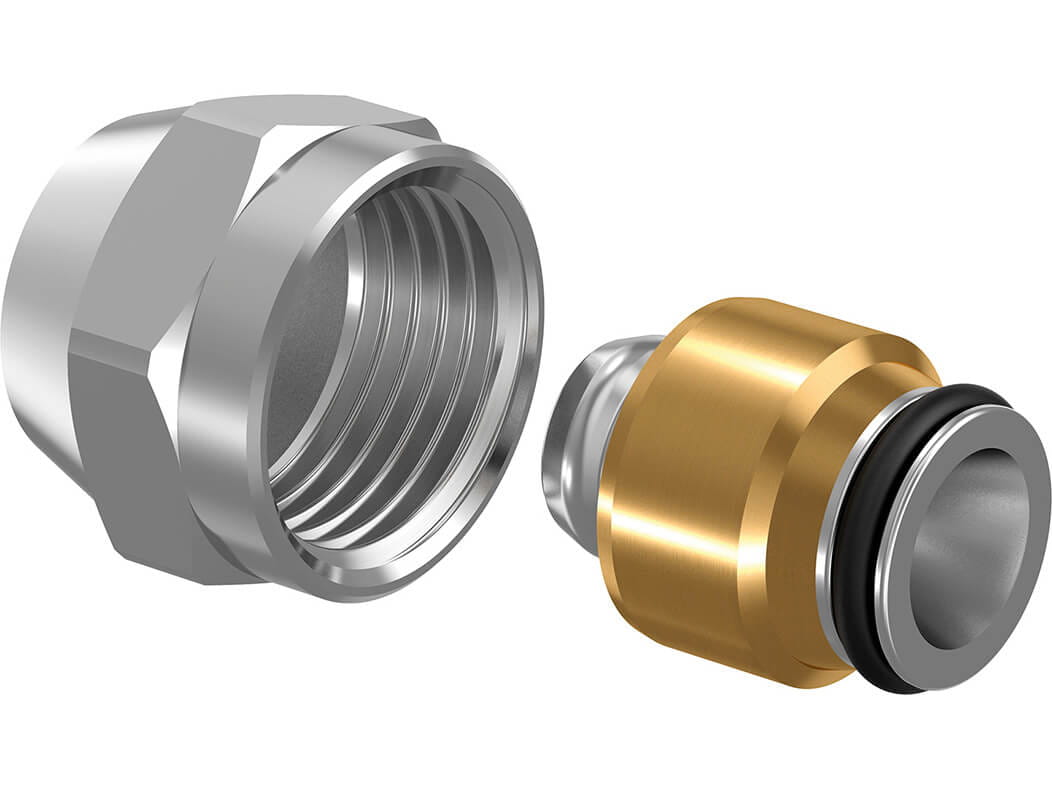

Other Uponor Uni Pipe Plus fittings
Brochures related to the Uni Pipe Plus System
Uponor plumbing systems and hygiene installation
Salesfolder
S-Press Brochure

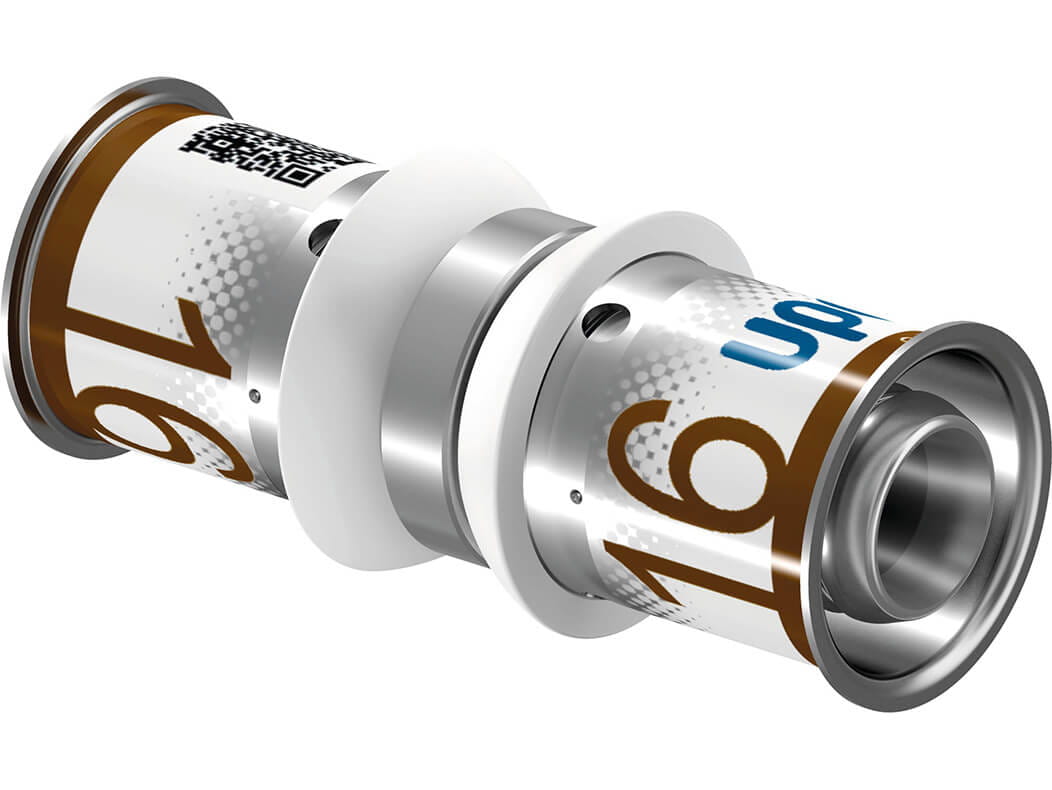

Learn more about our new range of composite fittings: S-Press Plus
Uni Pipe PLUS
The new innovation in MLCP pipes. Contains a seamless aluminium layer for improved workability
Uponor MLCP Sales Guide
Learn more about our Multi Layer Composite Pipe solution
Uponor S-Press composite 63 and 75mm new
Learn more about the extension to the S Press range
Uponor S-Press fitting PPSU in dimensions 40 – 75 mm
Sales folder

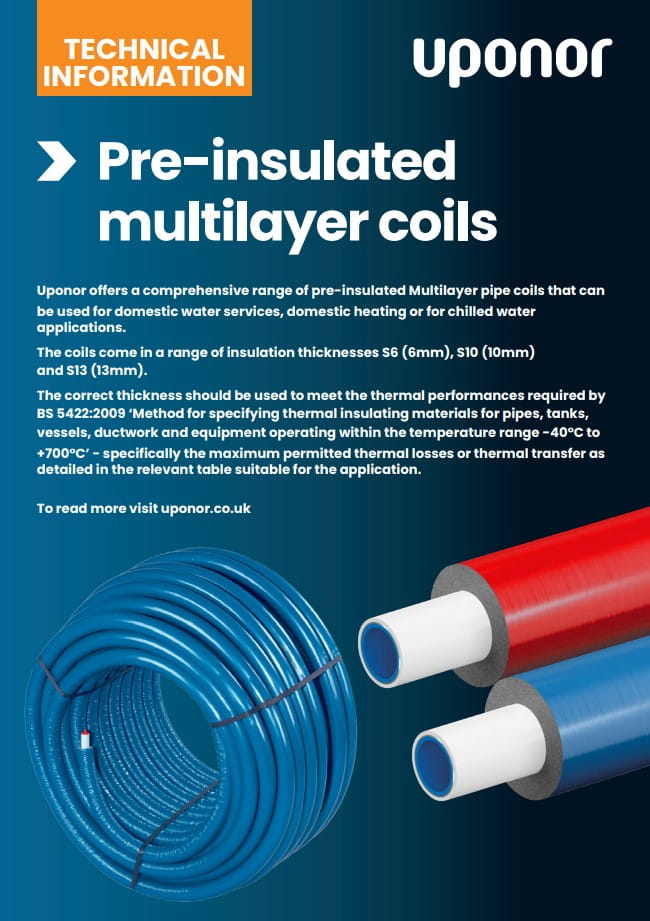

Pre-insulated multilayer coils
