76 B0000086896

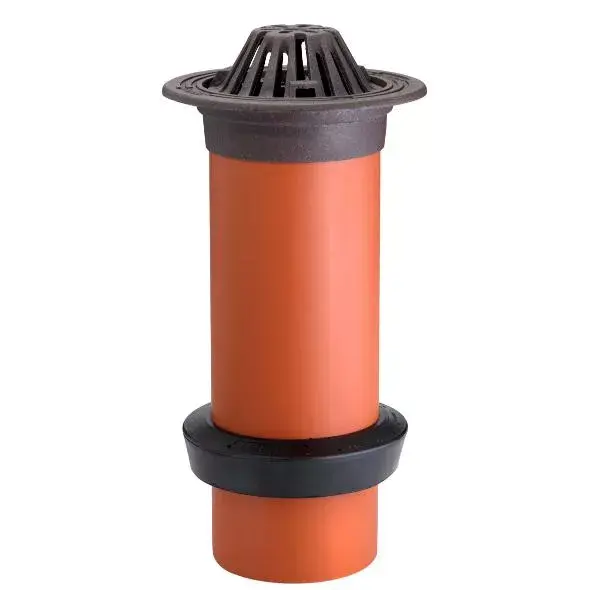

CHAMBER TELESCOPE PIPE 400/315 0,85M L65D 40TN GRATED DOME COVER SET
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Outer Diameter_do | 315 mm |
| Outer Diameter_do1 | 485 mm |
| Z-measurement h | 988 mm |
| Z-measurement h1 | 890 mm |
Packaging
| Packaging Quantity 1 | 5 |
|---|---|
| Packaging Quantity 4 | 5 |
