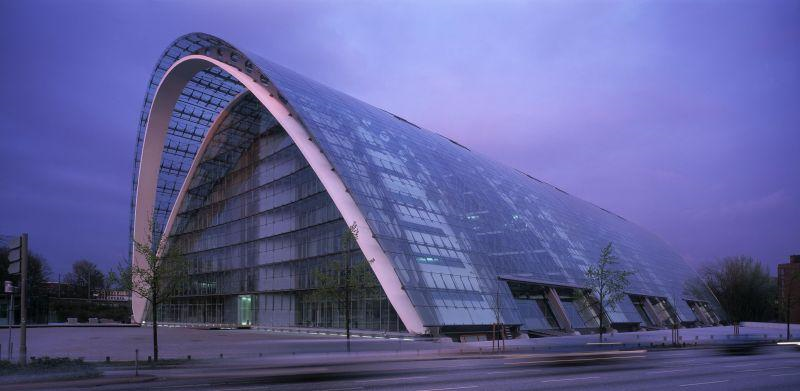

Berliner Bogen, Hamburg, Germany
The modern office building Berliner Bogen has been designed as a house-within-a-house. Inside the building one finds a massive component whose ceiling panels are suspended from the steel arches that cover the entire space. The Berliner Bogen is encased in a glass shell of 14,000 sq. m. in a crest-like shape. The entrance is found here, which provides access to the maintenance installations, such as work platforms and gardening equipment, which are designed as conservatories. From the central section, eight trapezoidal transverse sections fan out. They lead to the outer shell of the building. The conservatories between the eight entrances are spread out across the entire height of the building. Visitors can reach the spacious foyer via a wide bridge in the main axis of the building. At the end of this main axis is a terrace directly overlooking the canal.

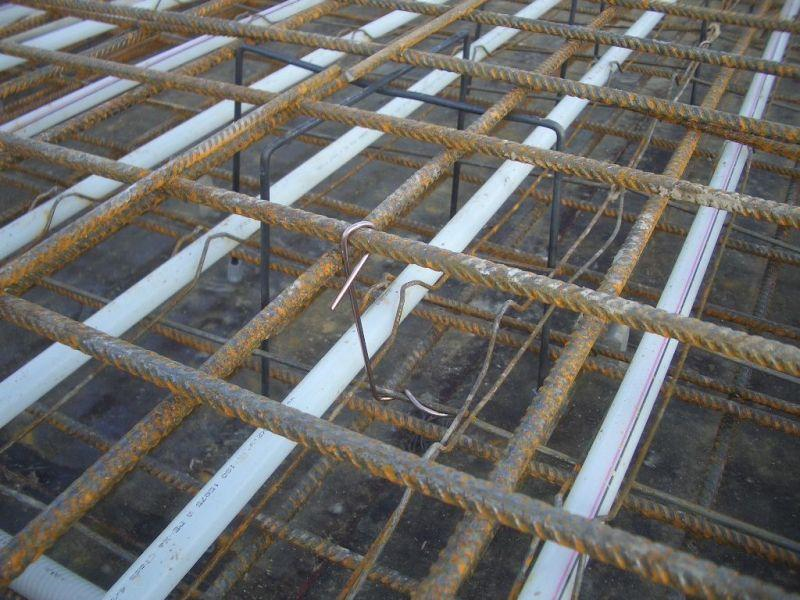

The indoor climate of this building dominated by glass is regulated by Uponor Contec concrete core activation (18,000 sq. m.). Given the size of the surface areas, concrete core activation constitutes an efficient and energy-saving solution that incorporates thermal ceiling panels to cover the basic loads. The main components of the system consist of factory-made prefabricated pipe matrices, the Contec modules. They are equipped with solid polyethylene pipes (PE-Xa pipes) according to the Engel method measuring 20 x 2.3 mm. The heat generated inside the building is absorbed by the cooling elements, which are installed in concrete and filled with cooling medium, and then dispatched outside the building. This way the building will maintain a pleasant indoor climate even in summer, and temperature amplifications are avoided effectively.
