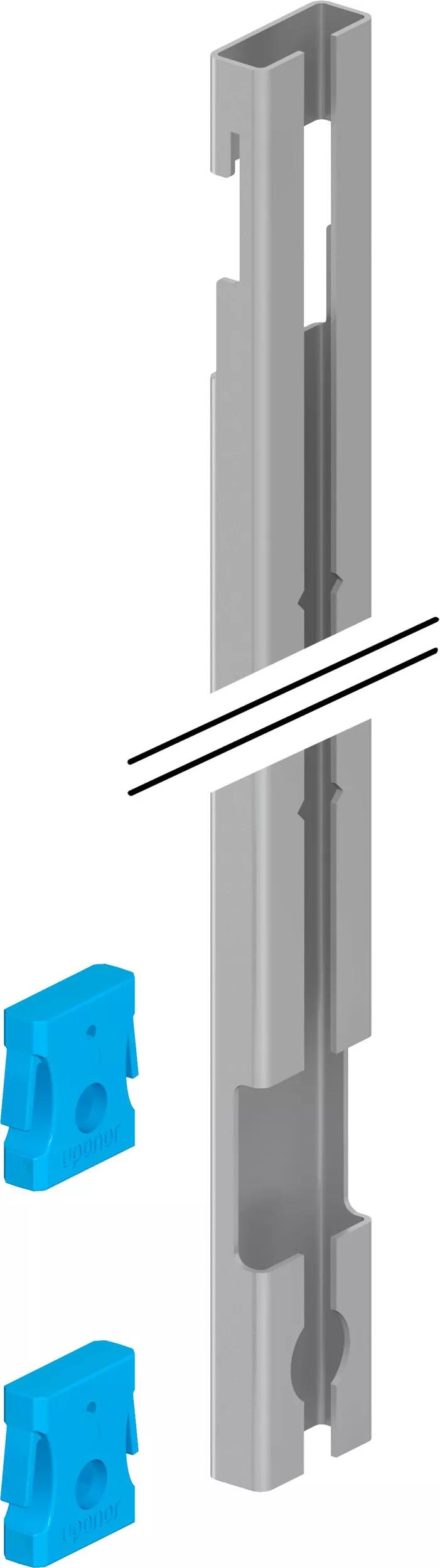

Uponor Vario rail with 5 dominos

- C-Rail for fixation of manifold
- with 5 dominos
- with bolts 6mm, screws, nuts and washers

Uponor Vario rail with 5 dominos

Item details

Uponor Vario rail with 5 dominos

Documents

Installation Manual
1 KB1094320

Installation Manual Vario cabinet IW (1094320)

Technical information
2 KB1095069

Technical Information Vario cabinet (1095069)

Application information

Specification

- Cabinets made of galvanized steel with white powder coating
- Available for in-wall (IW) and on-wall (OW) installation
- Adjustable height, depth, and width for on-site flexibility
- Lockable doors; doors and frames available separately
- Designed for integration of manifolds, controls, and accessories

Application

- Housing of Vario manifolds for UFH systems
- Residential and commercial buildings
- In-wall and on-wall installations
- Integration of pump groups, control units, and valves
- New installations and renovation projects

Product drawings

1093555_REN
1093555
113 B
1093555_REN
1093555
42 B
1093555_ZMD
1093555
48 B
