Fill the BIM cart from the product catalogue

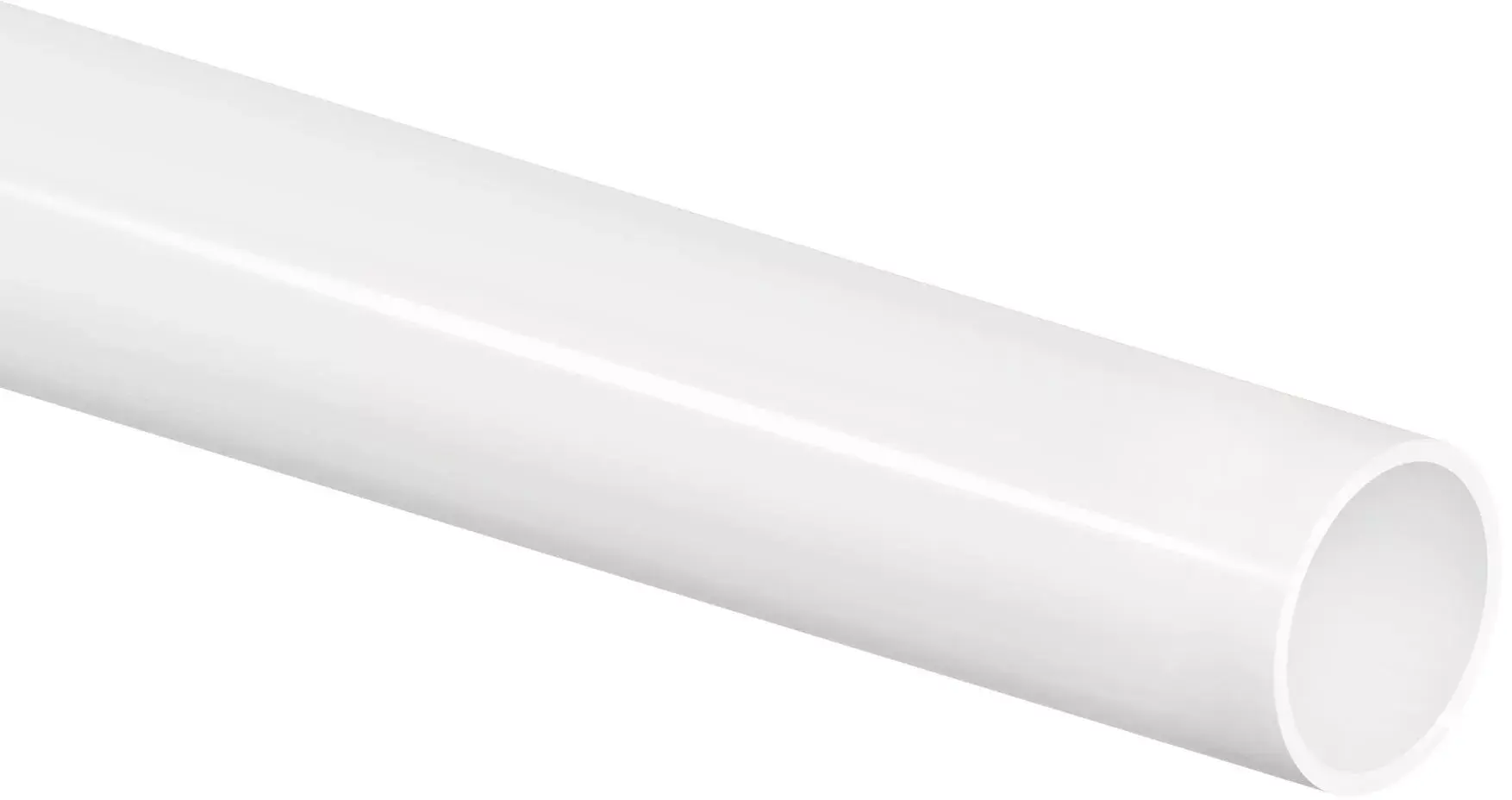

Uponor Aqua Pipe natural PN6

- Material: PE-Xa
- Operating pressure 6 bar
- In coils

Uponor Aqua Pipe natural PN6

Item details

Uponor Aqua Pipe natural PN6 16x1,8 200m
Uponor Aqua Pipe natural PN6 20x1,9 200m
Uponor Aqua Pipe natural PN6 25x2,3 100m
Uponor Aqua Pipe natural PN6 32x2,9 50m

Documents

Technical information
1 KB1118689

Technical Information PE-Xa piping systems (1118689)

Environmental Product Declaration (EPD)
971 B1143842

Uponor EPD_ Aqua Pipe (1143842)

Application information

Specification

- Pipes manufactured from peroxide cross-linked polyethylene (PE-Xa) in accordance with EN ISO 15875
- Application class 2 – hot water supply
- Fire classification E according to DIN EN 13501-1
- Operating pressure up to 6 bar (PN6), depending on variant
- Available as plain pipe or pipe in protective conduit

Application

- Tap water installations for hot and cold water distribution
- Permanent operating temperature from 0 °C to 70 °C
- Short-term malfunction temperature up to 95 °C for a total of 100 hours over the service life
