Uponor Q&E adapter male thread DR
- Brass Fitting- Carton box packaging
Item details
1145701 / - / -
Uponor Q&E adapter male thread DR 16-R1/2"MT
1145703 / - / -
Uponor Q&E adapter male thread DR 20-R1/2"MT
1145704 / - / -
Uponor Q&E adapter male thread DR 20-R3/4"MT
1145705 / - / -
Uponor Q&E adapter male thread DR 25-R3/4"MT
Documents
Technical manuals
Technical information
1 KB1118689
Technical Information PE-Xa piping systems (1118689)
Application information
Specification
- Q&E fittings and rings for Uponor Pex pipes- Metal fittings are made of high quality brass- Plastic fittings are made of polyphenilsulphone- Q&E rings must be ordered separately if not different mentioned
Application
if not different mentioned:- Male and female threads acc.to EN 10226-1.
Product drawings

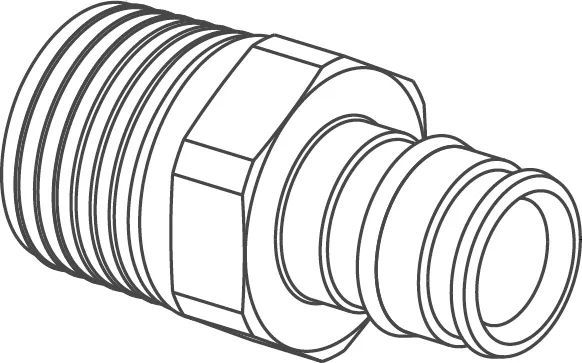

Label drawings

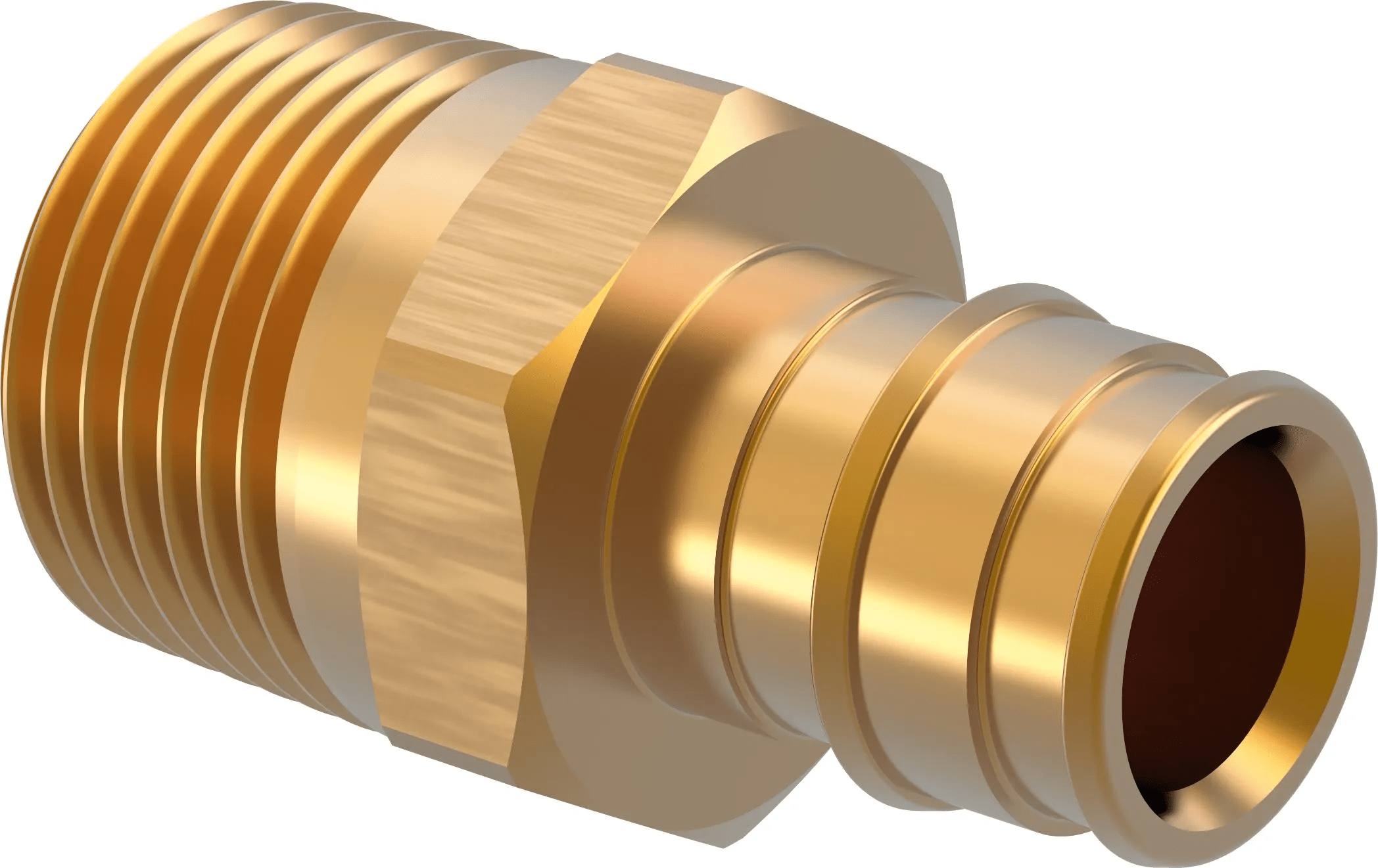

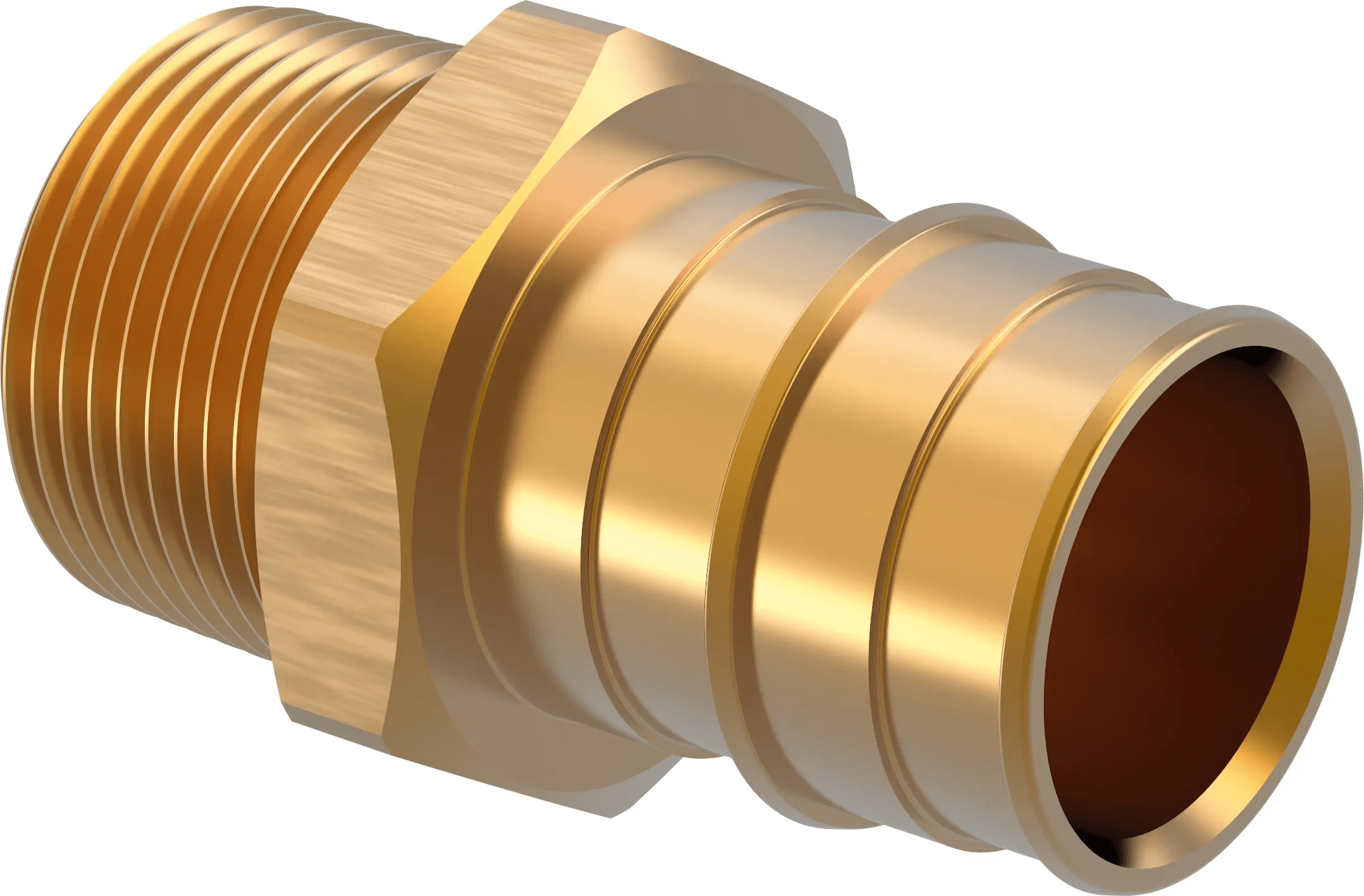

Rendered

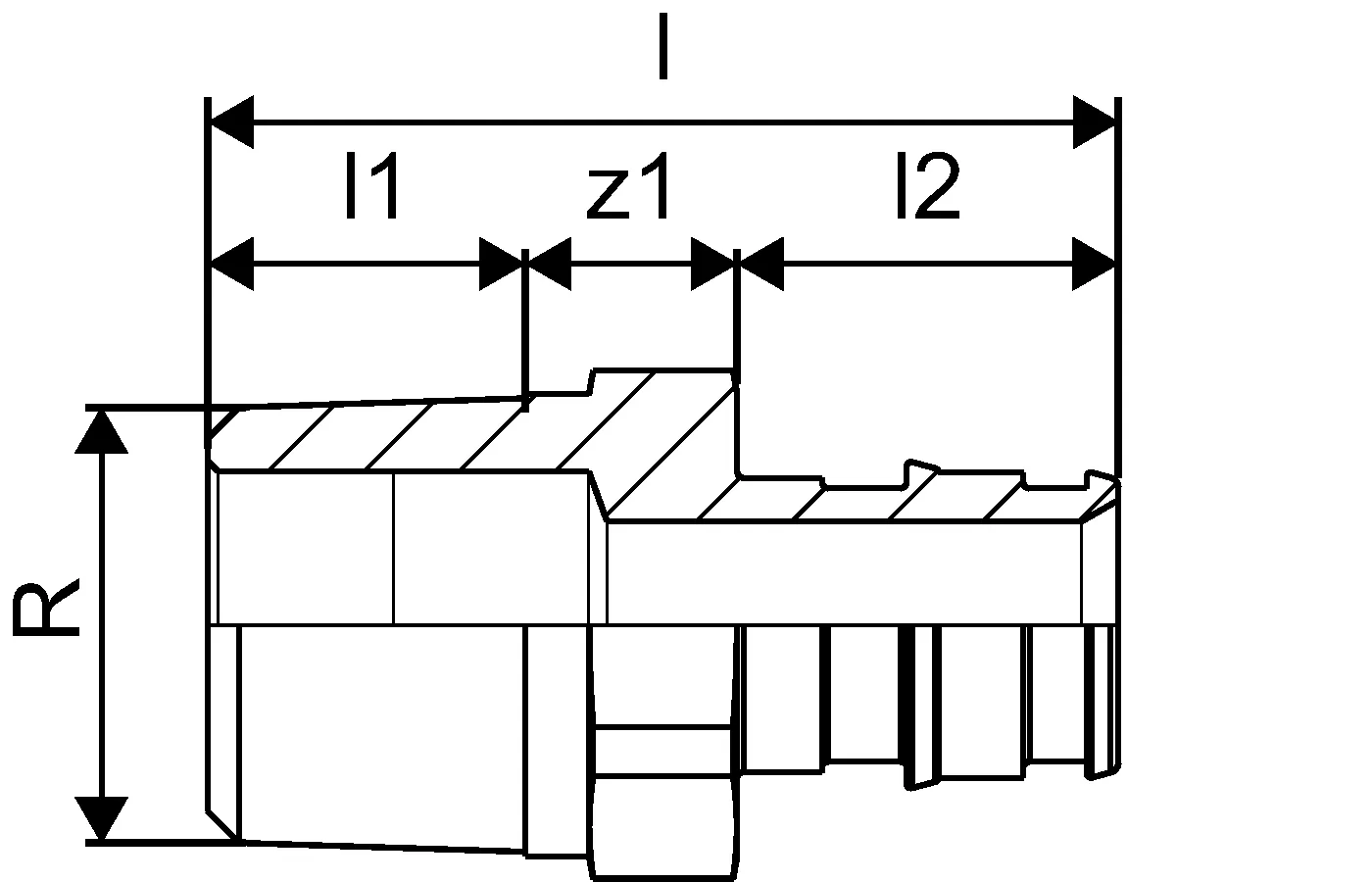

Z-drawing
