GF Silenta 3A parallel branch AMS 87,5deg

Light blue, PP-material with inorganic filler, according to EN 1451

GF Silenta 3A parallel branch AMS 87,5deg

Item details

GF Silenta 3A parallel branch AMS 87,5deg 90-50mm
GF Silenta 3A parallel branch AMS 87,5deg 90-90mm

Documents

Technical information
7 KB1187135

GF BFS TI Silenta premium - Silenta 3A - HT-PP (1187135)

Installation Manual
3 KB1187772

IM Silenta INT 1187772 v1

Application information

Specification

- Silenta 3A is a sound-insulating 3-layered soil and wastewater pipe system made of PP material which is specially formulated and reinforced for non-pressurized domestic drainage in accordance with System Standards of DIN EN 1451, DIN 4109 and DIN 4102. Silenta 3A has high performance in all places that require impact, durability and sound protection. The pipe diameters range from 32 mm to 200 mm. The system also includes bases and fittings with additional accessories.

Application

- Office buildings, conference halls, and similar facilities
- Schools, libraries, hospitals, hotels, and residential buildings
- Sustainable and green buildings
- Industrial facilities for both short- and long-term applications

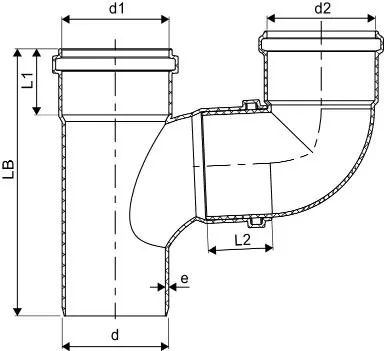

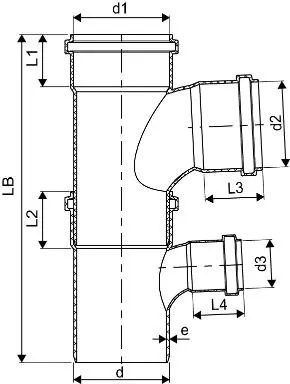

Product drawings

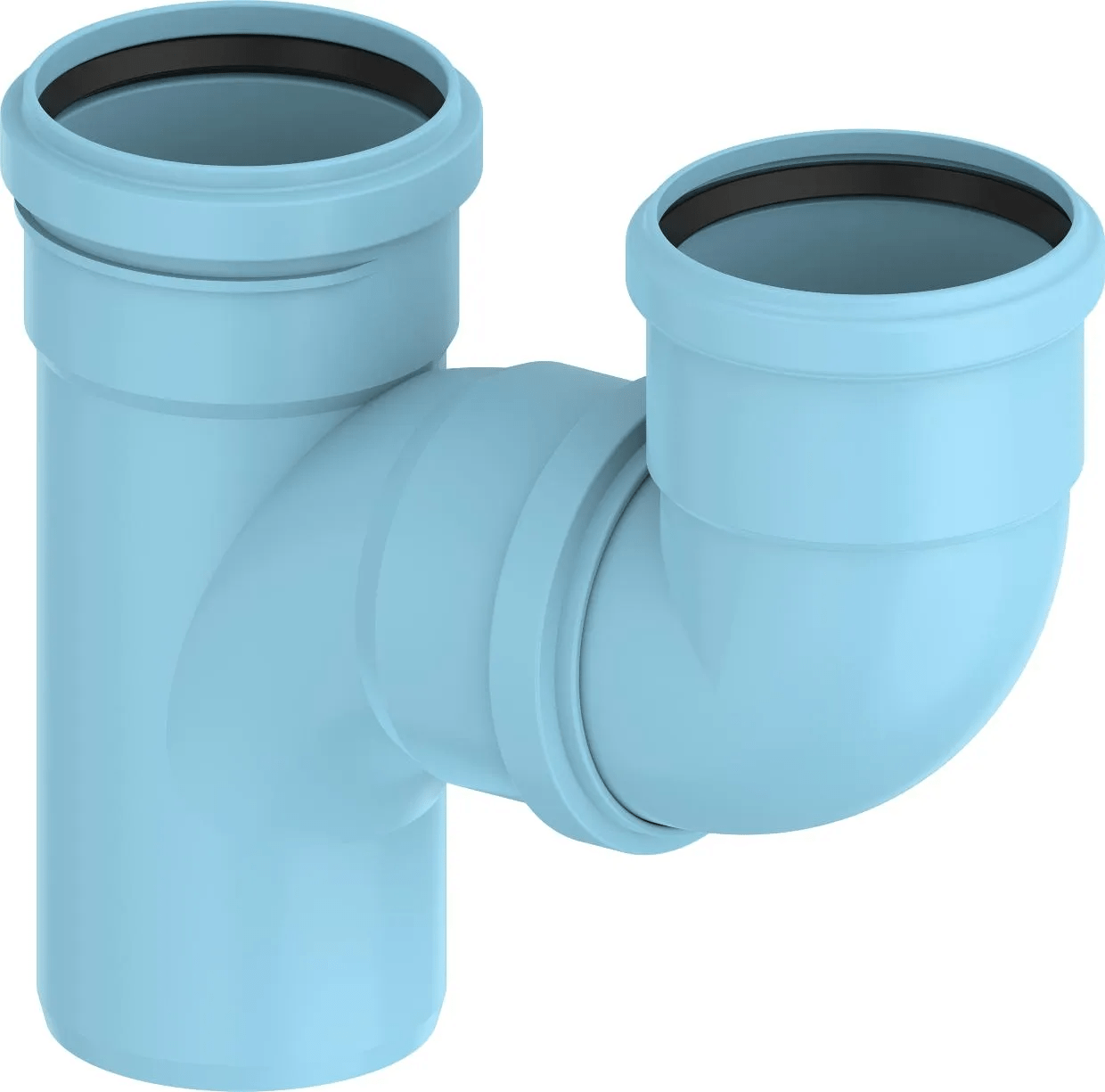

1185535_REN
1185535
57 B

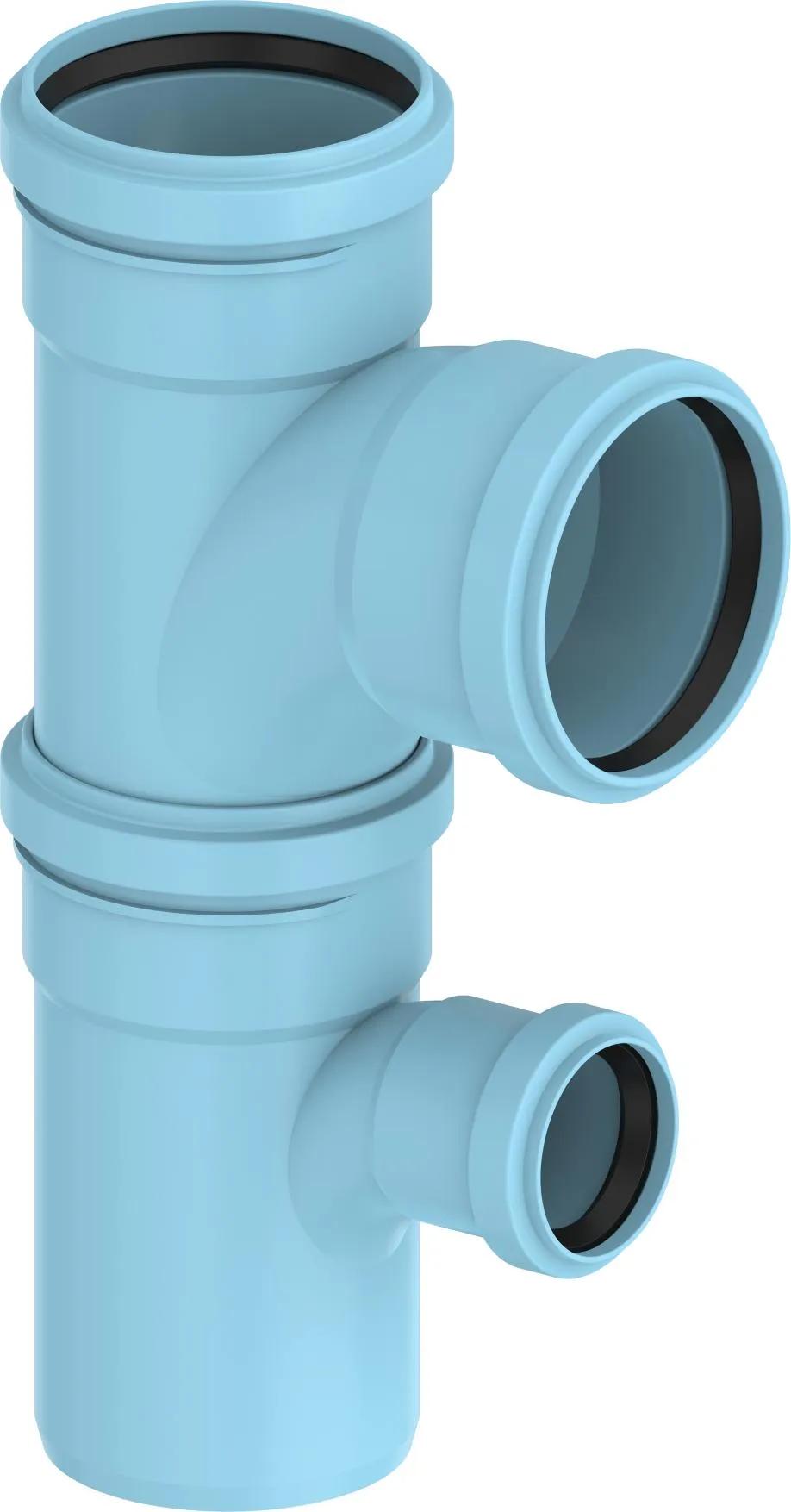

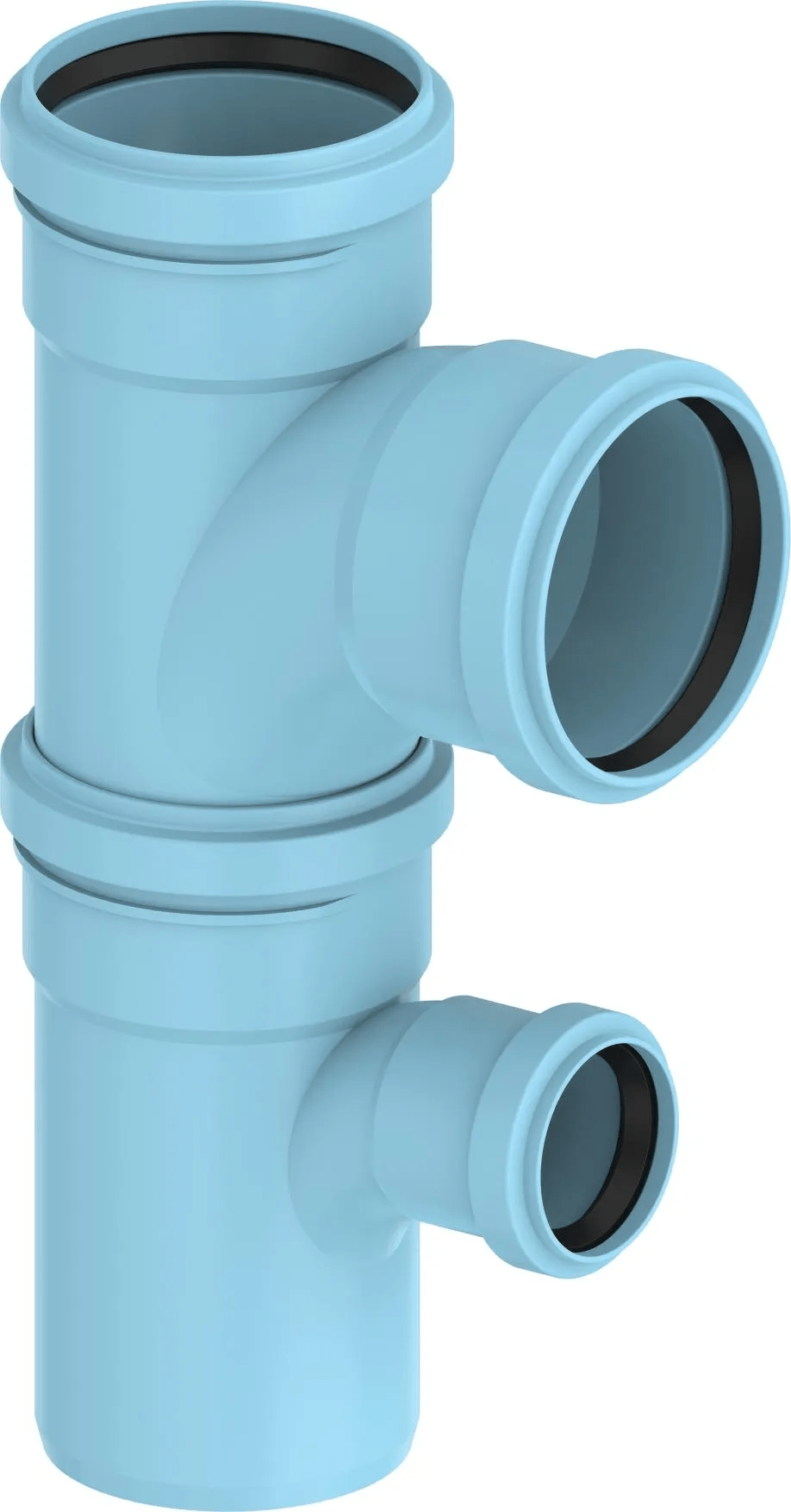

1185536_REN
1185536
66 B
