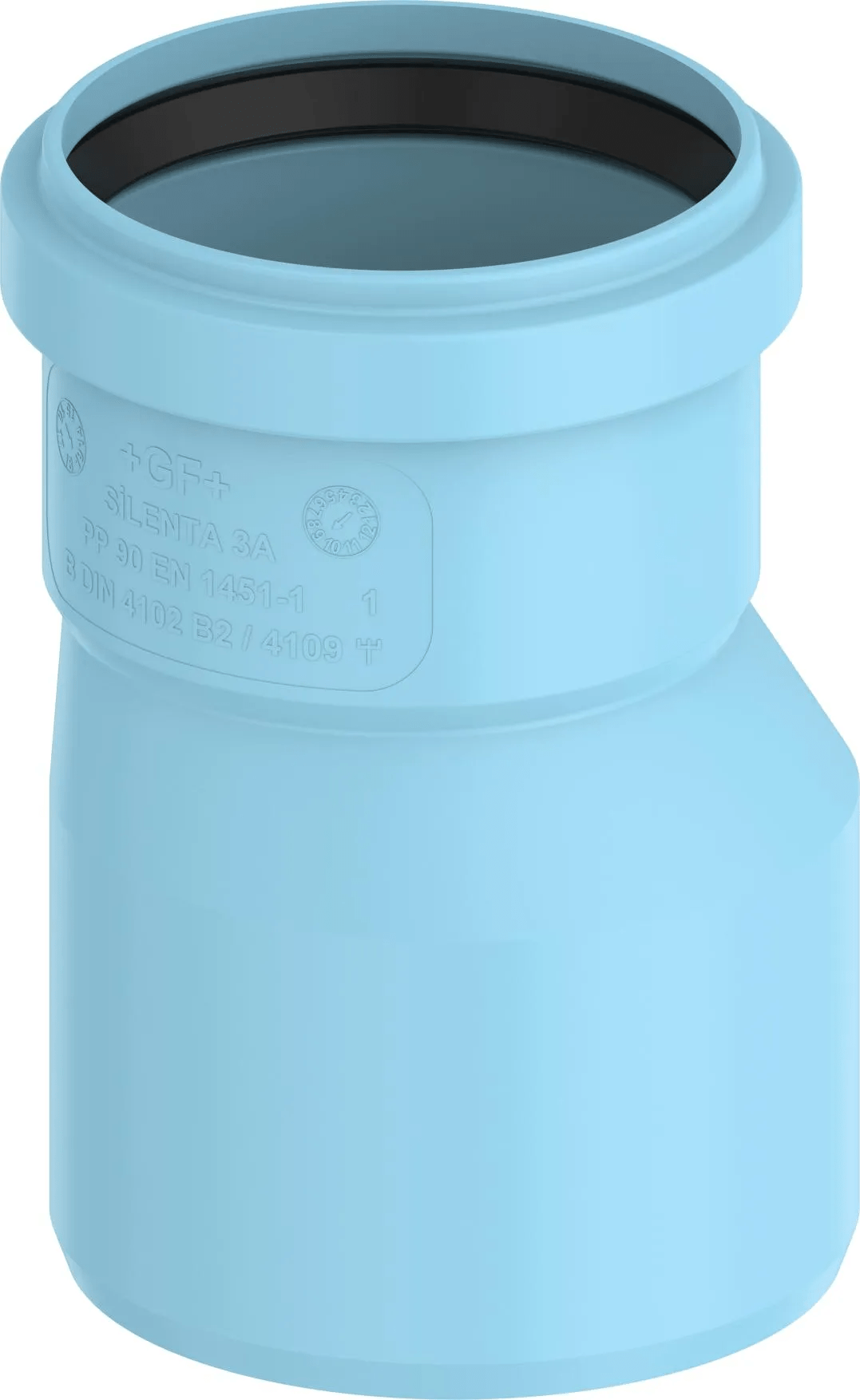

GF Silenta 3A reducer eccentric

- Light blue, PP-material with inorganic filler, according to EN 1451

GF Silenta 3A reducer eccentric

Item details

GF Silenta 3A reducer eccentric 40x32mm
GF Silenta 3A reducer eccentric 50-32mm
GF Silenta 3A reducer eccentric 50x40mm
GF Silenta 3A reducer eccentric 75-50mm
GF Silenta 3A reducer eccentric 90-50mm
GF Silenta 3A reducer eccentric 110-50mm
GF Silenta 3A reducer eccentric 110-75mm
GF Silenta 3A reducer eccentric 125-110mm
GF Silenta 3A reducer eccentric 160-110mm
GF Silenta 3A reducer eccentric 160-125mm
GF Silenta 3A reducer eccentric 200-160mm

Documents

Technical information
7 KB1187135

GF BFS TI Silenta premium - Silenta 3A - HT-PP (1187135)

Installation Manual
3 KB1187772

IM Silenta INT 1187772 v1

Application information

Specification

- Three-layer polypropylene soil and wastewater pipe system
- Compliant with DIN EN 1451, DIN 4109 and DIN 4102
- Designed for non-pressurized domestic drainage
- Pipe diameter range: DN 32 to DN 200
- Complete system including pipes, fittings and accessories

Application

- Residential buildings and apartment complexes
- Schools, libraries, hospitals and hotels
- Office buildings, administrative centers and conference facilities
- Sustainable and green building projects
- Industrial facilities, suitable for both short‑ and long‑term wastewater applications
