GF HT-PP elbow 15deg

- Gray, PP-material, according to EN 1451

GF HT-PP elbow 15deg

Item details

GF HT-PP elbow 15deg 32mm
GF HT-PP elbow 15deg 40mm
GF HT-PP elbow 15deg 50mm
GF HT-PP elbow 15deg 75mm
GF HT-PP elbow 15deg 110mm

Documents

Technical information
7 KB1187135

GF BFS TI Silenta premium - Silenta 3A - HT-PP (1187135)

Installation Manual
3 KB1187772

IM Silenta INT 1187772 v1

Application information

Specification

- The system is made from monolayer polypropylene (PP) to ensure reliable performance in standard drainage applications.
- It is designed for non‑pressurized soil and wastewater drainage in residential and commercial buildings.
- The system is fully compliant with EN 1451‑1 for plastic soil and waste discharge and EN 13501 for fire classification.
- It achieves fire performance rating E according to EN 13501.
- The pipes are suitable for short‑term exposure to high‑temperature wastewater.
- The material provides high resistance to chemicals commonly found in domestic and commercial wastewater.
- The push‑fit socket design with integrated sealing rings ensures quick installation and leak‑tight connections.
- The system is available in nominal diameters ranging from DN 32 to DN 200.

Application

- Residential buildings
- Office buildings and conference facilities
- Schools, libraries, hospitals, and hotels
- Underground and above-ground house drainage
- Sustainable / green building projects
- Industrial facilities (short- and long-term use)
- Wastewater from kitchens, bathrooms, and household appliances (e.g. washing machines, dishwashers)

Product drawings

1150121_ZMD
1150121
10 B
1150125_ZMD
1150125
10 B
1150130_ZMD
1150130
10 B

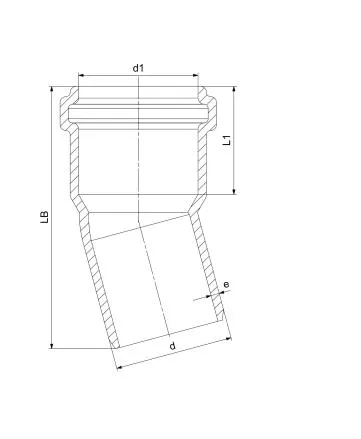

1150135_ZMD
1150135
10 B
1150140_ZMD
1150140
10 B
1150121_PHO
1150121_PHO
551 B
1150125_PHO
1150125_PHO
551 B
1150130_PHO
1150130_PHO
551 B
1150135_PHO
1150135_PHO
551 B
1150140_PHO
1150140_PHO
551 B
