Fill the BIM cart from the product catalogue

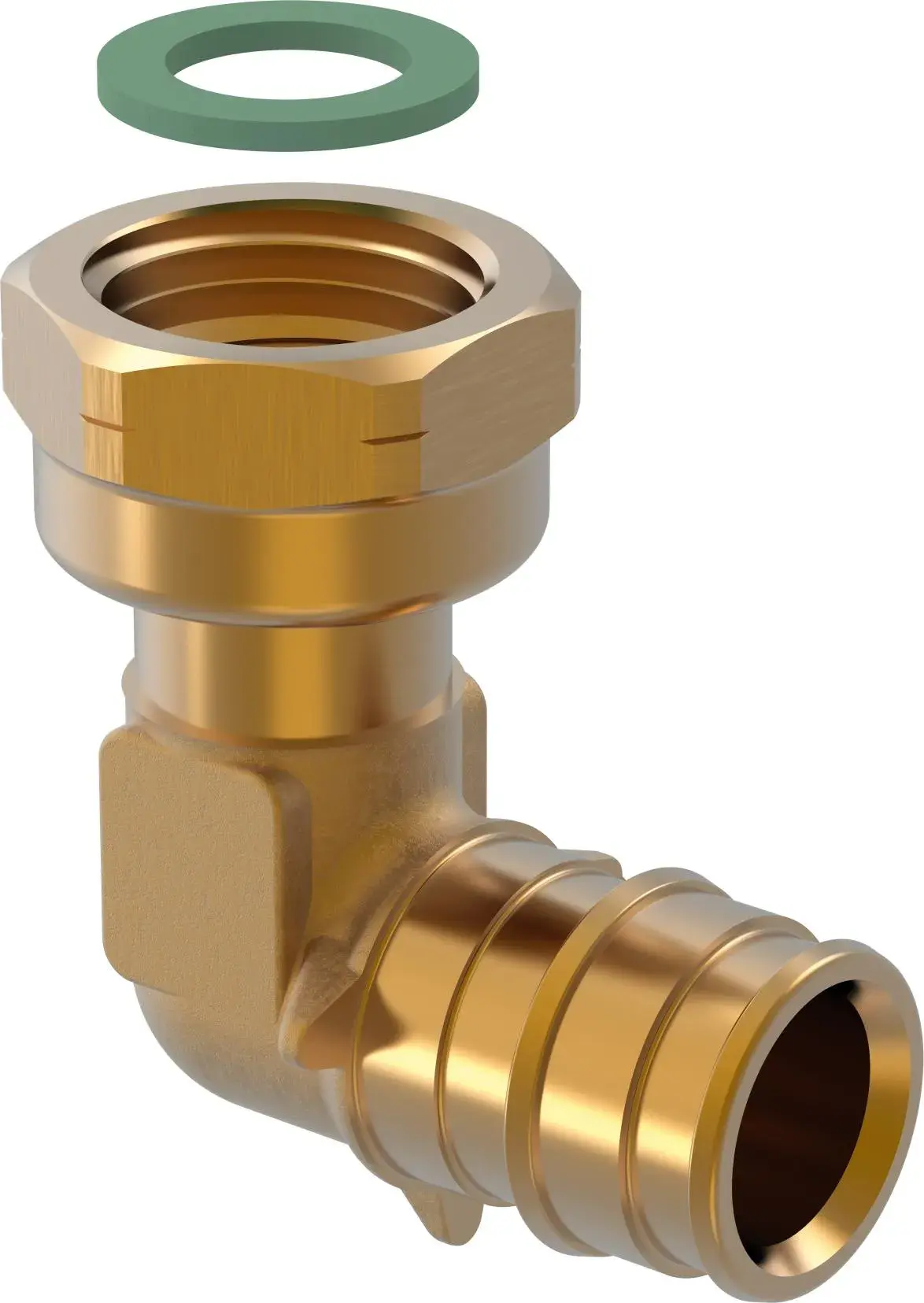

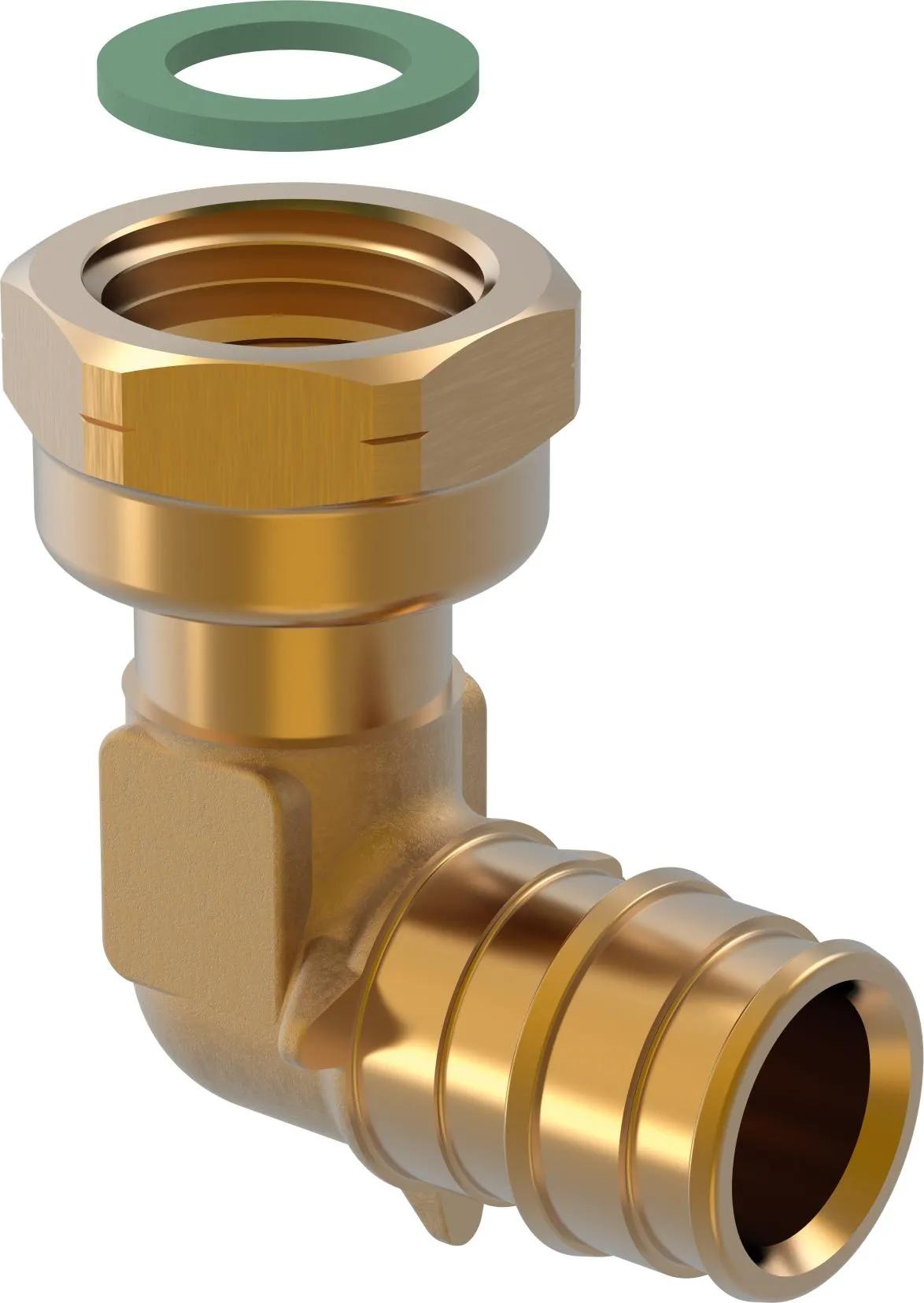

Uponor Q&E elbow swivel nut LF 20x1/2" BSP

Uponor Q&E elbow swivel nut LF 20x1/2" BSP
Part no.1126827

Item details

Dimensions

Item Unit Weight0,103
Item_UOMpce
Item Unit Height25
Item Unit Width48
Item Unit Length50.5

Technical data

Recycling Text Block PL3Corrugated fibreboard
Recycling Text Block PL1Low density polyethylene

Measurements

z127,5
Length (l1)35,5
Cylindric_thread_G1/2
Z210,5
Length (l2)32,5

Packaging

FieldPL1PL3PL4
GTIN06414900305839 06414900307123 06414900380072
Height25 170 680
Length100 320 1200
MaterialLow density polyethylene Corrugated fibreboard -
Material (number)4 20 -
Material (short)LDPE PAP -
Quantity5 150 8100
TypePlastic_Bag Box Pallet
Volume0,00025 0,01088 0,816
Weight0,515 15,85 819
Width100 200 1000

Product code

Item no GTIN06414905673063
Item no GF35001126827
Item no EAN6414905673063

Documents

Installation Manual
1 KB1121763

Installation Manual Q&E 9,9-50 (1121763)

Installation Manual
1 KB1062301

Installation Manual Uni Pipe PLUS (1062301)

Technical information
1 KB1118689

Technical Information PE-Xa piping systems (1118689)
