Minitec - Low Profile & Retrofit Underfloor Heating System

Minitec - low building floor heating with quick response time

Minitec is an easy to install wet screed based system with a total build height of only 15mm. As well as being ultra- thin, it also has one of the best reaction times for an underfloor heating system. Whats more, due to the pipes being close to the surface you can run this system at a much cooler temperature and still get great outputs- ideal for heat pumps.

Application areas:

  • Radiant underfloor heating and cooling
  • Wet installation
  • Residential and commercial applications
  • For use with qualified filler materials

Specification:

  • Panel size: 1120 x 720 mm
  • Total panel height: 12 mm
  • Pipe dimensions: 9.9 x 1.1 mm
  • EN 13501-1 fire classification class E
  • Pipe spacing: 5, 10 or 15 mm
  • Net surface with overlapping nubs: 0.77 m²

Learn how to retrofit Uponor Minitec underfloor heating

  • Check out the video that explains the basic principle of how Uponor minitec underfloor heating is installed.

Benefits of the Uponor Minitec System

How to install the Uponor Minitec System

How to lay?

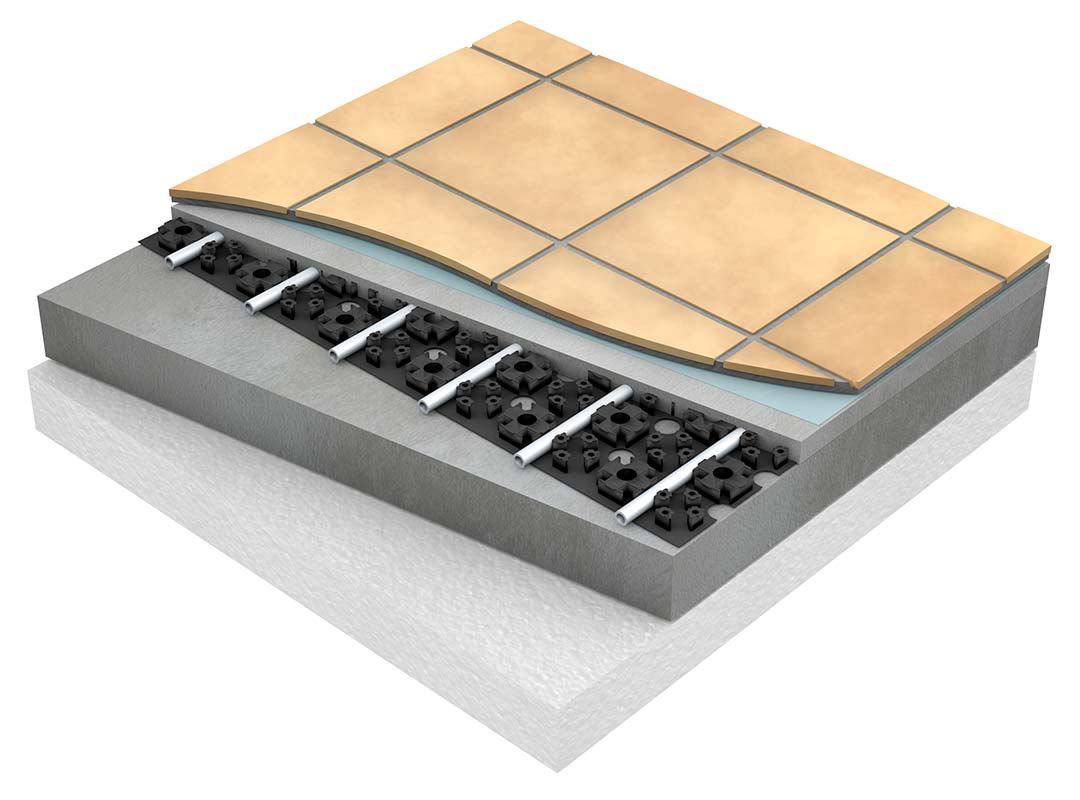

Our 9.9mm Minitec pipe is clipped into the specially designed Minitec panels and can be laid directly onto the existing structural floor (providing it is primed). The panel allows the pipe to be clipped in at a minimum of 50mm centres (normally 100mm centres). Once laid, an approved levelling compound is poured on top covering the pipe and panel. This not only protects the pipe but gives some of the best outputs on the market

Brochures related to Minitec Underfloor Heating

Underfloor Heating Customer Brochure

Underfloor Heating Customer Brochure

Learn more about the Uponor Underfloor Heating Range

PDF 6 MB

Select Uponor underfloor heating and cooling wet installation system to suit your individual requirements

Underfloor heating systems in residential and commercial buildings which mainly require heating are often the first choice. And since the requirements for the design and function of an underfloor heating can differ very much, Uponor offers tailor-made solutions not only for new buildings, but also for renovation. To increase comfort, these systems can also be used to cool rooms.

HEP

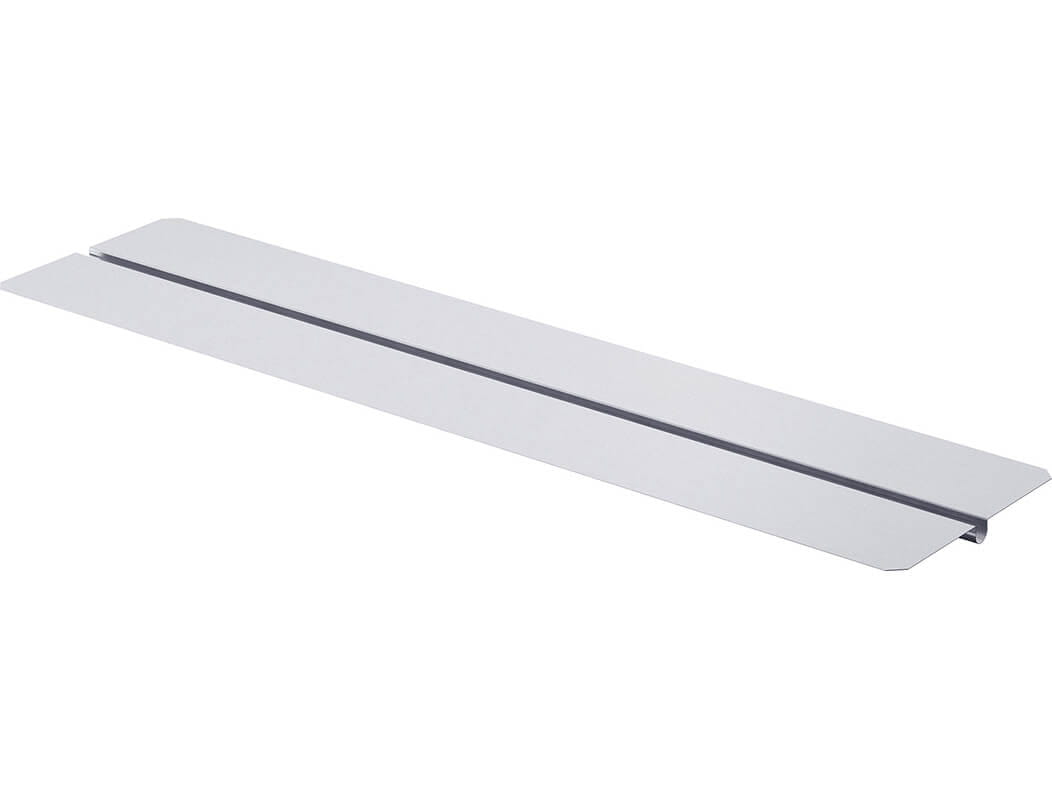

  • Uponor has developed various heat emission plates (HEP's) to suit many timber floor applications
  • 3 HEPs are available at the following centres- 411, 400 and 300
  • Before conducting an installation, please contact Uponor for technical advise


Solid Screed/Tacker Installation

  • A traditional way of installing underfloor heating in a building
  • Can be fixed directly to existing floor grade insulation
  • Accommodates various pipe layouts and spacings

Siccus FX dry installation

  • Uponor Siccus FX has been developed as a 30mm insulation board
  • Quick to install; the floor can be walked on immediately
  • 100% emitter coverage


Other systems within the range

Sport

  • No disturbing or even dangerous system components in the way of the occupants
  • Hygienic and easy-to-clean sports floor surface

Meltaway

  • Reliable snow and ice elimination of exposed traffic surfaces
  • Utilisation of exhaust heat, for example from industrial production possible

Magna

  • Optimal space utilisation without interfering system components
  • Economical through rapid amortisation and minimal maintenance costs
