The New Deichmanske Library - Bjørvika, Oslo, Oslo, Bjørvika, Norway

The New Deichmanske Library - Bjørvika, Oslo

The building is situated in Bjørvika, right next to the Norwegian Opera House. The total area is approximately 23,500 m2 , divided into 5 floors above ground and 2 floors below ground.
Deichman has 4 floors equipped with TABS - Thermal Active Building System. This is a cooling and heating concept where we store the energy in the concrete ceilings. New in Norway, but a proven concept in central parts of Europe. Uponor has designed and delivered equipment to more than 1,000 buildings with TABS since 1997.
TABS - Thermal Active Building Systems - is a principle for thermal activation of concrete ceilings. The surplus heat in the room is stored in the concrete layer, and extracted from the building via water-conducting pipes that are embedded in the concrete. The cooling capacity is 60 W / m2.
The room temperature will vary from a selected starting temperature, e.g. 20 degrees, in the morning and increase to a chosen maximum level, eg. 25 degrees - which often occurs towards the end of the workday. The circulation pump for the cooling water will then start. The two temperatures are chosen according to the building's application, and is optional.
In heating mode, the TABS ceilings can deliver 30 W / 2. Deichman is a so called passive energy house with a heat requirement of about 15 W / m2. The flow temperature of the circulation water regulates the effect.

Projektová fakta

Oslo, Bjørvika, Norway
Kancelářské budovy
Plošné vytápění a chlazení
Dokončení: 2019

Uponor participace

8.000 kvm
In the phase where the surplus heat is drawn into the concrete ceilings the building does not need energy for cooling.
It only uses energy when the heat is pulled out of the concrete and into the water. The ventilation system does not contribute to cooling or heating in the building at all. TABS take care of this.
TABS is the real reason why the building has less energy consumption. The operating costs will also be significantly reduced compared to a conventional air-based cooling system.

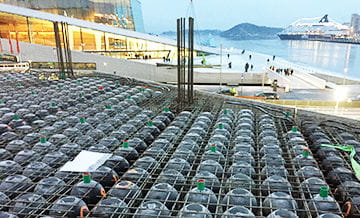

Biaxial elements – the BubbleDeck - are used with cast TABS pipes that are already installed in the prefab phase at the concrete plant in Telemark. The BubbleDeck is made up of large plastic bubbles that lies very close together, surrounded by reinforcing iron. This is lowered into a concrete bath where the height of the concrete deck becomes approximately 7 cm. The finished, tempered element looks like a platon covering, with partially embedded plastic balls, surrounded by reinforced iron.
The BubbleDeck elements are numbered and each one has a unique place in the building constuction. Deichman has a complicated geometric shape. This entails that the elements needs to have many different shapes and sizes. The TABS project is therefore adapted to each individual element - about 480 different sizes. When all elements are transported into place, the entire ceiling is cast out to a total height of 40 cm.
On top of the concrete ceiling an elevated floor with steel legs is installed. This is also 40 cm, and will act as a technical mezzanine. The ventilation air is also distributed in this middle floor by means of a displacement ventilation method.
The installation of BubbleDeck - elements with TABS will be completed in the middle of July 2017.

Uponor is also the supplier of manifolds and pipes on the middle floor. In addition, the piping system for tap water will be supplied.
Deichman will be ready in 2019.

The New Deichmanske Library - Bjørvika, Oslo

deichmanske700x450

Projektové informace

Projektové informace

Adresa
Bjørvika, Oslo
Stát
Norway
Webové stránky
/Norway/BLD/News/Deichman.aspx
Dokončení
2019
Typ projektu
Novostavba
Typ budovy
Kancelářské budovy
Produktová řada
Q&E, Uponor Vario PLUS, Classic, Aqua Pipe

Partneři

Skanska is the main contractor for the raw building structure, and it is scheduled for completion in the autumn of 2017. After that, AF Contractors will take over and finish the internal works, including the glass facade. The performing architect is Lund Hagem Architects.

All illustrations used in this reference belongs to Lund Hagem Arcitects.
