Uponor Q&E BP-elbow LF
- Made of lead free brass acc. to A5G4 of NCC 2022- Watermark approved- Note: Q&E ring must be ordered separately
Item details
1126841 / - / -

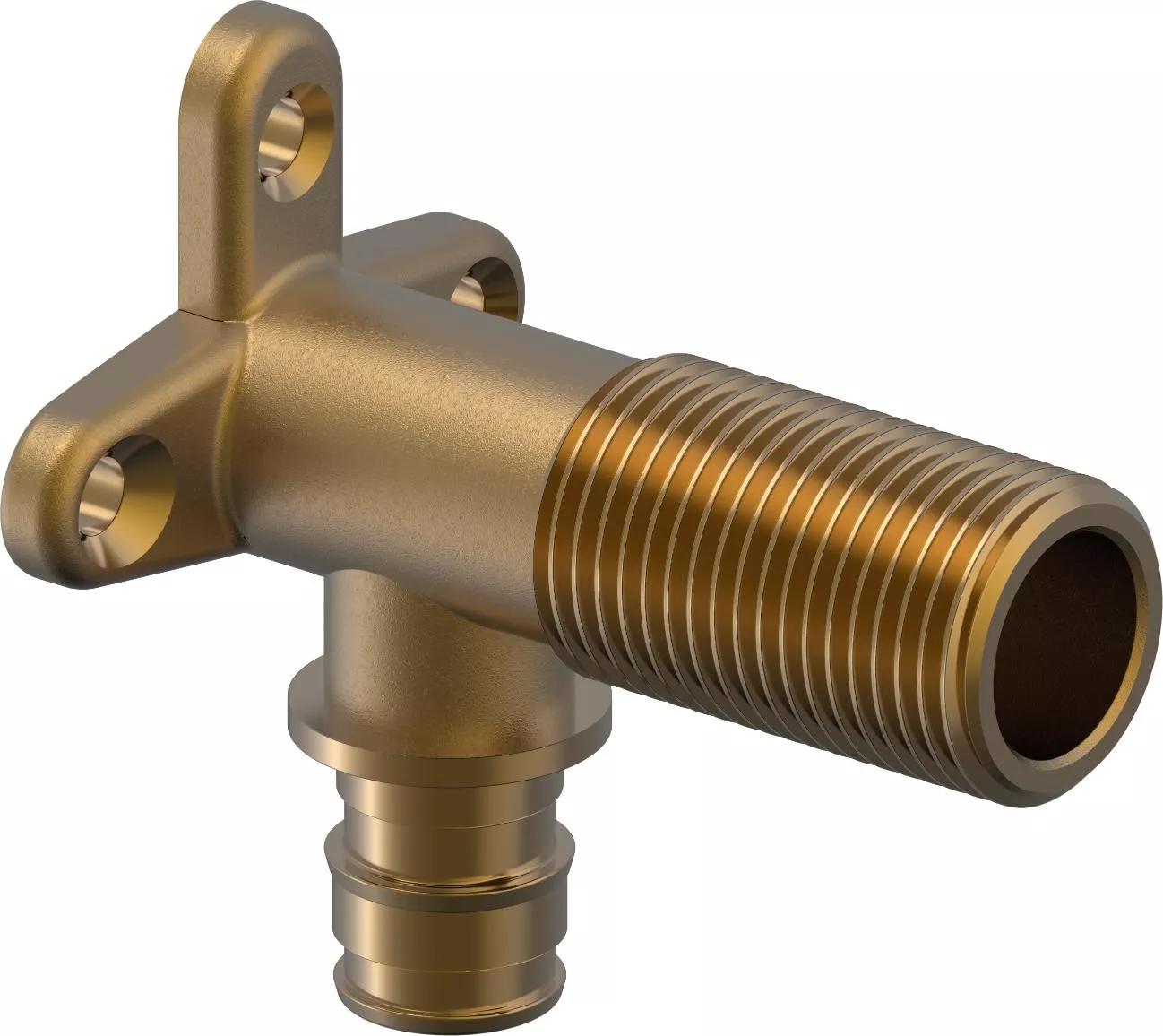

Uponor Q&E BP-elbow LF Male 16x1/2" BSP L=65mm
1126842 / - / -

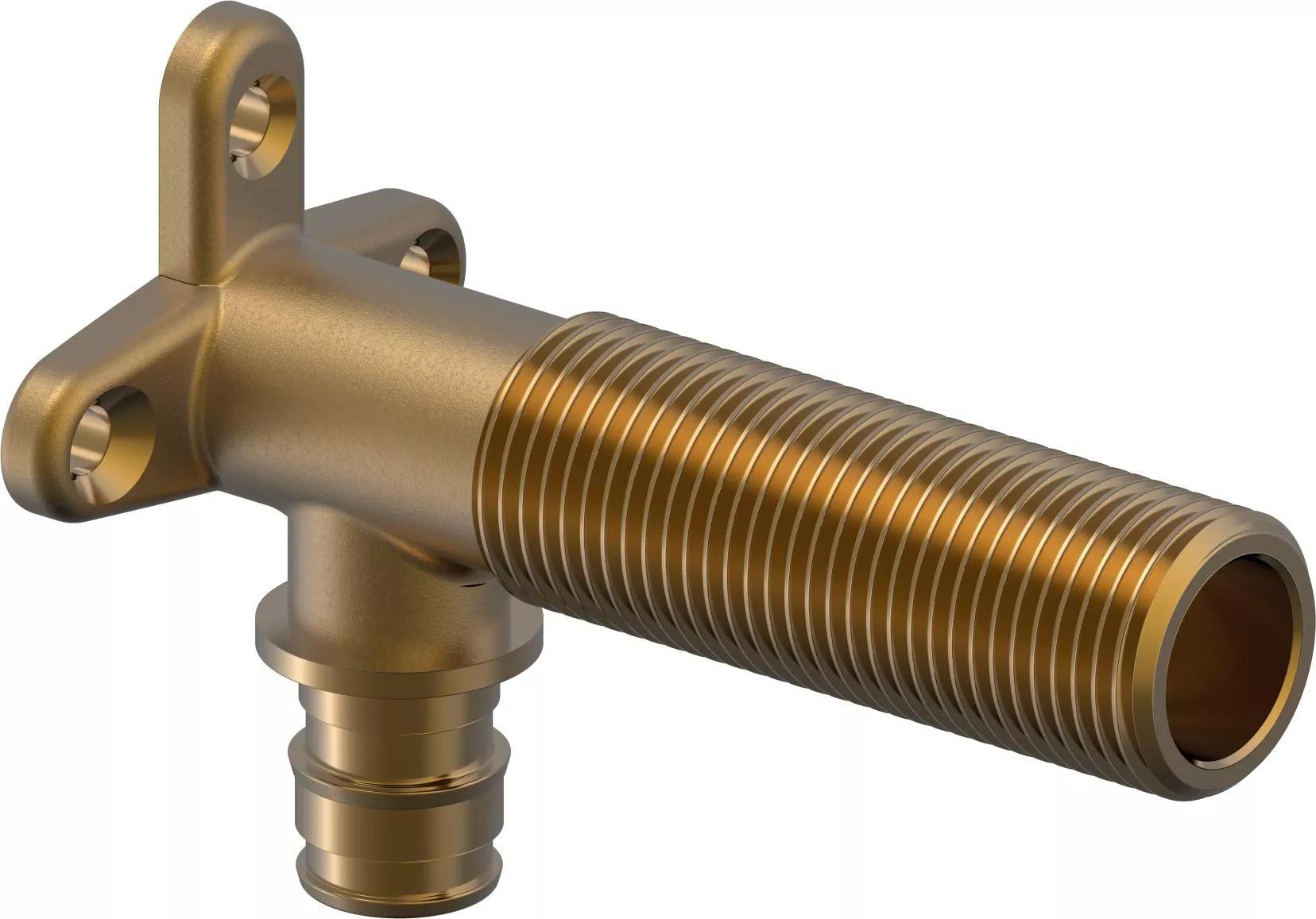

Uponor Q&E BP-elbow LF Male 16x1/2" BSP L=90mm
1126843 / - / -

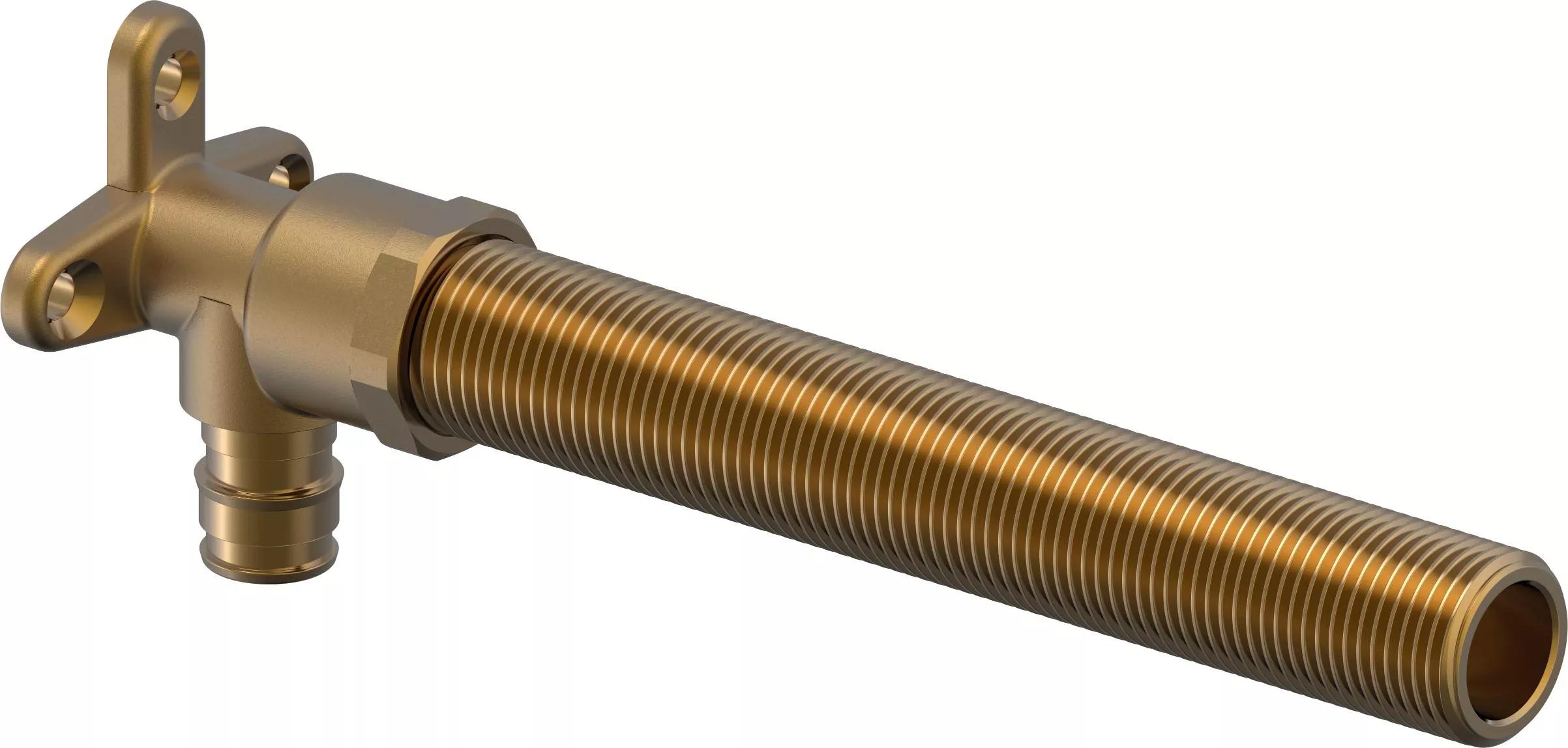

Uponor Q&E BP-elbow LF Male 16x1/2" BSP L=175mm
1126844 / - / -

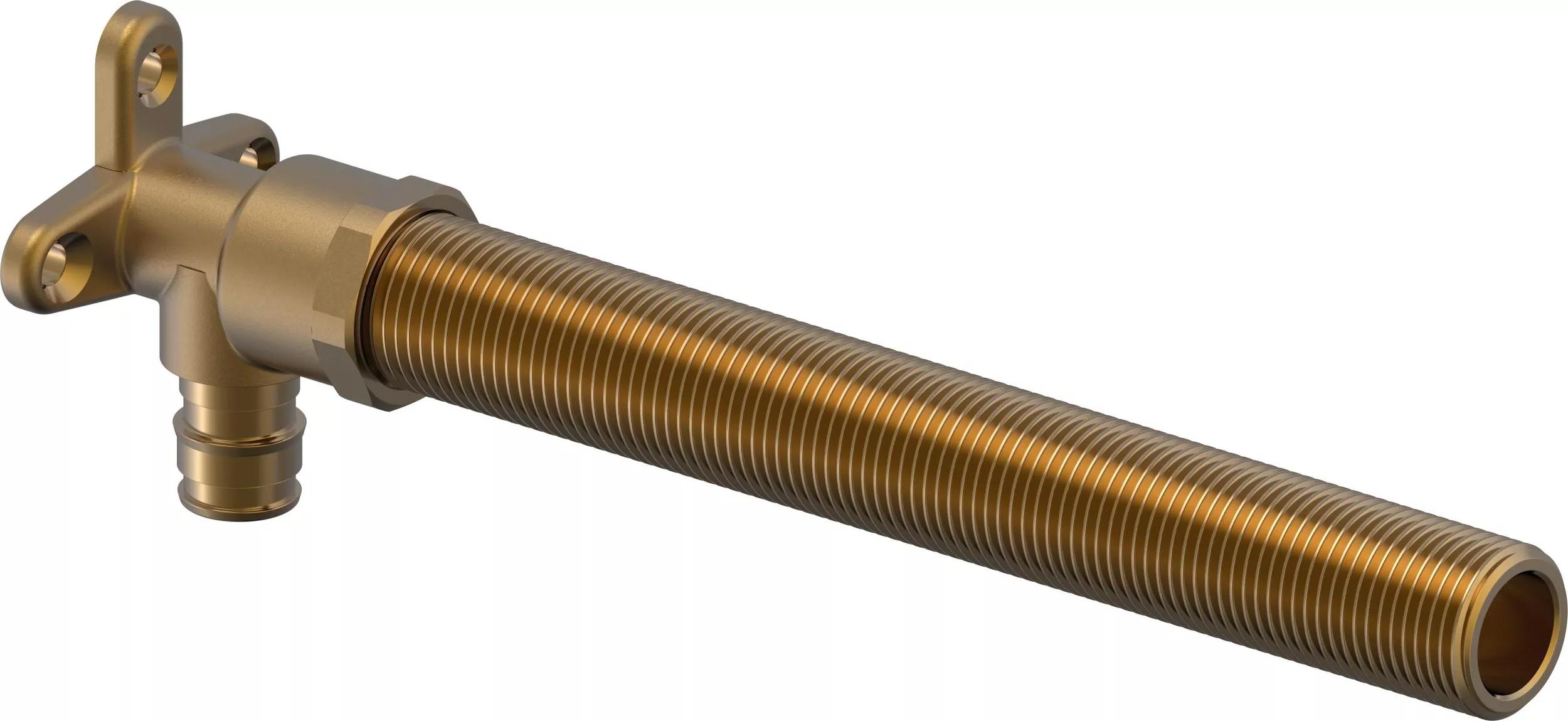

Uponor Q&E BP-elbow LF Male 16x1/2" BSP L=200mm
1126845 / - / -

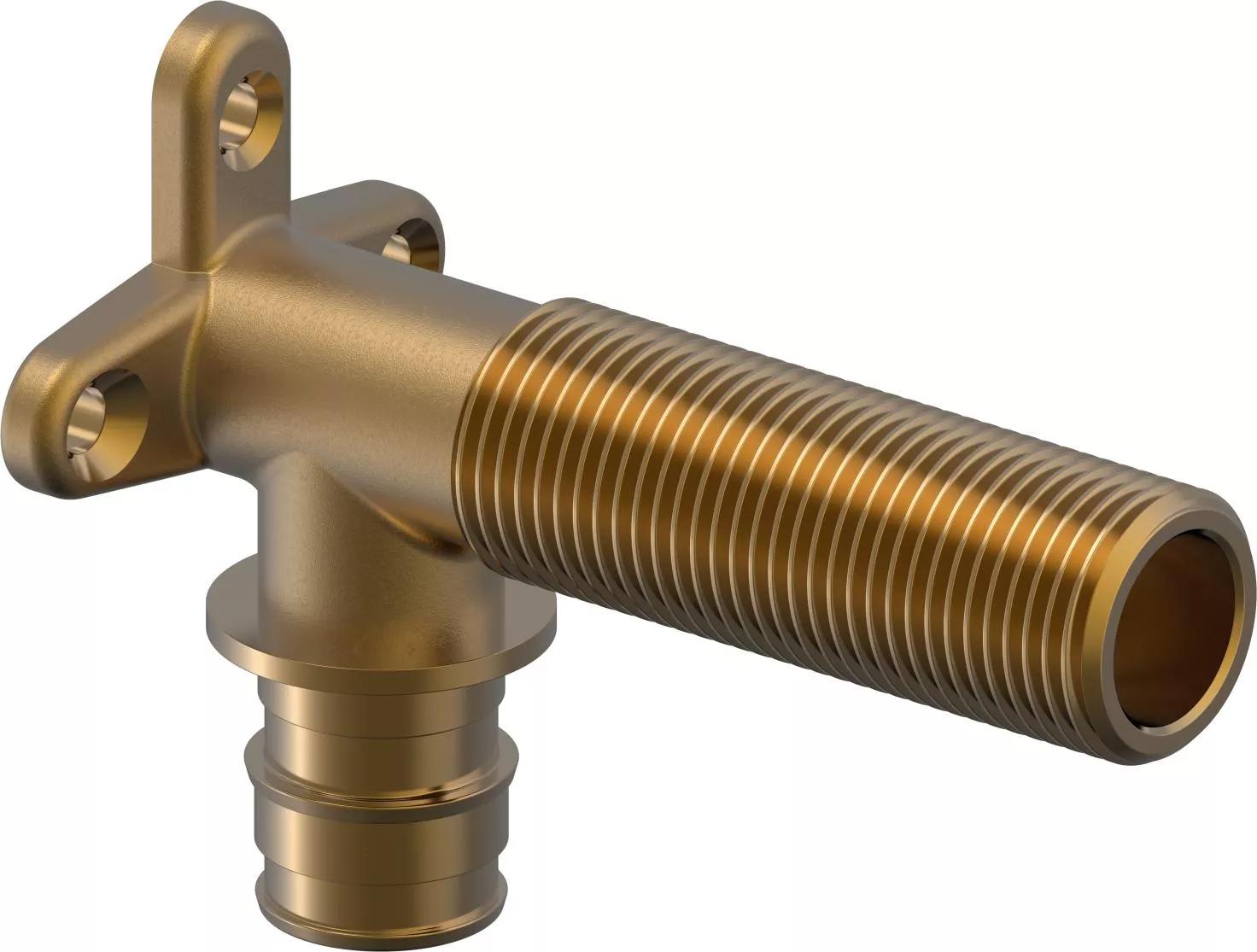

Uponor Q&E BP-elbow LF Male 20x1/2" BSP L=95mm
Documents
Technical manuals
Technical information
1 KB1118689
Technical Information PE-Xa piping systems (1118689)
Application information
Specification
- Q&E fittings and rings for Uponor Pex pipes- Metal fittings are made of high quality brass- Plastic fittings are made of polyphenilsulphone- Q&E rings must be ordered separately if not different mentioned
Application
if not different mentioned:- Male and female threads acc.to EN 10226-1.
Product drawings

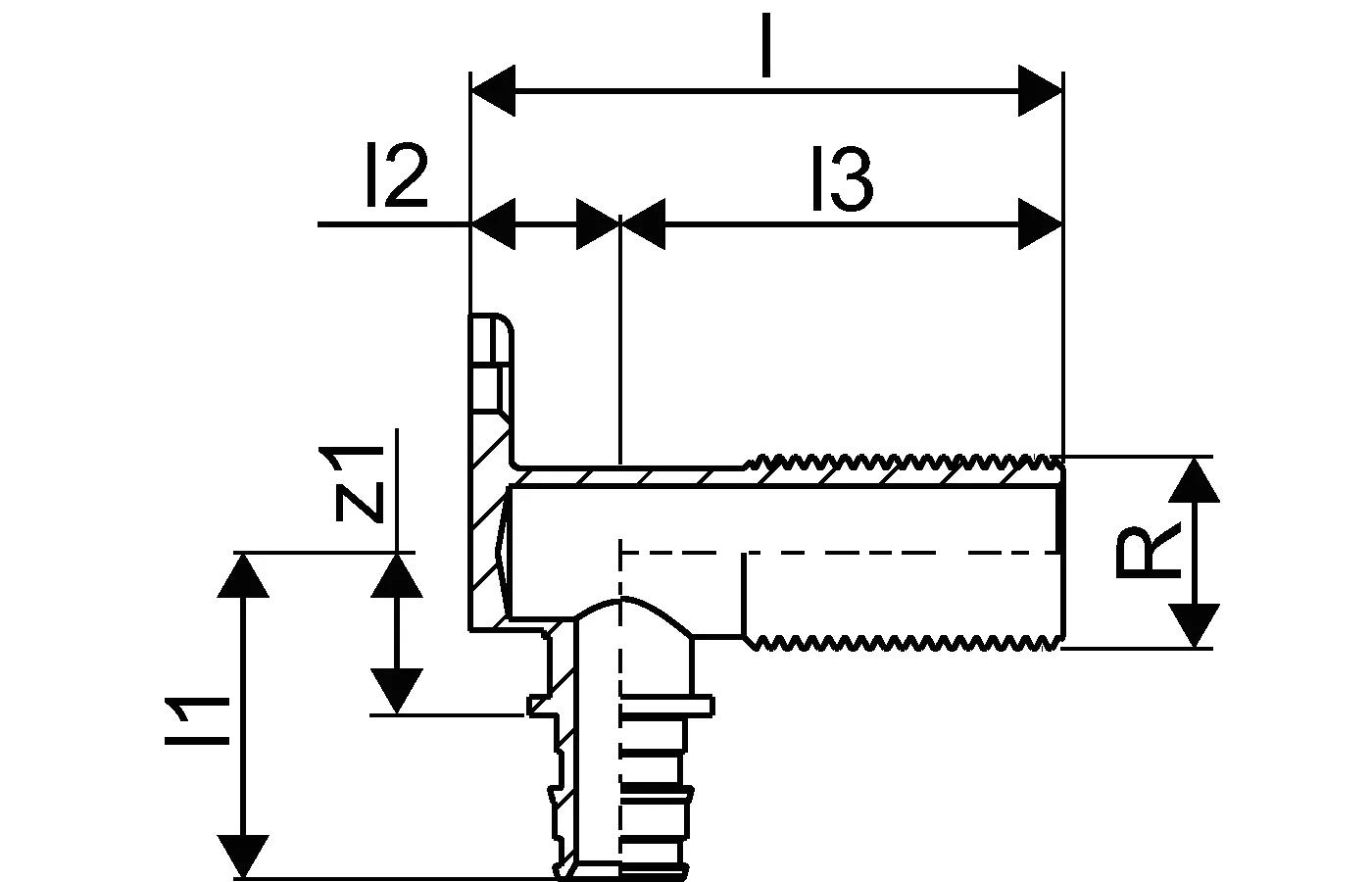

Z-drawing
Rendered

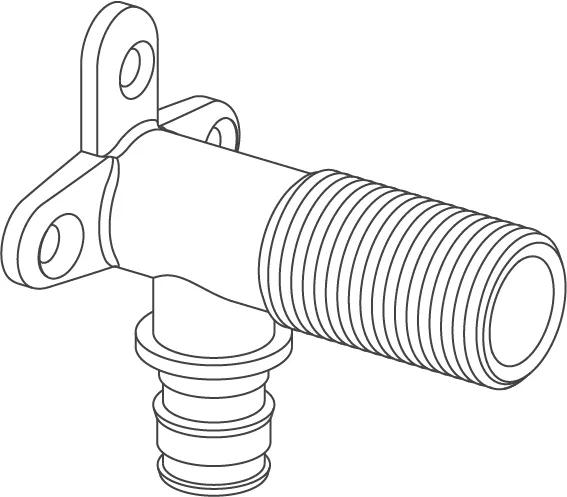

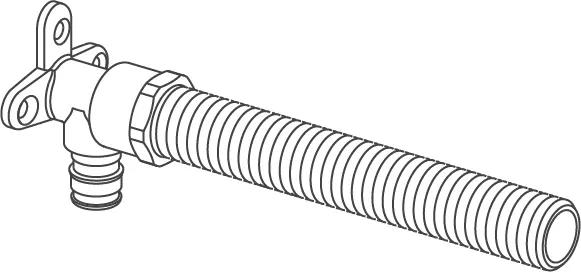

Label drawings
