DeChantal apartments, Saranac Lake, NY, USA

Senior apartment complex replaces leaky copper plumbing with efficient Uponor PEX

An aging apartment complex experiences leaky, failing plumbing

The De Chantal Apartments is an affordable senior housing complex in the heart of the Adirondack Mountains in the northeast portion of New York state. As the apartments began to age, it became clear the 96,000-square-foot building was in need of a plumbing upgrade. The team at Hall Plumbing & Heating called upon Uponor for a PEX plumbing system to confidently and reliably repipe the 45-year-old building.

Ready to repipe?

Renovations of failing plumbing systems are made easier using flexible PEX piping.

Learn more about repiping solutions



Project facts

Saranac Lake, NY, USA
Multi family homes
Completion: 2016

Uponor Involvement

Project highlights

  • 96,000-square-foot multifamily complex
  • Failing copper plumbing repiped with Uponor AquaPEX
  • Contractor: Hall Plumbing & Heating
  • Rep: Northeast Sales Associates LLC
  • Wholesaler: VP Supply

Benefits of Uponor AquaPEX®

  • Pipe's flexibility minimizes impact on existing structure, allowing smaller holes in walls and faster repair times for residents
  • Won't pit, scale or corrode and is highly resistant to freeze damage
  • 25-year transferable warranty for confidence the system is designed to last

This repipe project provides minimal structural impact and high-quality results

The town’s water supply was previously connected to Lake Placid, but after the Health Department codes changed, the town had to drill private wells to supply water to the rest of the village. Due to the poor water conditions, explained Tom Hall, owner of Hall Plumbing & Heating, the copper plumbing system began to fail.

“Ninety percent of the copper leaks are hot water in the solder joints,” explained Steve Ziamandanis from Northeast Sales Associates LLC. “There was no way they were going to repipe the failing copper pipes with copper again, and CPVC would have taken far too long. They chose PEX for the system reliability and efficient installation.”Uponor PEX also allows for longer runs of pipe, which means fewer connections are needed.

Uponor PEX delivers flexibility in installation and peace of mind for residents

The renovation called for repair of the leak damage from the copper pipes in the walls and ceilings as well as a repipe with Uponor AquaPEX® in ½" to 3" pipe sizes. “Installers at Hall Plumbing & Heating worked with Uponor PEX their entire career in ¾" to 1" pipe sizes, but Uponor really responded to their need when they found out about the industry-first Uponor PEX pipe and ProPEX® fitting offering in 2½" and 3" sizes.”

The biggest challenge, as in most repipe jobs, is maintaining the minimum distances between fittings in the preexisting tight spaces. “PEX added the flexibility we needed to maneuver though the building repipe,” said Hall. The building codes and construction would not allow for the use of torches in the ceiling, which made upgrading to the Uponor ProPEX fitting system a smart business choice for the project as it does not require torches, glues or gauges.

For the tenants and crew, staying within the project timeline was nonnegotiable and Uponor PEX was able to deliver a high-quality system on time and within budget. “PEX has a much quicker installation versus copper with half the labor costs,” explained Hall.

Ninety percent of the copper leaks are hot water in the solder joints

De Chantal apartments

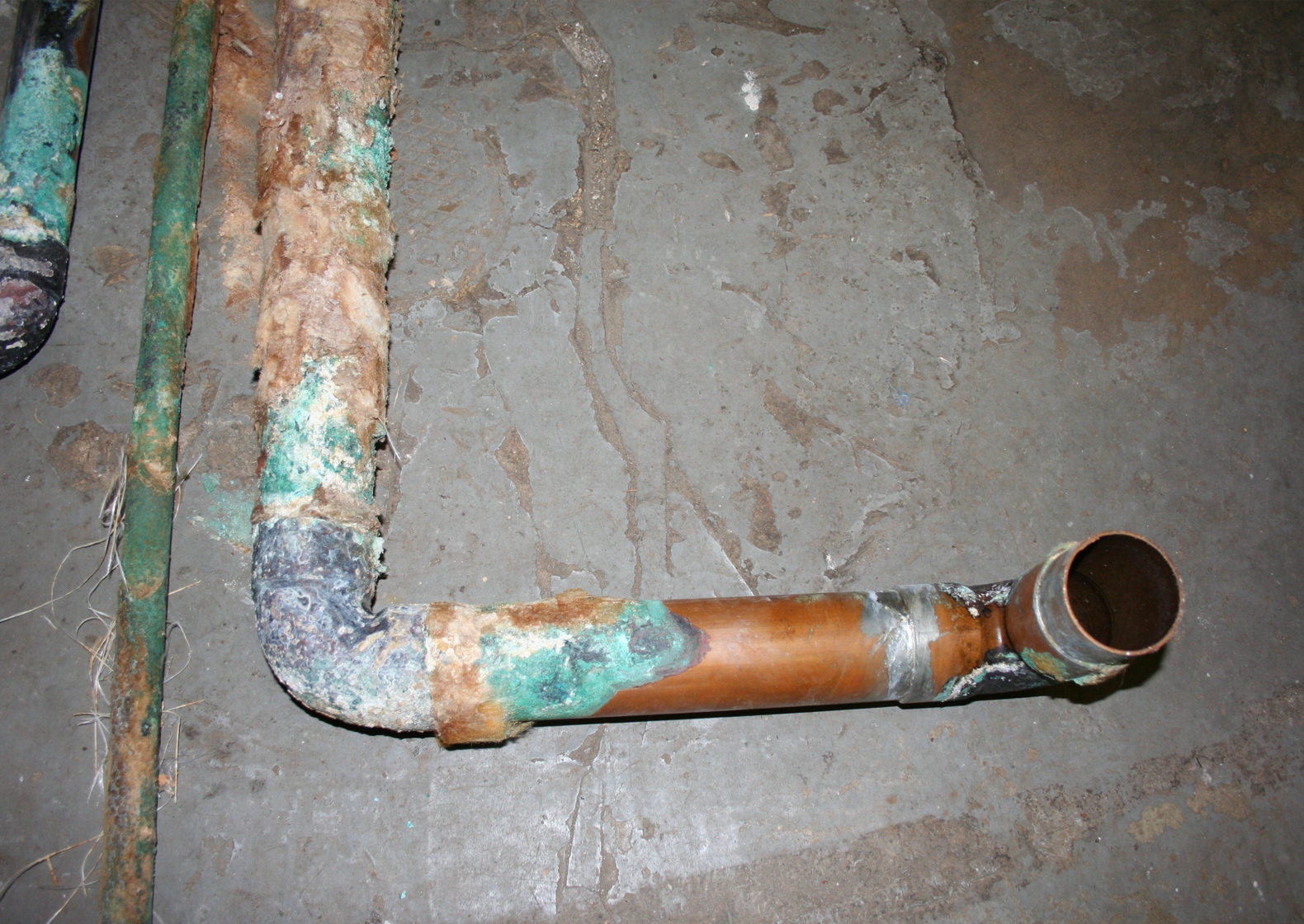

leaky copper pipe before uponor PEX transformation at dechantal apartments in New York

Project information

Project information

Country
USA
Completion
2016
Building Type
Multi family homes
