References

Next stop: comfort, Bad Salzungen, Germany

Next stop: comfort

The municipal housing company GEWOG and the city of Bad Salzungen are redesigning the entire train station area in the spa town. The site includes a historic train station building. After the renovation, a social center will move into the first floor, and 13 apartments will be built on the upper floors and in the attic. To ensure that the future tenants are as comfortable as possible, the choice fell on decentralized apartment stations from KaMo and a combination of different systems for surface heating and cooling from Uponor.

Project facts

Bad Salzungen, Germany
Multi family homes
Radiant heating and cooling, Multilayer pipe systems
Completion: 2020

Uponor Involvement

13 Home stations
7 drinking water stations
650 sqm Uponor Klett | 800 sqm Uponor Contec ON | 200 sqm Uponor Renovis

Reconstruction and redevelopment of the station area

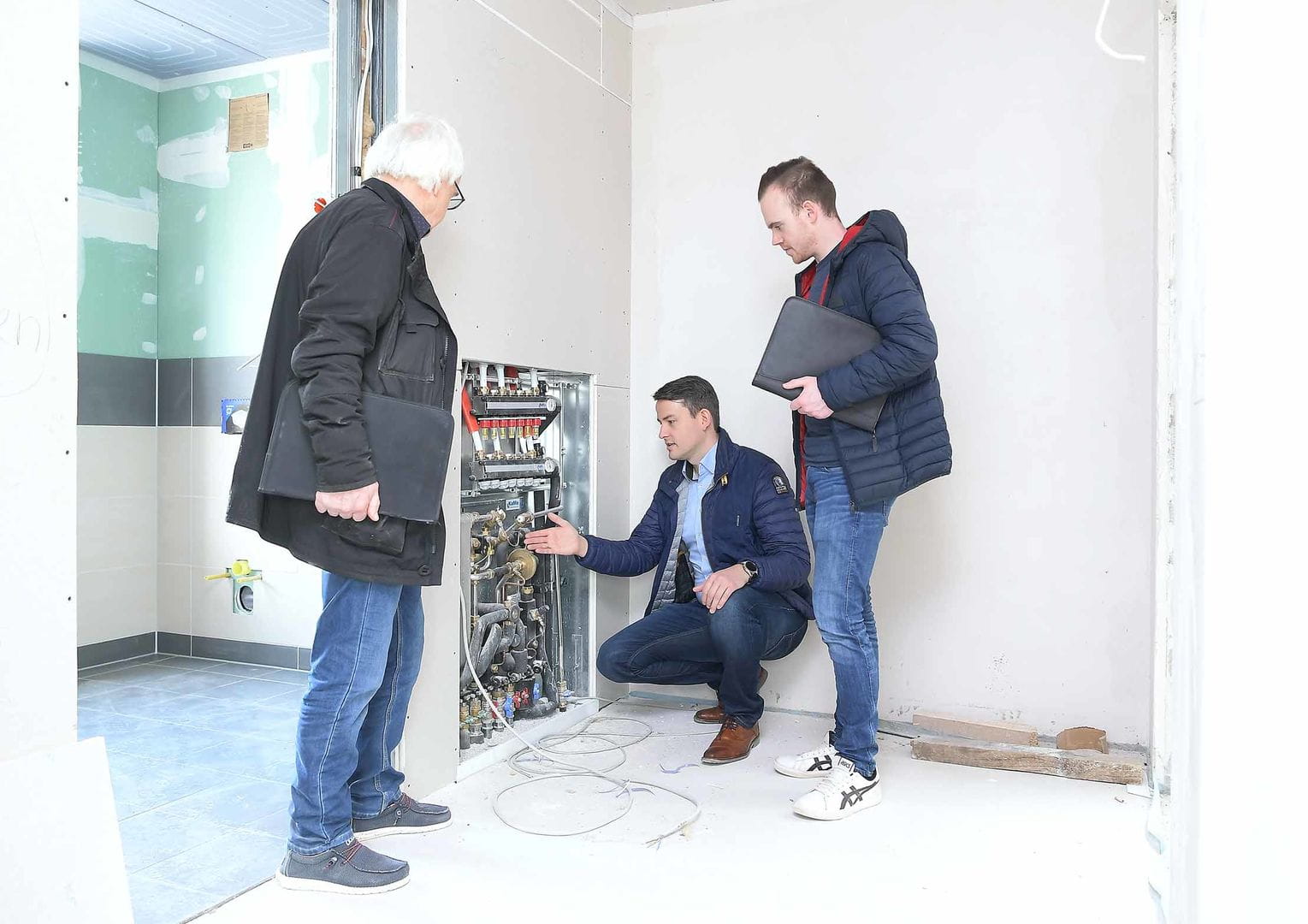

Decentralised flat stations

The decentralised heat distribution in each flat is handled by a flat combination station with a 3-pipe module. The advantage is that the drinking water is heated promptly and according to demand. The temperatures - and thus also the operating costs - are lower than with central systems. Because there are less than three litres of water in the hot water pipes, there is no obligation to test for legionella. More distant taps in seven flats are each supplied by an Aqua Port Compact Base drinking water station.


Surface heating and cooling

Depending on the room height, use and type of construction, different systems are used for surface heating and cooling on the individual floors. For the social centre on the ground floor with its four-metre high rooms, the Uponor Klett underfloor heating system was ideal. For the upper floors with solid concrete ceilings, the specialist planners planned a near-surface component activation with the Uponor Contec ON system. The dry construction system Uponor Renovis is ideal for the wooden ceilings in the attic. Consultants from KaMo and Uponor were on hand to assist the planners, right through to special designs specifically for this building project.



"With the systems from Uponor and KaMo, we were able to optimise three factors at once: living comfort, drinking water hygiene and energy costs," specialist planner Harald Kirchner.

Next stop: comfort

Referenz Bad Salzungen

Project information

Project information

Address
36433 Bad Salzungen
Country
Germany
Website
https://www.badsalzungen.de/de/bahnhofsareal/bahnhofsareal.html
Completion
2020
Project Type
Renovation
Building Type
Multi family homes
Product lines
Uponor Renovis, Uponor Klett, Uponor Contec ON Q&E

Partners

Partners

Builder-owner:
GEWOG GmbH Bad Salzungen
https://www.gewog-basa.de/

Architect:
S&P Sahlmann Planungsgesellschaft für Bauwesen mbH Leipzig
https://sup-gruppe.com/

Construction:
Ingenieurbüro Kirchner (IBK Haustechnik) Bad Salzungen
https://ib-kirchner.de/
