Underfloor heating and cooling

Tacker wet installation

Uponor Tacker underfloor heating wet system for flexible pipe layout

All components of Uponor Tacker are designed to enhance the functionality, safety and ease the installation. The flexible pipe can be adjusted to all room layouts and ensures a consistently cosy and pleasant distribution of heat. All components are designed to ensure optimum safety and reliable operation.

“Cost-efficient system for wet installation with highest flexibility.”

Application areas:

  • Radiant underfloor heating and cooling
  • For wet installations with cement- and anhydrite-based screeds
  • Ideal for new buildings or building geometry where highest flexibility of pipe system is required

Specification:

  • Composite panels or rolls, different thermal and step sound insulation layers
  • Integrated insulation layer and cover
  • Uponor Tacker panel EPS DEO, folded panel with thermal insulation panel, width of 1000 mm and thickness of 20, 30 or 50 mm
  • Uponor Tacker roll EPS DEO, rolled panel with thermal insulation, width of 1000 mm and thickness of 26 mm
  • Uponor Tacker roll EPS DES, rolled panel with thermal insulation and step-sound reduction, width of 1000 mm and thickness of 20, 25, 30, 35 or 40 mm
  • Uponor Tacker roll with graphite for thermal insulation and step-sound reduction, width of 1000 mm and thickness of 25 mm
  • Universal pipe clips for pipe thickness 14 – 20 mm
  • For usage with Uponor MLCP Red pipe 14x1.6, 16x2.0
  • For usage with Uponor MLC pipe white 14x2.0, 16x2.0
  • For usage with Uponor Smart UFH pipe 14 x 2.0, 16x2.0, 20x2.0
  • For usage with Uponor Comfort Pipe PLUS 14x2.0, 16x2.0, 17x2.0, 20x2.0
  • For usage with Uponor Comfort Pipe 16x1,8 and 20x2.0 mm
  • Complete accessories portfolio
Tacker underfloor heating system

Benefits of Tacker underfloor heating wet system

  • Quick and easy one man installation
  • Ergonomic installation with Uponor Tacker tool
  • The staple nails ensure secure positioning in the system foil
  • Robust system for flexible pipe laying

Full product portfolio for Tacker underfloor heating wet system

Wide selection of different panels, pipes, pump groups, compression fittings and accessories, whatever is needed for your project.

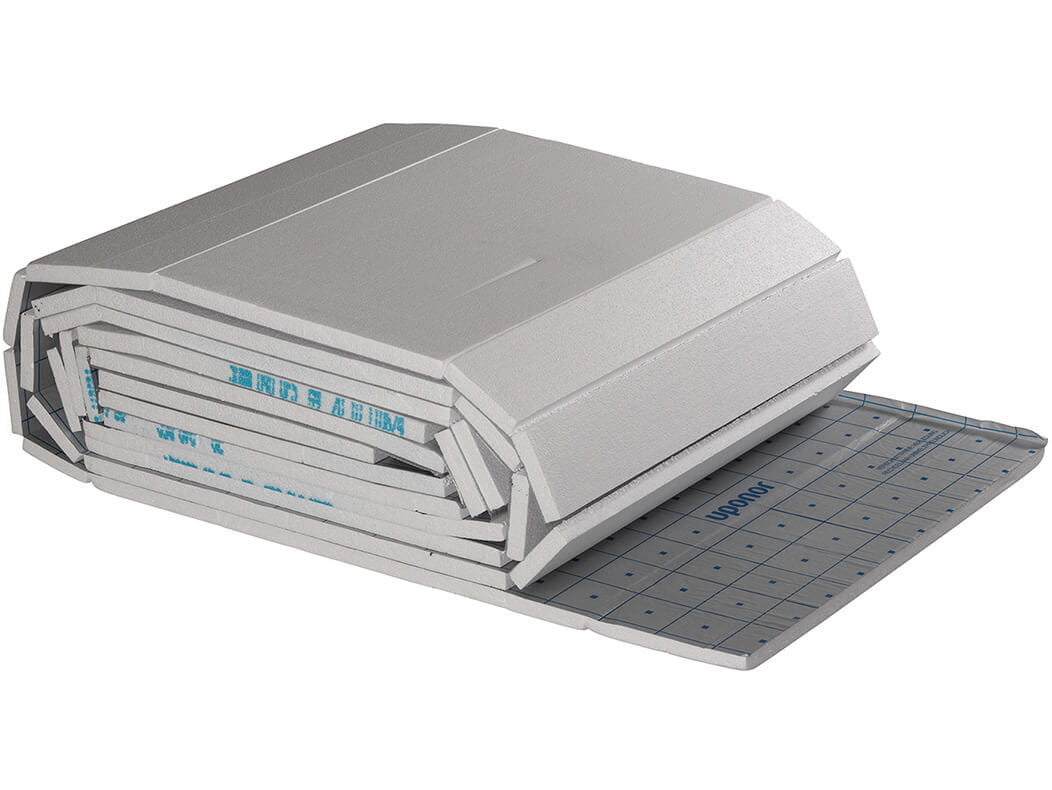

Uponor Tacket panel EPS DEO folded

Uponor Tacker roll EPS DEO/DES

Uponor Tacker roll G EPS DES with graphite

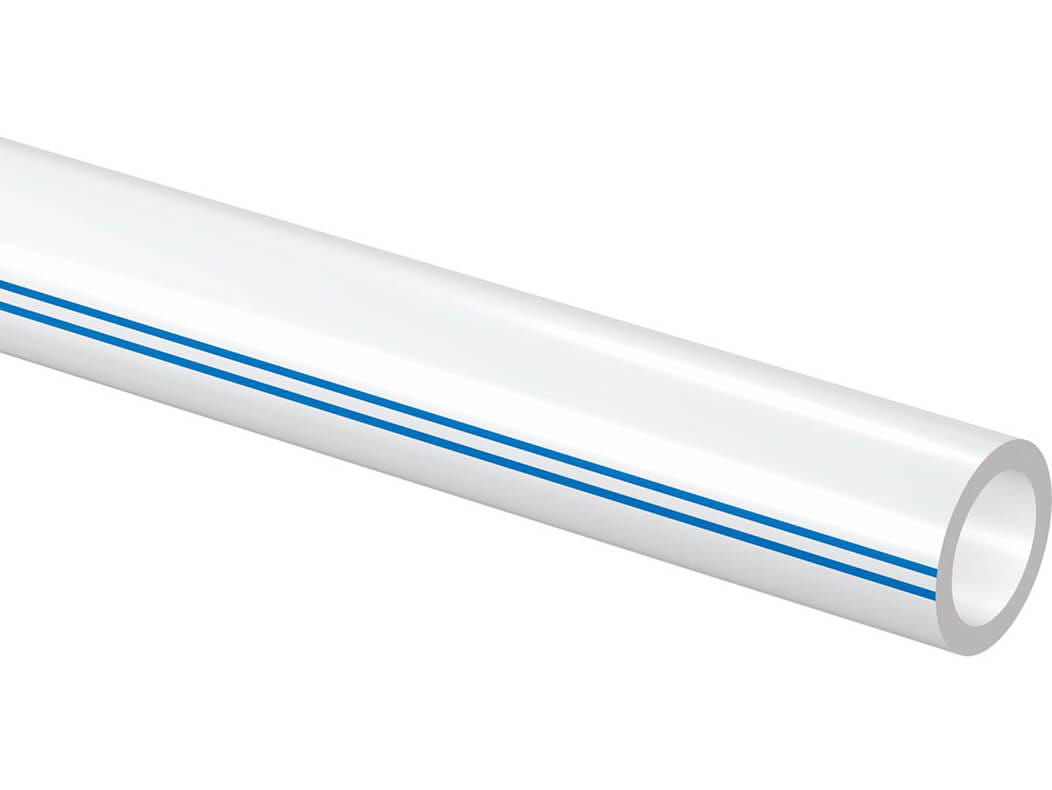

Uponor Comfort Pipe PLUS

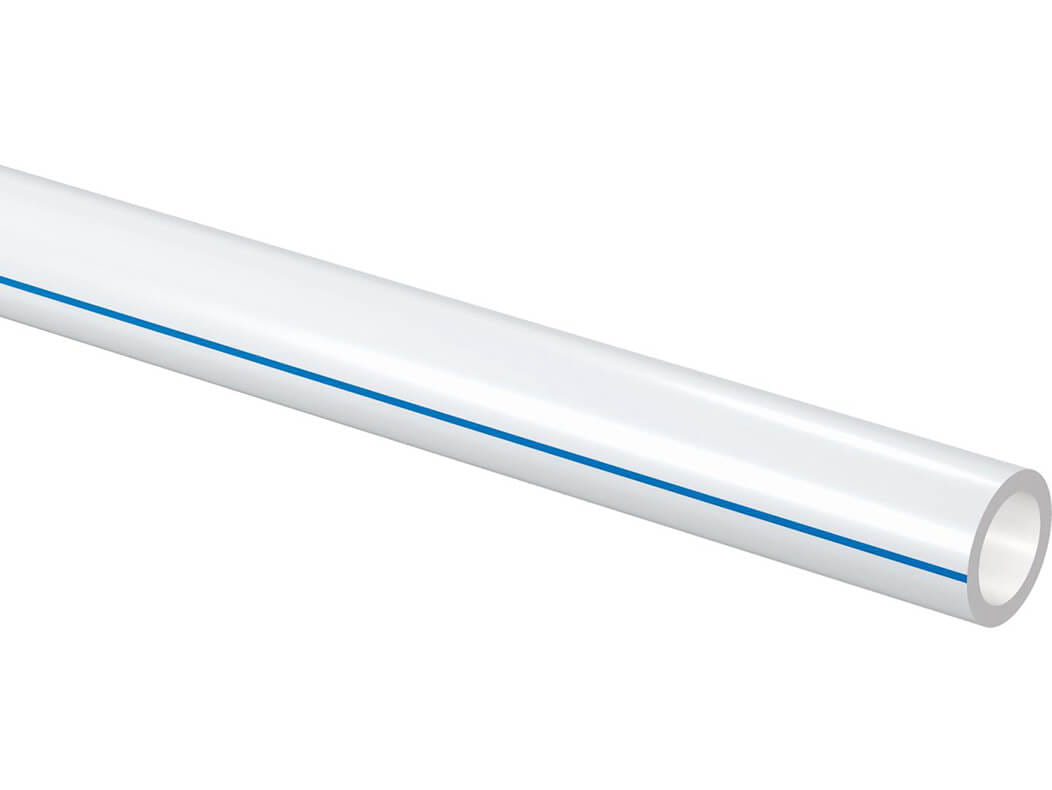

Uponor Comfort Pipe

Uponor Vario compression adapter PEX

Uponor Smart compression adapter

Uponor MLCP red pipe

Uponor Vario Eurocone compression adapter MLCP red

Uponor Multi bend support

Uponor Tacker pipe clip standard

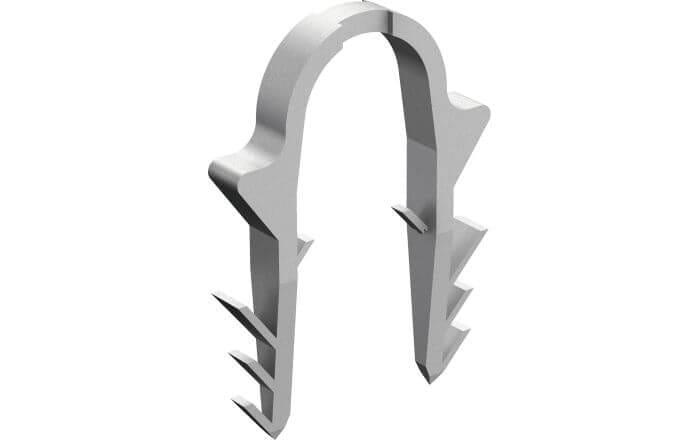

Uponor Tacker pipe clip long

Uponor Tacker pipe clip long

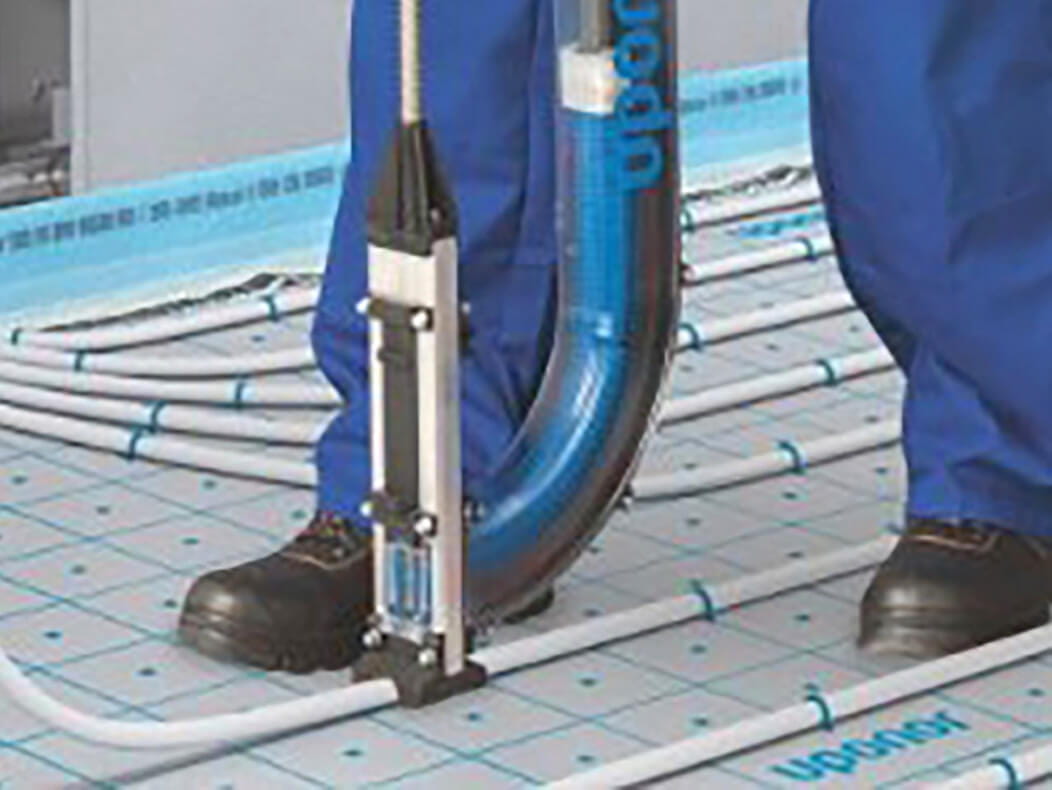

Uponor Tacker tool

Look up or download brochures for Tacker underfloor heating wet installation system

Uponor Tacker underfloor heating wet system

Uponor Tacker underfloor heating wet system

Sales folder

PDF 2 MB
Uponor Tacker underfloor heating wet system

Uponor Tacker underfloor heating wet system

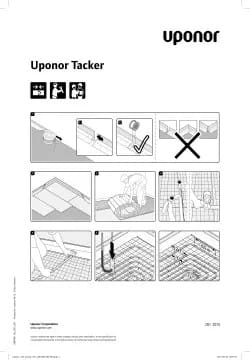

Installation manual

PDF 658 KB
Uponor Tacker underfloor heating wet system

Uponor Tacker underfloor heating wet system

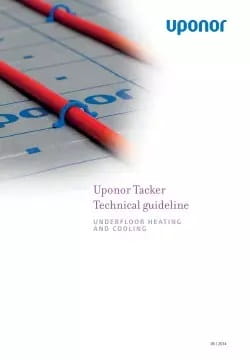

Technical information

PDF 576 KB
Uponor Tacker underfloor heating wet system with MLCP red

Uponor Tacker underfloor heating wet system with MLCP red

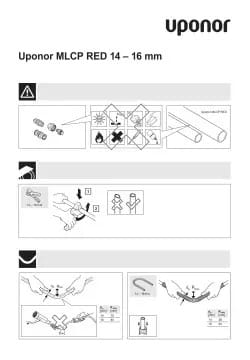

Installation manual

PDF 486 KB

Select Uponor underfloor heating and cooling wet installation system to suit your individual requirements

Underfloor heating systems in residential and commercial buildings which mainly require heating are often the first choice. And since the requirements for the design and function of an underfloor heating can differ very much, Uponor offers tailor-made solutions not only for new buildings, but also for renovation. To increase comfort, these systems can also be used to cool rooms.

Minitec wet installation

  • Direct laying possible on the existing top flooring, ideal for renovation
  • Efficient usage of regenerative energies also in old buildings

Tecto wet installation

  • Broad usage – from single-family houses through to large-scale commercial objects
  • Norm-compliant vertical and horizontal pipe position allows even screed covering

Nubos wet installation

  • Only few optimally harmonised components
  • Nub panels for norm-compliant fixation of the pipes

Comfort Air wet installation

  • Combined heating, cooling and ventilation system
  • Significantly increased comfort thanks to draught-free and silent heating, cooling and ventilation

Klett wet installation

  • Rapid laying without special tools
  • Reliable through long-year tried-and-tested Uponor quality

Classic wet installation

  • Free insulating material selection for a wide range of applications
  • Norm-compliant vertical and horizontal pipe position allows even screed covering
