Minitec - retrofit underfloor heating

Minitec - low building floor heating with quick response time

Thanks to its minimal depth of around 1 cm, Uponor Minitec is the perfect system for renovation projects. The Uponor Minitec sheeting element, with the Uponor PE-Xa pipes measuring 9.9x1.1 mm, is easy to lay on existing screed, timber or tiles. The adhesive layer on the back of the sheet guarantees a secure bond during installation. The levelling layer is installed just above the studs, resulting in an increase in floor height of only 16 mm. Minitec is also possible to be installed with defined floor insulation materials. The special design of the sheeting elements ensures that the levelling compounds flow well and can bond directly with the substrate.

Application areas:

  • Radiant underfloor heating and cooling
  • Wet installation
  • Residential and commercial applications
  • For use with qualified filler materials

Specification:

  • Panel size: 1120 x 720 mm
  • Total panel height: 12 mm
  • Pipe dimensions: 9.9 x 1.1 mm
  • EN 13501-1 fire classification class E
  • Pipe spacing: 5, 10 or 15 mm
  • Net surface with overlapping nubs: 0.77 m²

Learn how to retrofit Uponor Minitec underfloor heating

  • Check out the video that explains the basic principle of how Uponor minitec underfloor heating is installed.

Benefits of the Uponor Minitec System

Construction of Uponor underfloor heating system Minitec

Look up or download brochures for minitec low profile underfloor heating

Uponor Minitec low profile underfloor heating

Uponor Minitec low profile underfloor heating

Product information

PDF 187 KB
Uponor Minitec

Uponor Minitec

Technical product information

PDF 4 MB
Uponor Minitec

Uponor Minitec

Installation and operational manual

PDF 3 MB

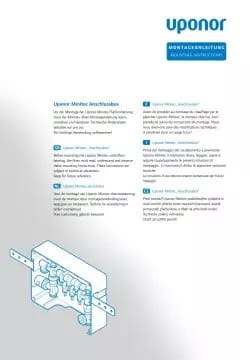

Uponor Minitec connection box

Uponor Minitec connection box

Mounting instructions

PDF 649 KB

Select Uponor underfloor heating and cooling wet installation system to suit your individual requirements

Underfloor heating systems in residential and commercial buildings which mainly require heating are often the first choice. And since the requirements for the design and function of an underfloor heating can differ very much, Uponor offers tailor-made solutions not only for new buildings, but also for renovation. To increase comfort, these systems can also be used to cool rooms.

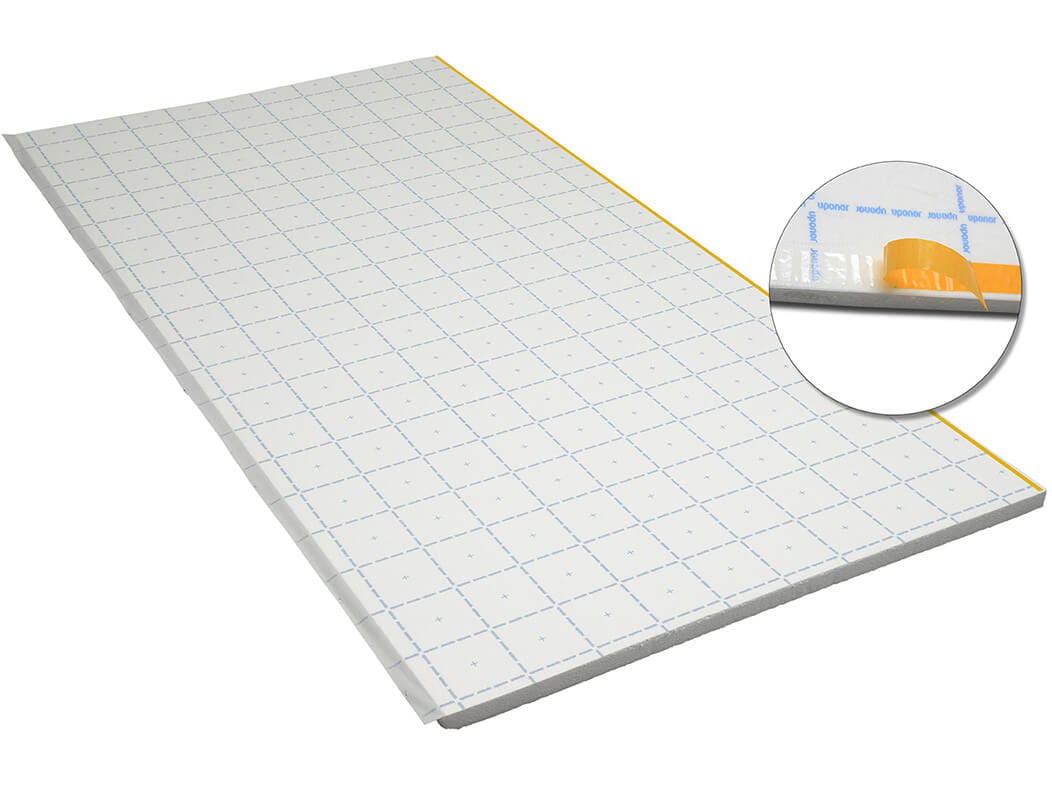

Klett wet installation

  • Rapid laying without special tools
  • Reliable through long-year tried-and-tested Uponor quality

Comfort E electric underfloor heating

  • Flexible installation options for any floor type in new-build and renovation projects
  • Easy to install and create your comfortable place in no time at all

Tecto wet installation

  • Broad usage – from single-family houses through to large-scale commercial objects
  • Norm-compliant vertical and horizontal pipe position allows even screed covering

Classic wet installation

  • Free insulating material selection for a wide range of applications
  • Norm-compliant vertical and horizontal pipe position allows even screed covering


Nubos wet installation

  • Only few optimally harmonised components
  • Nub panels for norm-compliant fixation of the pipes

Siccus dry installation

  • Light and easy-to-work dry construction for floor and wall installation
  • No additional moisture permeation into the building through dry construction

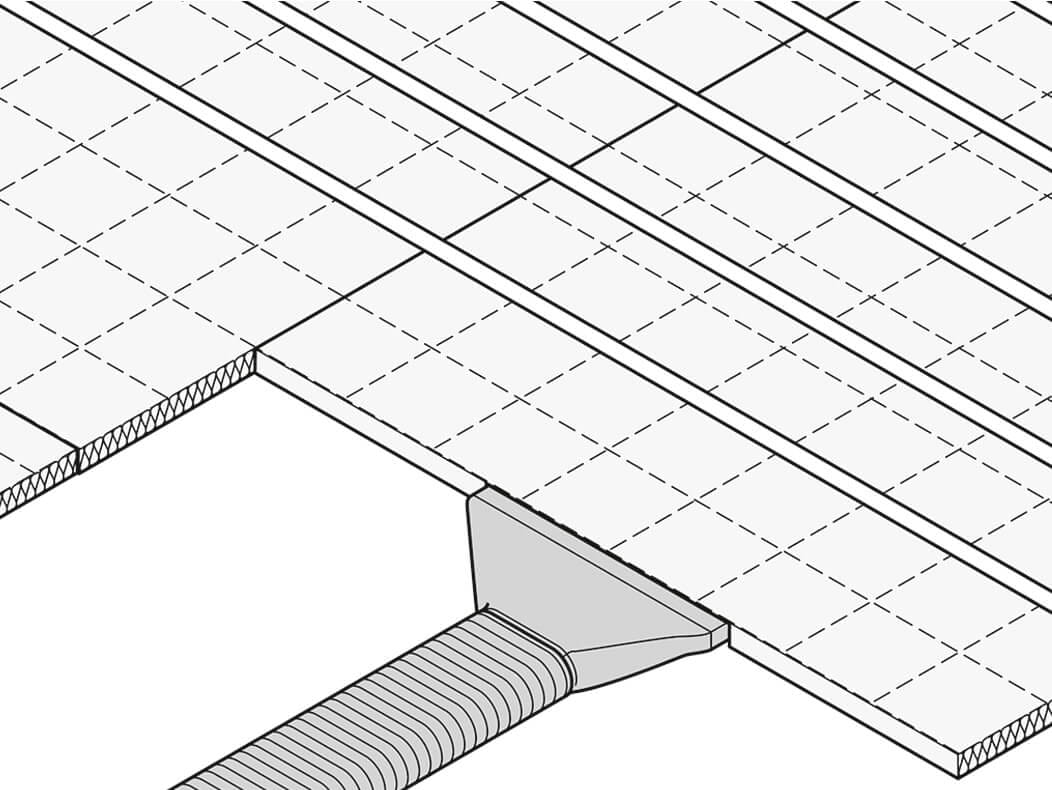

Comfort Air wet installation

  • Combined heating, cooling and ventilation system
  • Significantly increased comfort thanks to draught-free and silent heating, cooling and ventilation

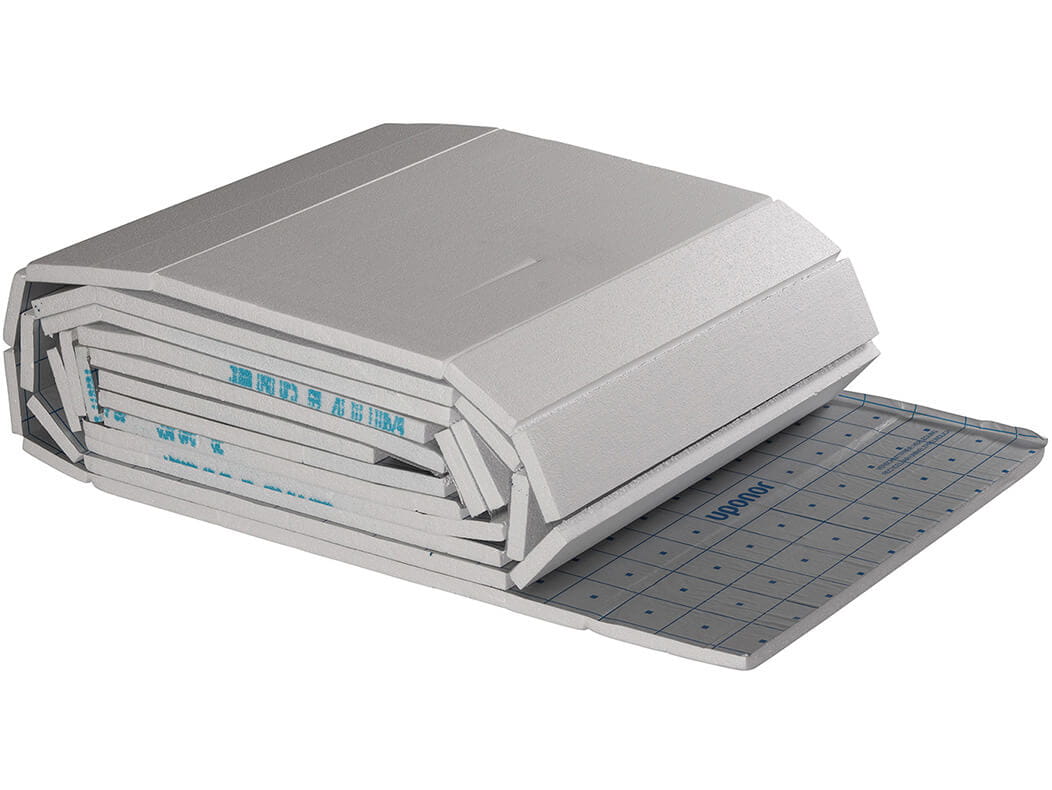

Tacker wet installation

  • Broad usage – from single-family houses through to large-scale commercial objects
  • Norm-compliant vertical and horizontal pipe position allows even screed covering

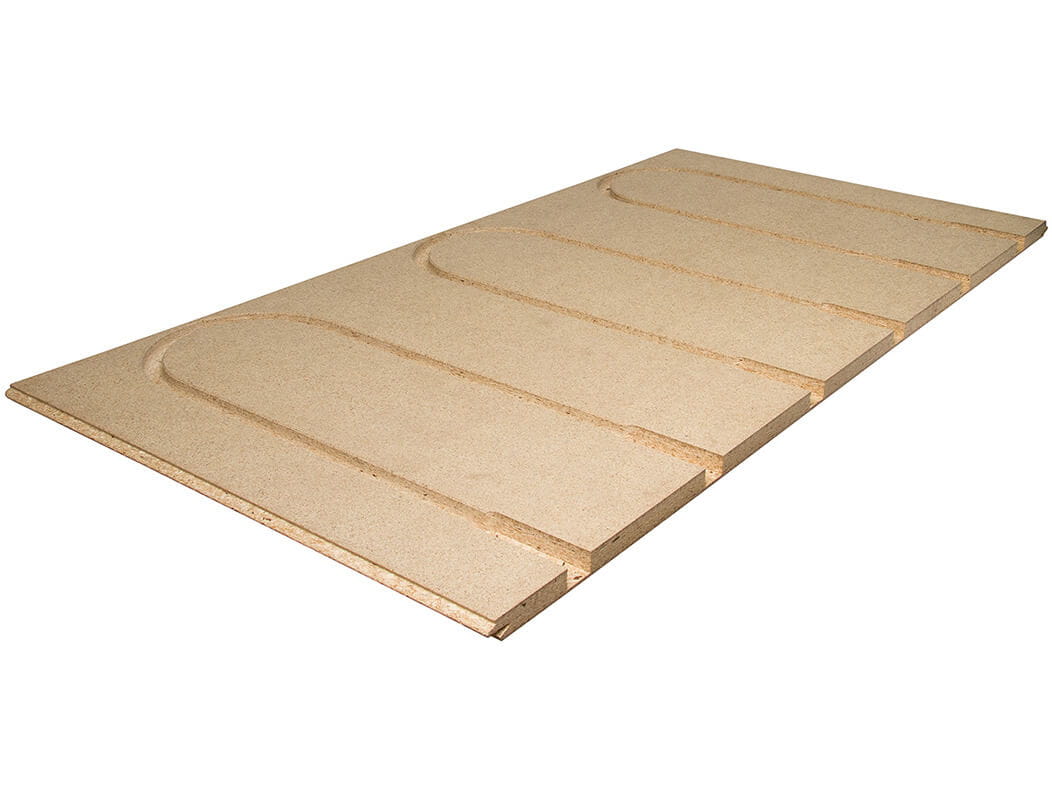

Tignum

  • Suitable for many "on joist" floor constructions
  • Low static weight and low floor construction

Sport

  • No disturbing or even dangerous system components in the way of the occupants
  • Hygienic and easy-to-clean sports floor surface

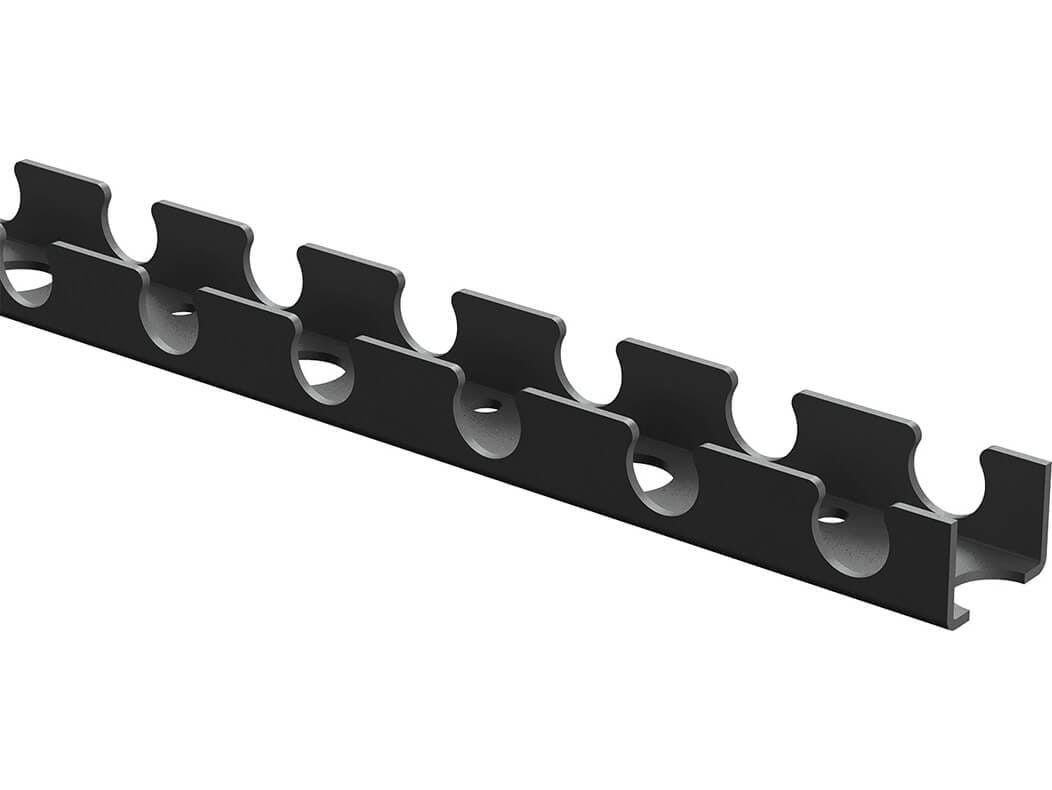

Magna

  • Optimal space utilisation without interfering system components
  • Economical through rapid amortisation and minimal maintenance costs

Meltaway

  • Reliable snow and ice elimination of exposed traffic surfaces
  • Utilisation of exhaust heat, for example from industrial production possible

Neva

  • For outdoor lawn heating in stadiums
  • Reduced danger of injury for the players
  • Matches possible throughout the year without cancellation of fixtures due to the weather
