Underfloor heating and cooling

Nubos wet installation system

Uponor Nubos underfloor heating system is the all-round system for installation in new residential and commercial buildings

Nubos are perfectly coordinated system components to create customised solutions for all common screed types, areas of application and room layouts. The different panel types for different design variants can be laid quickly with virtually no cut-offs. The wet installation system also includes additional sets for laying near distribution units and door openings.

The studded sheeting elements ensure that they are laid quickly and in compliance with standards. The system pipes are fixed into place by the system studded sheeting elements and optimally surrounded by screed.


Benefit from quality characteristics that ensure complete transfer of the calculated heat output, sensitive control behaviour and economical, energy-saving operation.

“Profit from long-term, proven Uponor quality.”

Application areas:

  • Radiant underfloor heating and cooling
  • Wet installation
  • Ideal for new residential and commercial buildings
  • For various floor constructions and load-bearing requirements
  • For use with cement- and anhydrite-based screeds
  • Proven and approved solutions with reduced construction available for cement and anhydrite based screed

Specification:

  • Nub panel available in thickness 30-2 mm, with thermal insulation (EPS HBCD free) and step sound reduction
  • Nub panel available in thickness 11 and 18 mm, with thermal insulation panel (EPS HBCD free)
  • Nub foil for installation on top of insulation
  • Uponor Smart UFH pipes 14x2.0 mm and 16.2.0 mm
  • Uponor Comfort Pipe PLUS 14x2.0 mm and 16x2.0 mm
  • Complete accessories portfolio

Benefits of the Uponor Nubos underfloor heating system

Full product portfolio for Nubos underfloor heating

Wide selection of different nap panels, pipes, fixing items, compression fittings, press couplings, whatever is needed for your project

Uponor Nubos panel

Uponor Nubos panel 11 mm

Uponor Nubos foil

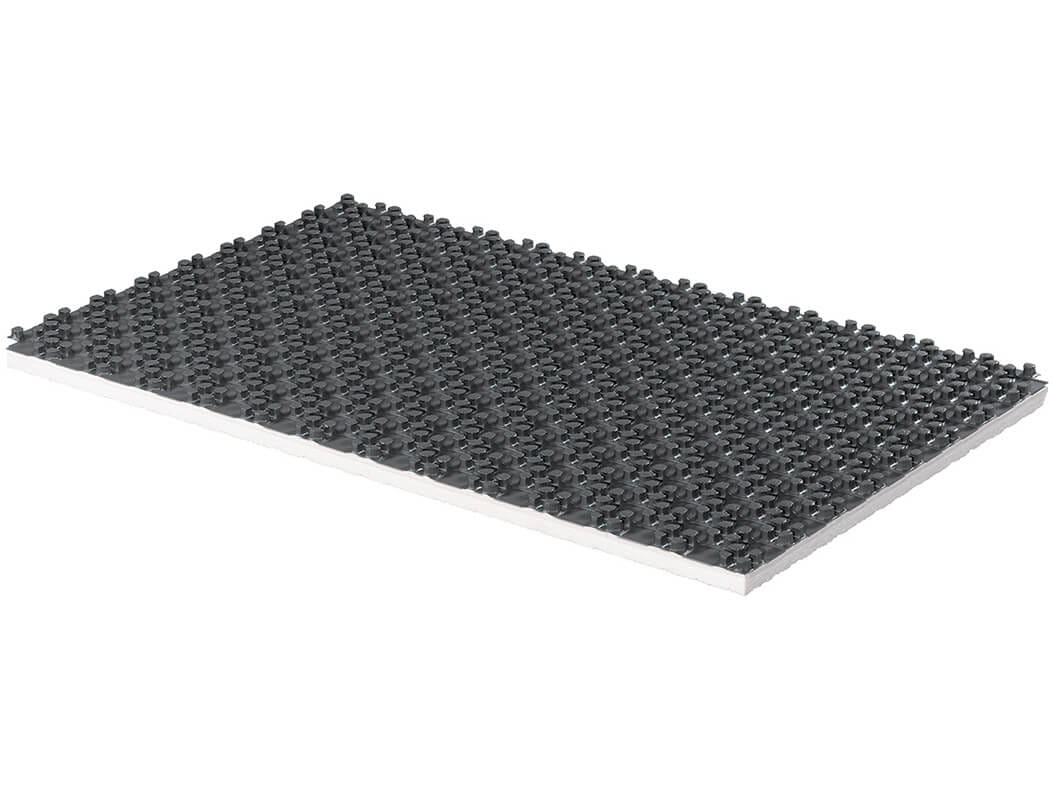

Uponor Nubos set

Uponor Comfort Pipe PLUS

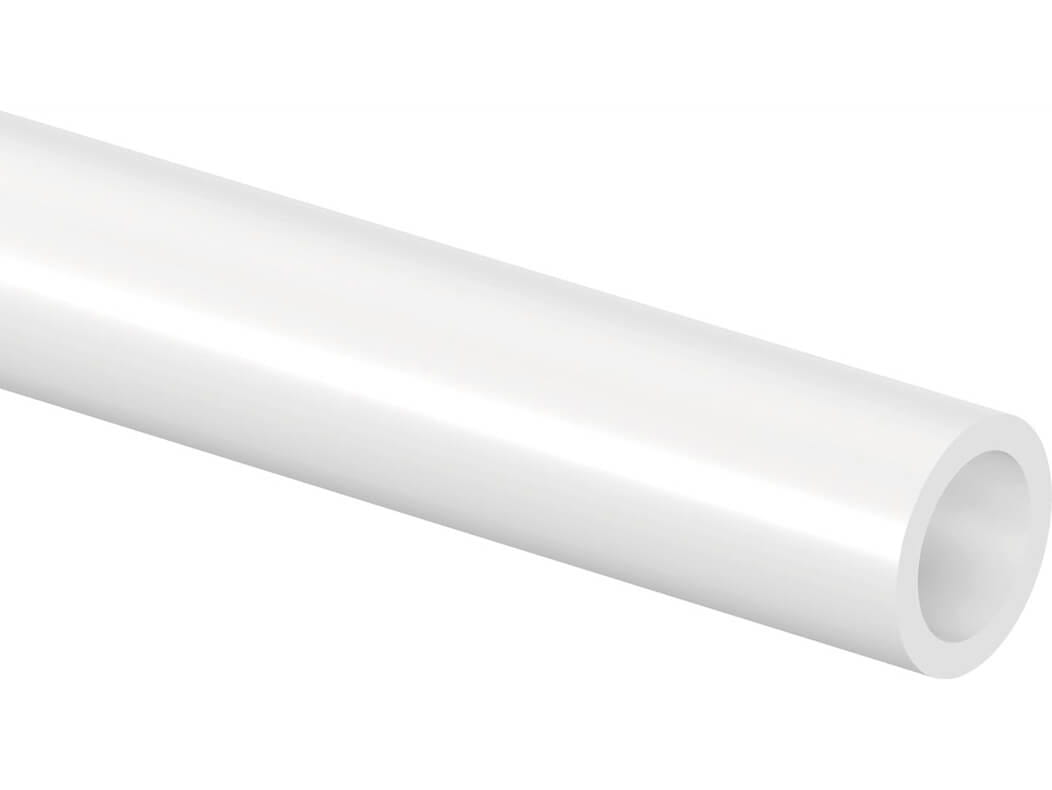

Uponor Smart UFH pipe

Uponor Vario compression adapter PEX

Uponor MLCP RED pipe (only for DE, AT, CH, NL

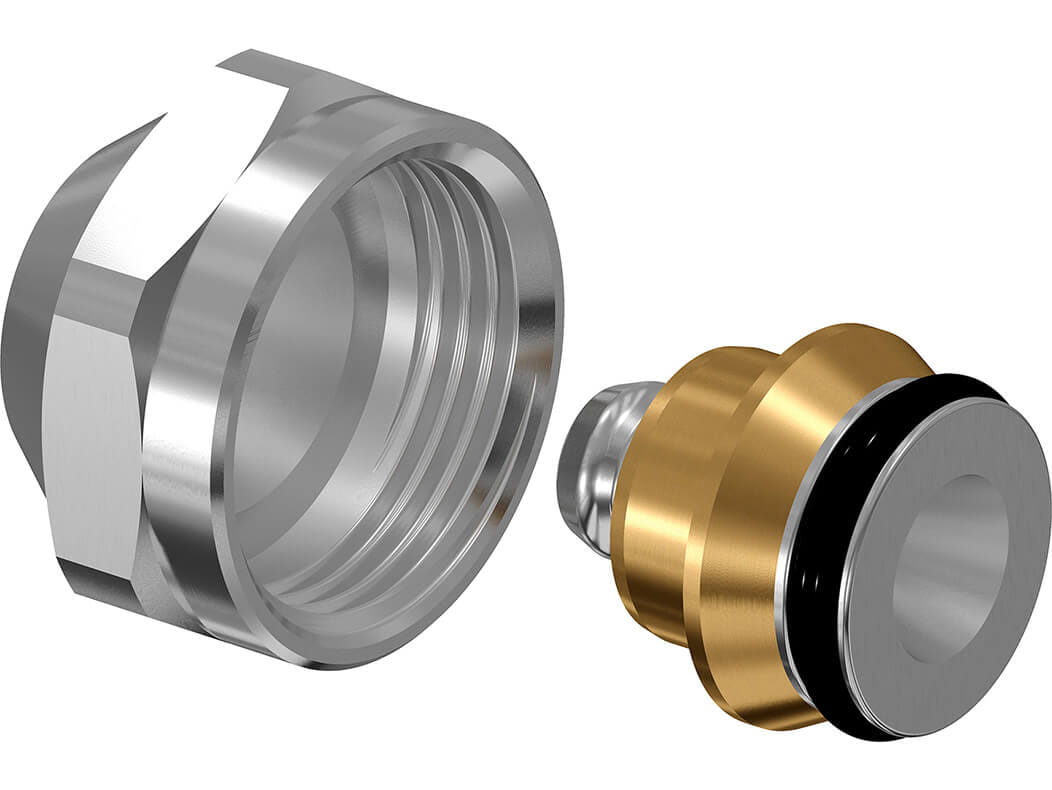

Uponor Uni-X compression adapter MLC

Uponor Multi bend support plastic

Look up or download brochures for Nubos underfloor heating

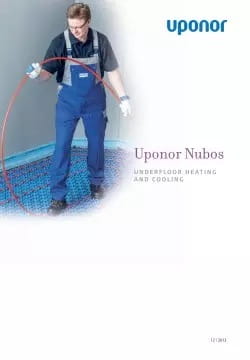

Uponor Nubos wet installation underfloor heating

Uponor Nubos wet installation underfloor heating

Sales folder

PDF 698 KB

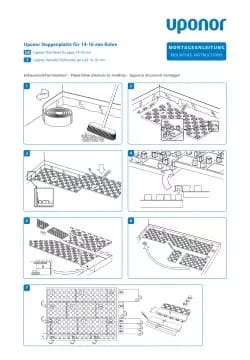

Uponor Nubos wet installation underfloor heating

Uponor Nubos wet installation underfloor heating

Installation manual

PDF 1011 KB

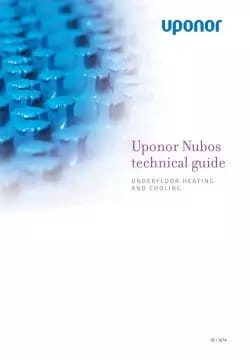

Uponor Nubos wet installation underfloor heating

Uponor Nubos wet installation underfloor heating

Technical information

PDF 973 KB

Select Uponor underfloor heating and cooling wet installation system to suit your individual requirements

Underfloor heating systems in residential and commercial buildings which mainly require heating are often the first choice. And since the requirements for the design and function of an underfloor heating can differ very much, Uponor offers tailor-made solutions not only for new buildings, but also for renovation. To increase comfort, these systems can also be used to cool rooms.

Classic wet installation

  • Free insulating material selection for a wide range of applications
  • Norm-compliant vertical and horizontal pipe position allows even screed covering

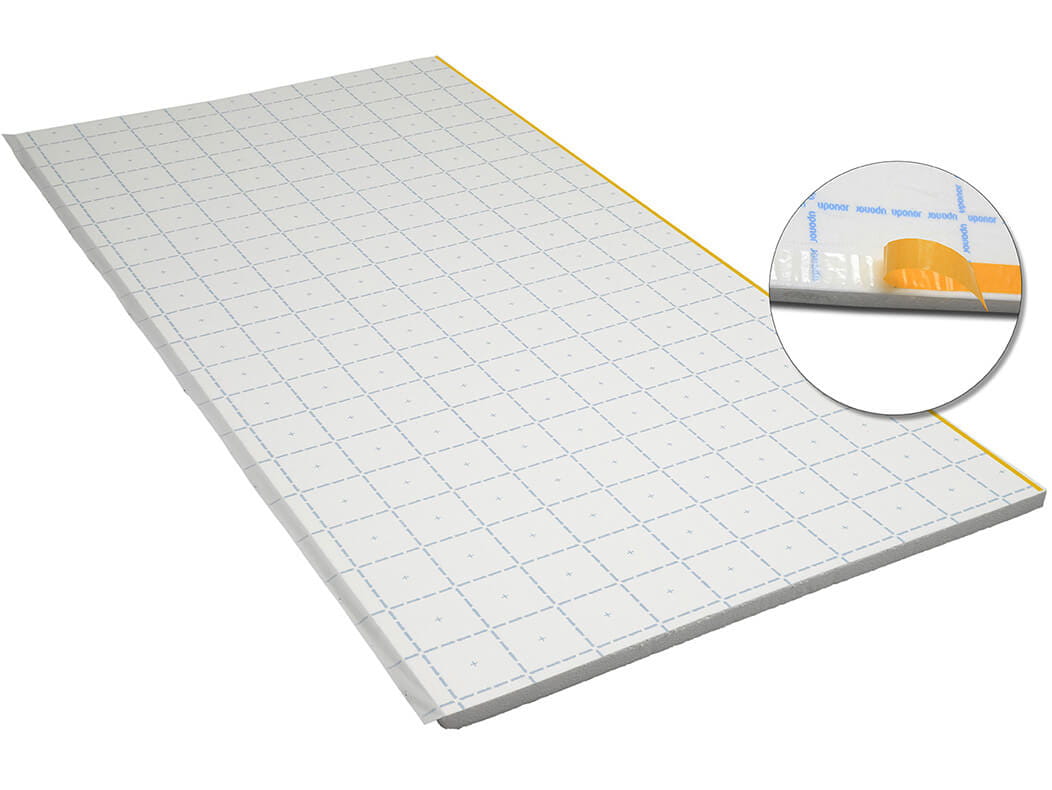

Klett wet installation

  • Rapid laying without special tools
  • Reliable through long-year tried-and-tested Uponor quality

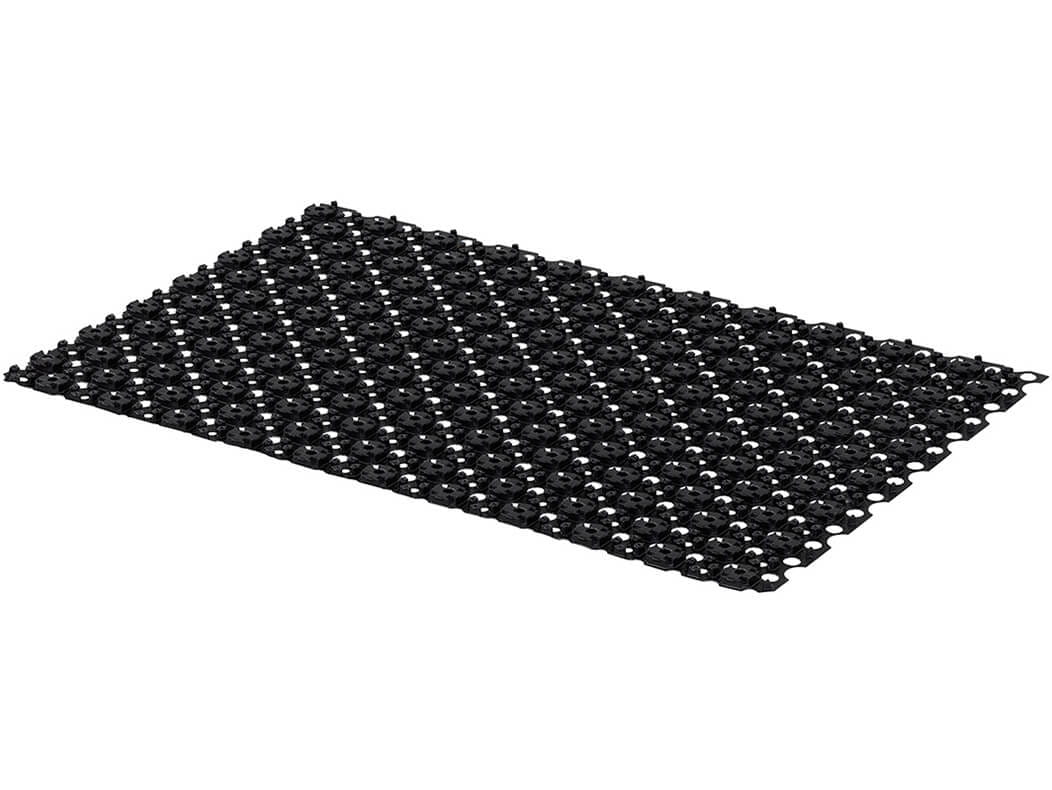

Minitec wet installation

  • Direct laying possible on the existing top flooring, ideal for renovation
  • Efficient usage of regenerative energies also in old buildings

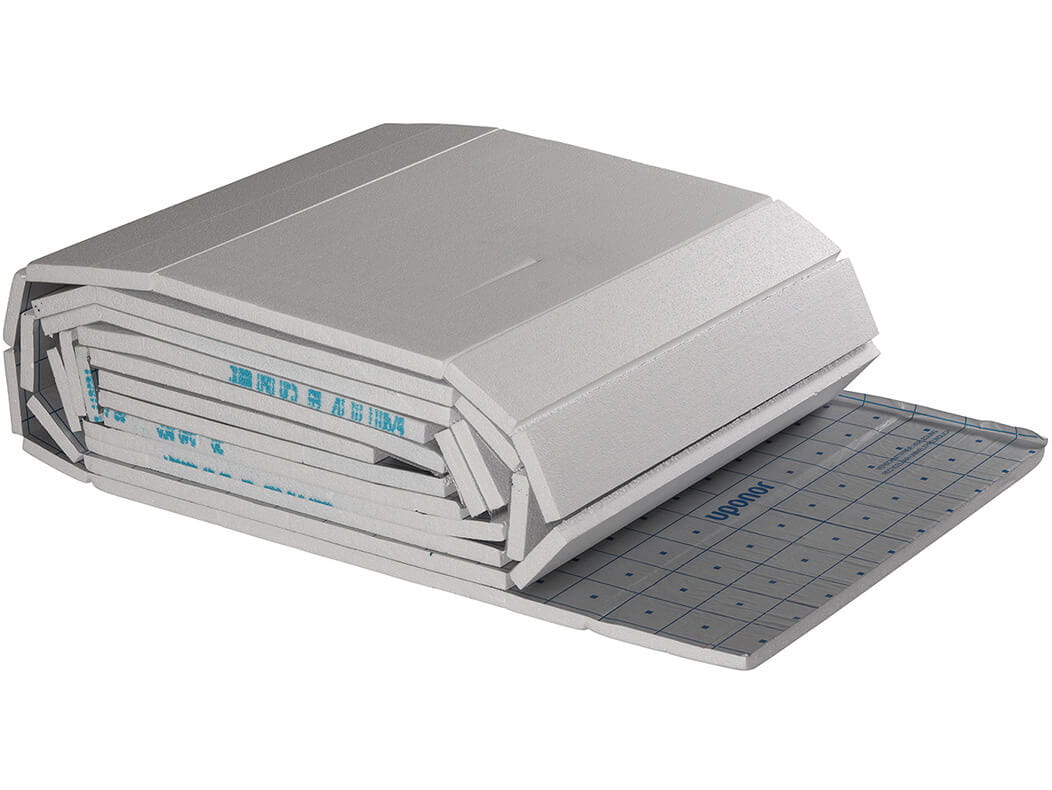

Tacker wet installation

  • Broad usage – from single-family houses through to large-scale commercial objects
  • Norm-compliant vertical and horizontal pipe position allows even screed covering

Siccus dry installation

  • Light and easy-to-work dry construction for floor and wall installation
  • No additional moisture permeation into the building through dry construction

Tignum

  • Suitable for many "on joist" floor constructions
  • Low static weight and low floor construction

Calma

  • Sound reduction included
  • Suitable for both wooden and concrete floors
