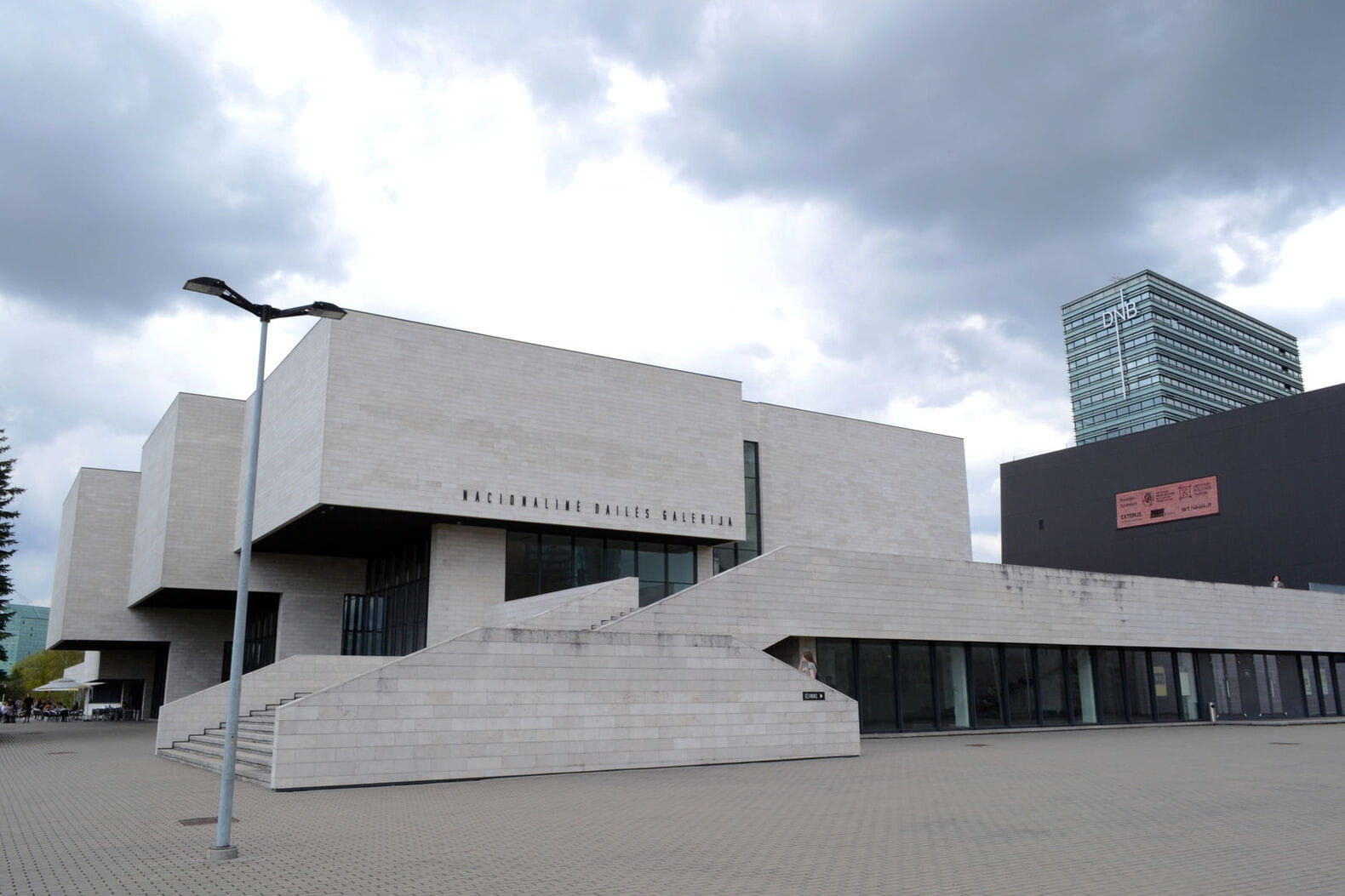

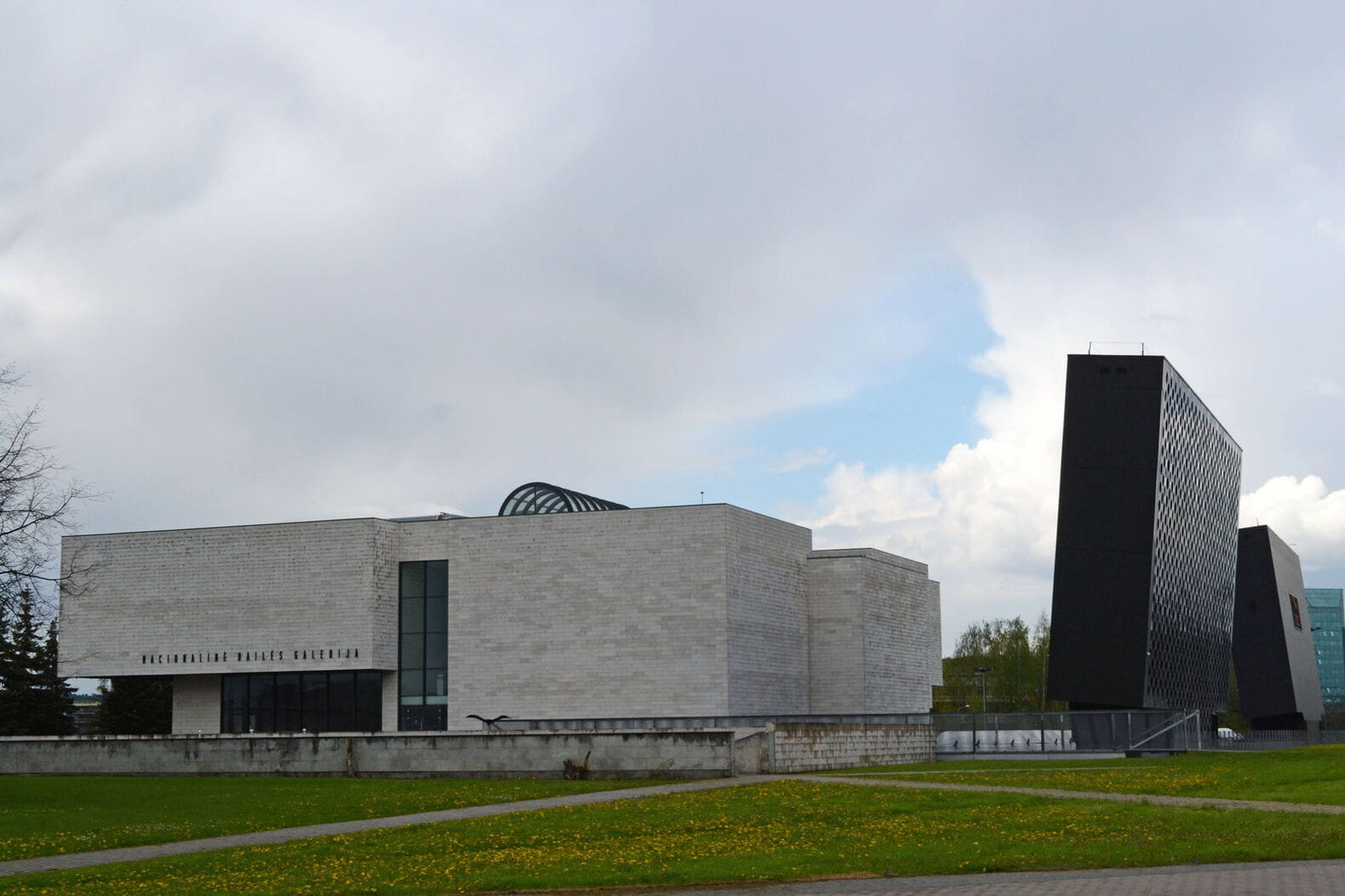

Lithuanian National Art Gallery, Vilnius, Lithuania
Lithuanian National Art Gallery
Architects Audrius Bučas, Darius Čaplinskas and Gintaras Kuginis were commissioned with the reconstruction and renovation of the National Art Gallery, and in 2009, after 5 years of building work, it was re-opened. The architects retained the building‘s primary structure, added an extension and supplemented the building with new forms and materials.
The Lithuanian National Art Gallery now houses exhibitions of XX and XXI century modern and contemporary art.
The reconstructed building was designed to be a modern reinforced concrete structure that required high-quality, long-lasting engineering systems. Furthermore, the total area of the National Art Gallery is over 10,000 m2, with a capacity of 57,800 m3. In winter, the cost of heating this type of building is enormous.
It was therefore essential for the heating system to be extremely high-performing and economical, as well as fulfilling a number of very specific requirements:
• No heating appliances should rival with art pieces or interfere with an exhibit’s artistic value
• No defacing of the building‘s interior
• No damage to the art on display
Aerial heating devices and convection hot and dry air streams were ruled out as they might cause expensive and lasting damage to art work.
Uponor radiant underfloor heating was chosen as the predominant heating system, providing a range of advantages:
• Radiant floor heating transmits energy evenly throughout an entire room
• The temperature of heated surfaces remains close to room temperature
• Art pieces are protected from the adverse effects of air convection
• Visitors can enjoy art exhibits in an optimized indoor climate
The low operating temperature required for radiant floor heating enables optimal efficiency of heat sources. This saves more than 20% of heating costs compared to convection heating methods, an important consideration for such a large building.
Uponor also provided a tap water plumbing system that delivers fresh water safely and reliably, ensuring that the highest levels of hygiene are met at all times.
Uponor products used
For underfloor heating:
• Uponor Classic (Classic 20) floor heating system
• Vario PLUS manifolds
For tap water plumbing:
• PE-Xa pipes
• Quick & Easy fittings
Varicool heating and cooling panels were installed to the meeting room's ceiling. The new hydronic system replaced the old fan coil unit system. Varicool system is a radiant heating and cooling system. The panels do not heat or cool the indoor air directly but the surfaces what radiant covers.
