Underfloor heating and cooling

Fix wet installation

Uponor fix wet underfloor heating installation - ideal for new residential and light commercial buildings

Fix is a clamp track system with perfectly tuned system components. Installation is possible on top of any flooring thermal and impact noise insulation. The clamp tracks can be fixed by tape or integrated pint to enable easy installation of the pipes.

“Easy and flexible system components for all types of screeds.”

Application areas:

  • Radiant underfloor heating and cooling
  • Radiant wall and ceiling heating and cooling
  • Wet installation
  • Ideal for new residential and multi family homes
  • For use with cement- and anhydrite based screed

Specification

  • Clamp tracks for pipe fixation
  • Include your local pipe types only:
  • Uponor Comfort Pipe 9.9x1.1mm, 12x1.7 mm, 20x2.0 mm
  • Uponor Comfort Pipe PLUS 14x2.0 mm, 16x2.0 mm, 17x2.0 mm, 20x2.0 mm
  • Complete accessories portfolio

Get more details on Uponor Fix underfloor heating system

Full product portfolio for fix underfloor heating

Wide selection of different clamp tracks, PEX pipes, fixing items, compression fittings, whatever is needed for your project.

Uponor Multi foil

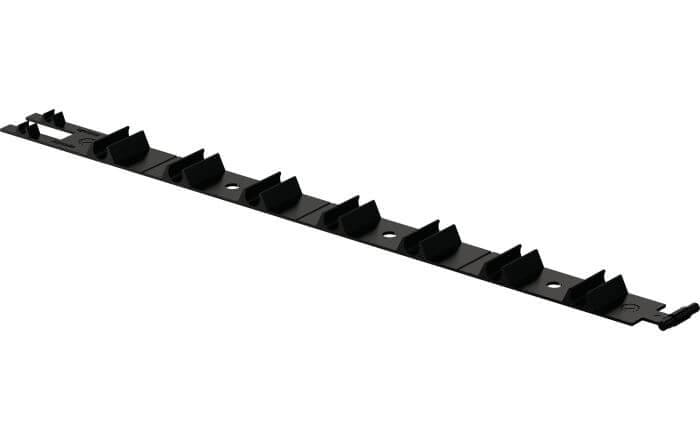

Uponor Fix clamp trackt without pins for pipes 12 mm

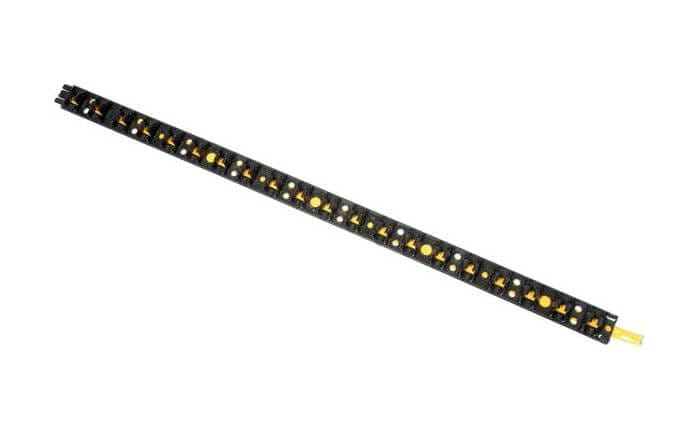

Uponor Fix clamp track with glue for pipes 14 - 20 mm

Uponor Fix clamp track strip with pins for pipes 17 - 20 mm

Uponor Fix pipe pin clip for pipe dim 20 mm

Uponor Comfort Pipe PLUS

Uponor Comfort Pipe

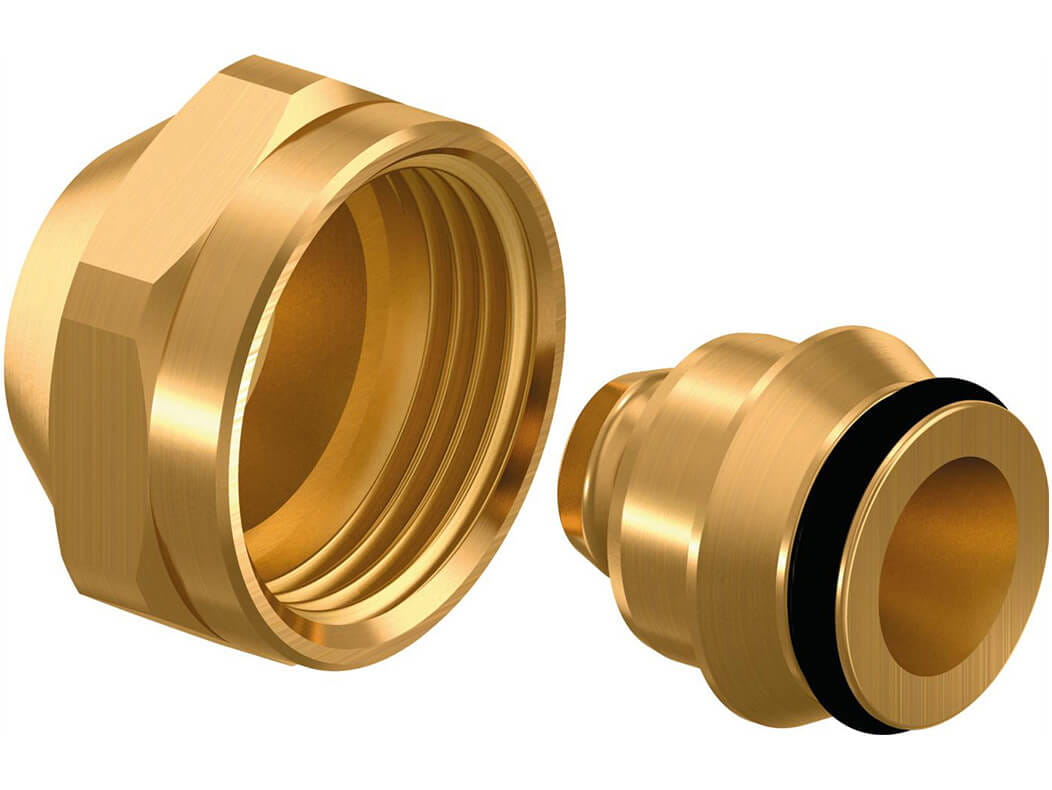

Uponor Vario compression adapter PEX

Uponor Multi bend support galvanized steel

Uponor room temperature controls

Uponor room temperature controls

Look up or download brochures for Fix underfloor heating

Uponor PE-Xa pipes and fittings

Uponor PE-Xa pipes and fittings

Installation manual

PDF 2 MB

Select Uponor underfloor heating and cooling wet installation system to suit your individual requirements

Underfloor heating systems in residential and commercial buildings which mainly require heating are often the first choice. And since the requirements for the design and function of an underfloor heating can differ very much, Uponor offers tailor-made solutions not only for new buildings, but also for renovation. To increase comfort, these systems can also be used to cool rooms.

Minitec wet installation

  • Direct laying possible on the existing top flooring, ideal for renovation
  • Efficient usage of regenerative energies also in old buildings

Tacker wet installation

  • Broad usage – from single-family houses through to large-scale commercial objects
  • Norm-compliant vertical and horizontal pipe position allows even screed covering

Tecto wet installation

  • Broad usage – from single-family houses through to large-scale commercial objects
  • Norm-compliant vertical and horizontal pipe position allows even screed covering

Comfort Air wet installation

  • Combined heating, cooling and ventilation system
  • Significantly increased comfort thanks to draught-free and silent heating, cooling and ventilation

Nubos wet installation

  • Only few optimally harmonised components
  • Nub panels for norm-compliant fixation of the pipes

Klett wet installation

  • Rapid laying without special tools
  • Reliable through long-year tried-and-tested Uponor quality

Classic wet installation

  • Free insulating material selection for a wide range of applications
  • Norm-compliant vertical and horizontal pipe position allows even screed covering


Magna

  • Optimal space utilisation without interfering system components
  • Economical through rapid amortisation and minimal maintenance costs


Meltaway

  • Reliable snow and ice elimination of exposed traffic surfaces
  • Utilisation of exhaust heat, for example from industrial production possible
