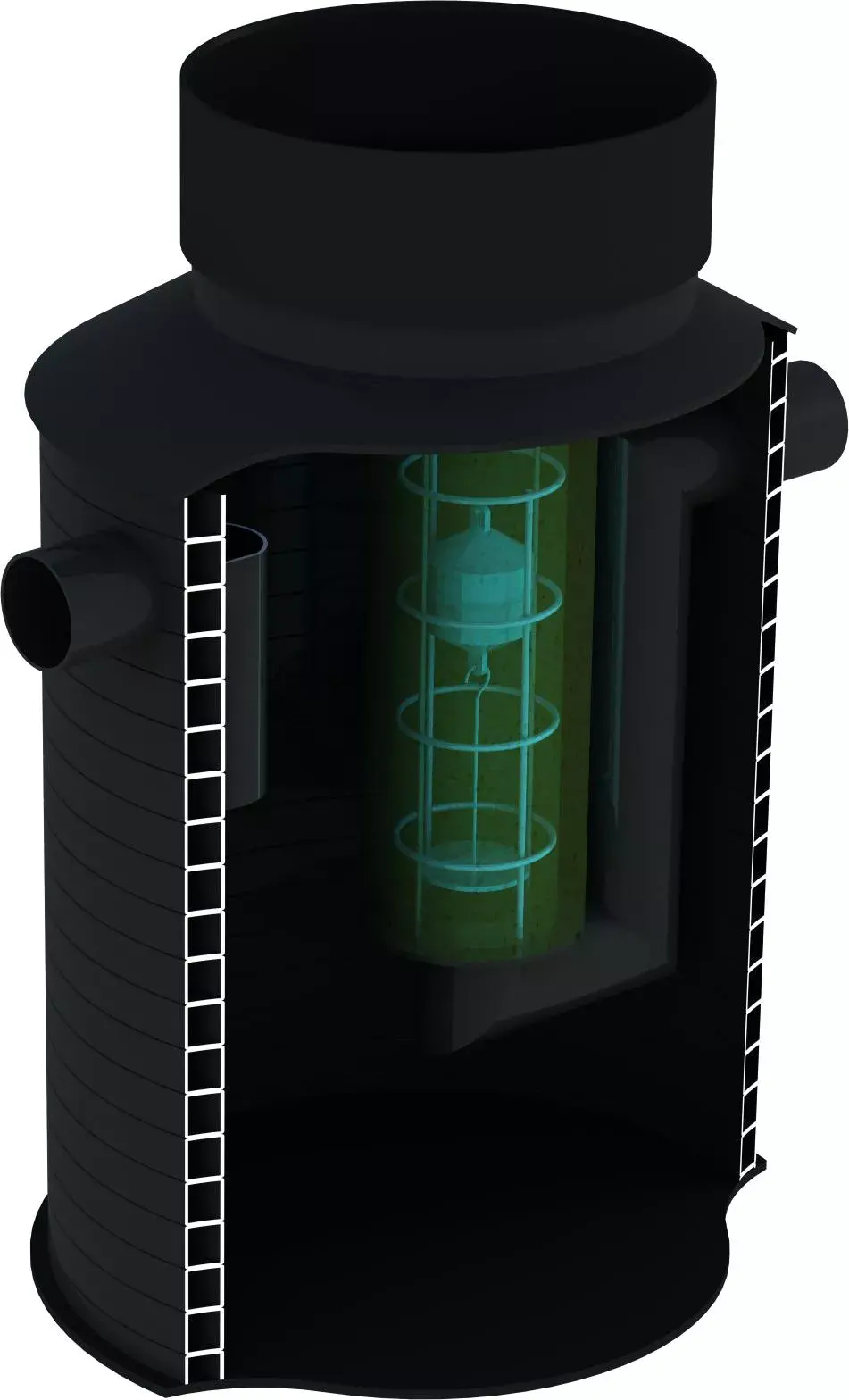

OLIE-/KOALESCENSUDSKILLER PE 200MM 20L/S, 2000L SANDFANG

OLIE-/KOALESCENSUDSKILLER PE 200MM 20L/S, 2000L SANDFANG
Varenr.1141778
Produktdatablad (pdf)

Detaljer

Teknisk data

VVS nr223295220
Vægt kg247 kg
Bredde mm1580 mm
Højde mm2635 mm
Måleenhed (UOM)stk

Dokumentation

2D Customer Drawings
202 B0000092226

Type drawing of Uponor Oil Separator PE-20-2 (PDF)

Ark/Løsblade
268 B0000089808

Technical Datasheet (EN) for oil separator PE-20-2

2D Customer Drawings
261 B0000090162

Uponor oil separator, all items 1141770-1141784 in the same image, mounting dimensions (EN)

Ydeevnedeklaration
102 B0000089815

Declaration of Performance (DoP) for Uponor Oil Separators

CAD
1 KB0000092196

CAD file

CAD file
