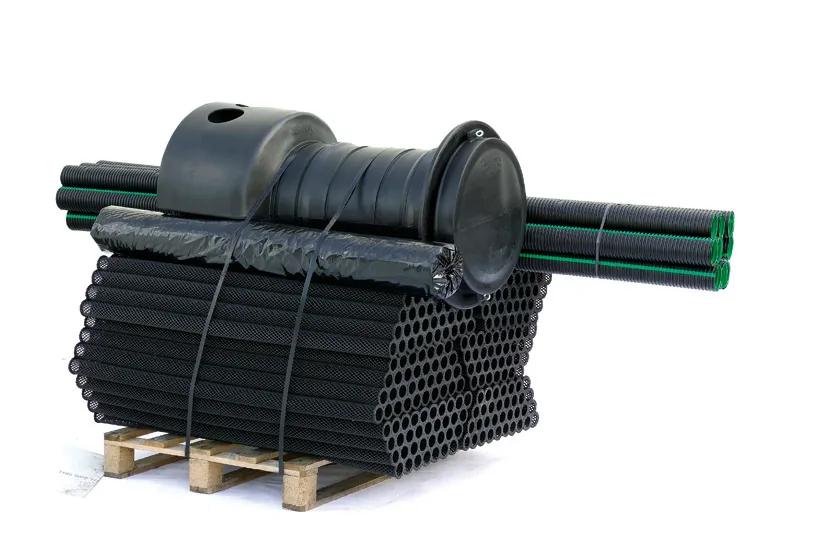

INFILTRATION MODUL PAKET 110 6PE BDT
Artikeldetaljer
Teknisk data
| RSK nr | 5619174 |
|---|---|
| Vikt | 62 kg |
| Bredd | 1200 mm |
| Höjd (mm) | 1400 mm |
| Artikel (måttenhet) | st |
Dokument
Teknisk Manual
CAD Drawings
2D Customer Drawings
164 B0000116392
Uponor module infiltration 1m3, typedrawing (EN)
CAD
593 B0000116325
Uponor module infiltration 1m3, typedrawing (EN)
Uponor module infiltration 1m3, typedrawing (EN)
CAD
592 B0000116324
Uponor modul infiltration 1m3, typedrawing (SE)
Uponor modul infiltration 1m3, typedrawing (SE)
CAD
868 B0000116323
Uponor infiltration system 1m3 holding tank 5,3m3, typedrawing (EN)
Uponor infiltration system 1m3 holding tank 5,3m3, typedrawing (EN)
