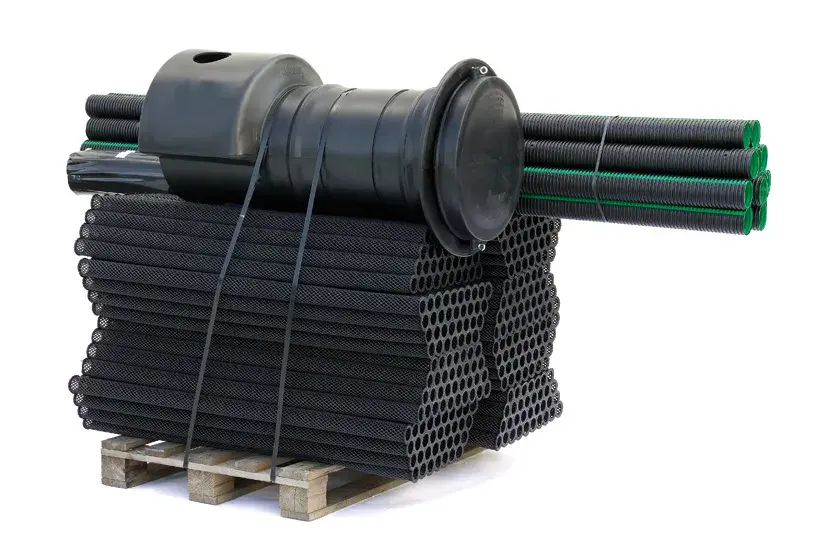

INFILTRATION MODUL PAKET 110 8PE BDT+KL
Artikeldetaljer
Teknisk data
| RSK nr | 5619175 |
|---|---|
| Vikt | 75 kg |
| Bredd | 1200 mm |
| Höjd (mm) | 1600 mm |
| Artikel (måttenhet) | st |
Dokument
Teknisk Manual
CAD Drawings
2D Customer Drawings
158 B0000116298
Uponor infiltrationsanlaggning med moduler2m3, typedrawing (SE)
CAD
686 B0000116400
Uponor modular sand filter system 2m3, typedrawing (EN)
Uponor modular sand filter system 2m3, typedrawing (EN)
CAD
532 B0000116399
Uponor modular infiltration system 2m3, typedrawing (EN)
Uponor modular infiltration system 2m3, typedrawing (EN)
CAD
686 B0000116398
Uponor modul infiltration 2m3, typedrawing (SE)
Uponor modul infiltration 2m3, typedrawing (SE)
